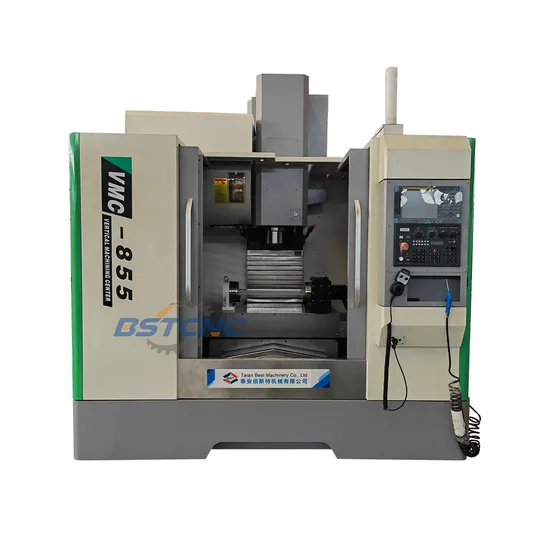

Vmc855 Vmc850 Three Axis 4th Axis CNC Turning Center CNC Milling Machine

Vmc855 Vmc850 Three Axis 4th Axis CNC Turning Center CNC Milling Machine

US$22,000.00-36,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMC855
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
System
Numerical Control
CNC
Processing Precision
+-0.015
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Product Name
CNC Milling Machine
Spindle Taper
Bt40-150
Table Size
1000X500mm
Max. Loading
600kg
Tool Changer
Taiwan 24t
Spindle Speed
8000rpm
Spindle Type
Belt
Transport Package
Wooden Case
Specification
25.9CBM
Trademark
BST
Origin
China
HS Code
8457101000
Production Capacity
300/Year

Packaging & Delivery

Package Size
440.00cm * 231.00cm * 255.00cm
Package Gross Weight
5600.000kg

Product Description

Product Description
VMC series is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
Product Parameters
Items VMC855 CNC MACHINING CENTER
Travel X axis 850mm
Y axis 550mm
Z axis 550mm
Spindle nose to table distance 100-650mm
Spindle nose to column 571mm
Feed max X rapid feed 32m/min
max Y rapid feed 32m/min
max Z rapid feed 32m/min
Cutting feed 1-10000mm/min
Torque X:15N.m Y:15 N.m Z:23N.m
Table Table size 1000×500mm
Max load 600Kg
T slot 5×18×90mm
Spindle Type Belt
Speed 8000 rpm
Spindle taper BT40
Main motor 7.5/11KW
Accuracy Accuracy (JIS) ±0.005/300mm
Repeatability (JIS) ±0.003mm
Other Weight 5200 Kgs
Machine Size 2600x2000x2200

Standard configuration: Optional :
-GSK218M/25i Control system; -Fanuc ,Siemens ,Mitsubishi,KND,HNC....
-Taiwan BT40-150-8000RPM spindle; -Chain chip conveyor ;
-Taiwan Arm Type Tool Changer 16T; -Spindle oil coolant;
-Taiwan Hiwin linear guideways and ball screw; -Taiwan TJR brand the 4th axis ;
-Three color alarm Lamp; -Renishaw tool setter TS27R ;
-Automatic Central Lubrication System and Cooling system; -Online measuring system OMP60;
- Full Enclosure Machine Guard; -Water out of the spindle center;
