Metal Heavy Duty CNC Milling Machine for Sale (BL-B850/1060/1580)
Basic Info.
Model NO.
BL-B850/1060/1580
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Transport Package
Wooden Case
Trademark
BLIN
Origin
China
HS Code
8457101000
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description

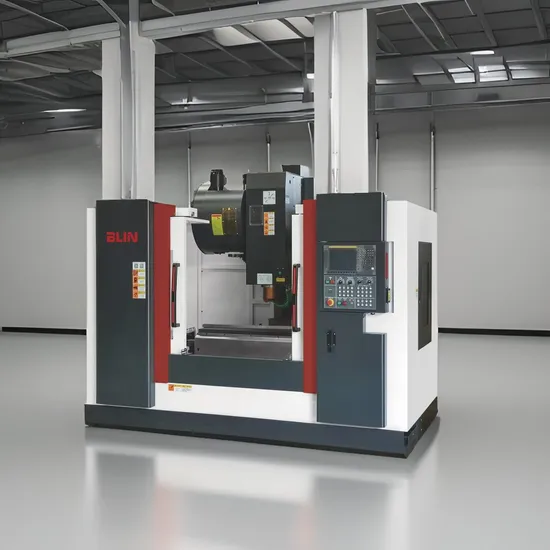

Metal heavy duty cnc milling machine for sale (BL-B850/1060/1580)- 3 axes adopt WIDE RECTANGLE BOX guideway, Heavy-duty type,suitable for heavy-duty cutting - Adopt CHINA top class cast iron - Use 24T Arm type ATC, fast and stable tool changing - 3 axes use TAIWAN C3 class precision ball screw - Adopt TAIWAN precise spindle unit Details:
| Item | Specification | Unit | BL-B850 | BL-B1060 | BL-B1580 |
| Guideway | X/Y/Z axes guideway type | / | HARD BOX | HARD BOX | HARD BOX |
| Worktable | Table size | mm | 1050×500 | 1300×600 | 1700×800 |
| Table max. loading | kg | 600 | 800 | 1500 | |
| T slot(NO./width/gap) | mm | 5/18/90 | 5/18/120 | 5/22/135 | |
| Travel | X/Y/Z axes | mm | 800/500/550 | 1000/600/600 | 1500/800/700 |
| Spindle | Distance from spindle nose to table surface | mm | 150~700 | 180~780 | 170~870 |
| Distance from spindle center to column surface | mm | 560 | 655 | 800 | |
| Spindle type | mm | BT40 | BT40/BT50(opt.) | BT50 | |
| Spindle motor | kw | 7.5/11(FANUC) 7(SIEMENS 828D) | 7.5/11(FANUC) 9(SIEMENS 828D) | 15/18.5(FANUC) 12(SIEMENS 828D) | |
| Spindle speed range | rpm | 8000(belt-drive) (opt.:10000/12000) | 8000(belt-drive) (opt.:10000/12000) | 7000 | |
| Feeding axes | Cutting feed speed | m/min | 10 | 10 | 10 |
| Fast moving speed | m/min | 20/20/20 | 20/20/20 | 20/20/20 | |
| Ball screw O.D./pitch | mm | Φ40/10 | Φ40/12 | Φ63/10(XY)/Φ50/10(Z) | |
| Precision | Positioning precision | mm | 0.012/0.010/0.012 | 0.015/0.012/0.012 | 0.028/0.018/0.020 |
| Repeatable positioning precision | mm | 0.008/0.006/0.008 | 0.010/0.008/0.008 | 0.018/0.010/0.013 | |
| Tool magazine | Tool magazine type | / | Umbrella type 20T/Arm type 24T | ||
| Max. tool weight | kg | 8 | 8 | 15 | |
| Max. tool length | mm | 300 | 300 | 350 | |
| Max. tool dia. | mm | Φ80 | Φ80 | Φ110 | |
| Others | Total power | KVA | 15 | 20 | 35 |
| Overall dimension(L×W×H) | mm | 2800×2300×3100 | 3200×2750×3200 | 4300×3750×3100 | |
| Gross weight/Net weight | kg | 6500/6000 | 8000/7500 | 13000/12500 | |
Main parts list:
| Parts | Brand |
| Bearings | JAPAN NSK/NTN |
| Ball screw | TAIWAN HIWIN/PMI |
| Spindle | TAIWAN |
| Servo motor& driver | GERMAN SIEMENS/JAPAN FANUC |
| Air-oil cylinder | TAIWAN |
| Lubrication pump | JAPAN HERG |
Standard configuration: - FANUC CNC Controller
- 24T ARM type tool magazine Optional configuration: - SIEMENS 828D CNC Controller
- 20T Umbrella type tool magazine
- Chip conveyor
- ZF reduction box Other models choice:
