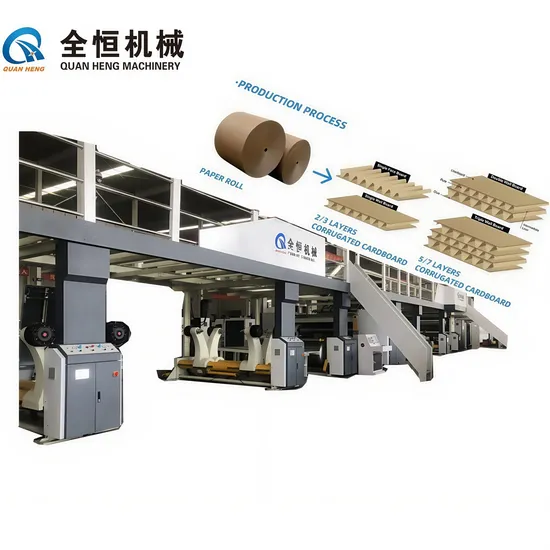

3 Layers Corrugated Cardboard Production Line Carton Packaging Box Making Machine
| US$185,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
QH-PACK
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Paper
Paper Thickness
Thin Paper
Speed
Client Requested(0-350m/Min)
Main Produced
3/5/7ply Corrugated Cardboard Production Line
Power
200kw
Width
1000-3100mm
Heating Type
Steam Heating
Transport Package
Container
Specification
1200-3100mm
Trademark
QH
Origin
China
HS Code
84413090
Production Capacity
40tons/Day
Product Description
Product Description| Model | Equipment name | QTY | Remark |
| YV5B | Hydraulic shaftless mill roll stand | 5 | Spindle ¢ 240mm, hyperbolic heavy rocker, expand chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle.Guide rail length 6000mm,use of plate weldingdouble track length 6000mm,Use in plate welding. |
| Paper trolley | 10 | ||
| RG-1-900 | Top paper preheat cylinder | 2 | roller ¢900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. |
| RG-1-900 | Core paper preheat cylinder | 2 | roller ¢900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. |
| SF-320C | Fingerless type single facer | 1 | Corrugated main roller ¢320mm,material with 52CrMo alloy steel,Tile roll modular group lifting transfer.Airbag ballasting structure,import main bearing,PLC automatic control glue,HMI touch screen,Breaks automatic parking relief,steam heating way. |
| SF-320C | Fingerless type single facer | 1 | Corrugated main roller ¢320mm,material with 52CrMo alloy steel,tungsten carbide,Tile roll modular group lifting transfer.Airbag ballasting structure,import main bearing,PLC automatic control glue,HMI touch screen,Breaks automatic parking relief,steam heating way. |
SF-320E | Multi-cassette positive pressure single facer | 1 | Corrugated main roller ¢320mm,spraying tungsten carbide dealing.electric trailer 10 minutes quick replacement tile roll,energy efficient synchronous belt rotation,with maintenance-free airbag pressure,independent glue unit,PLC automatic control glue,HMI touch screen,Breaks automatic parking relief. |
| MK | Tile roll quickly change Module | 1 | Tile roll diameter: 320mm, tungsten carbide processing module section includes: ends of the axle housing, bearings, steam components, suction box, pneumatic components assembly. |
| DY-C | Electric hydraulic quickly change trolley | 1 | Large capacity battery, power walking, hydraulic lift, centralized control. |
| RG-3-900 | Tripling preheater | 1 | roller ¢900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. |
| GM-20 | Double glue machine | 1 | Glue roller diameter 269mm.Each independent frequency motor drive, manual adjustment glue gap. |
| ZDF | heavy type conveyor bridge | 1 | 200mm main beam channels, independent inverter motor drive pull paper feed, adsorption tension.Electric correction. |
| SM-F | Double facer | 1 | Rack 360 mm GB channel,Chrome hot plate 600 mm *18 pieces,10pcs shoes pressure,The whole structure of the hot plate design.PLC automatic control press plate. Temperature display, frequency motor. |
| NC | NC thin blade slitter scorer | 1 | Tungsten alloy steel, five knives eight lines,zero-pressure line type. Schneider servo computer automatically discharge knife, suction outlet width automatically adjusted. |
| NC-150 | NC cutter helical knives | 1 | Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display. |
| DM-LM | computer gantry automatic stacking machine | 1 | Servo drive platform lifting, three section of frequency transport,automatic points stack discharge,Imported high-strength belt output, out paper side standard transport aircraft. |
| ZJZ | Glue station system | 1 | Customers -owned pipeline.Glue configuration is composed by carrier tank,main tank,storage tank,and send plastic pump,back plastic pump. |
| QU | Gas source system | 1 | Air pump,pipeline is prepared by the customers. |
| ZQ | Steam system | 1 | Steam system components used in all GB valves.Including rotary joint,upper and lower dispenser.traps,pressure table and so on.Customer-owned boilers and pipes. |
| DQ | Electrical control cabinet system | 1 | Electronic control system::fingerless single facer,driving part,NC thin blade slitter scorer,double facer,glue machine all adopt frequency motor,delta frequency control system.operation interface easy and convenient,Speed display control cabinet with each unit speed display, the unit call, emergency stop function. The main relays Schneider brand. |
