Kc259-225 Initial Yarn Twisting Machine Price for Yarn

Kc259-225 Initial Yarn Twisting Machine Price for Yarn

US$350.00
18-199 Spindles
US$250.00
200-499 Spindles
US$200.00
500+ Spindles

Basic Info.

Model NO.
KC259-225
Condition
New
After-sales Service
Provide
Spindle Gauge
225mm/Customized
Min. Spindles
18n, 288 Spindles Per Set Is Standard
Twist Range
35-1000t/M
Take-up Package
Max. 6kg
Traverse
190mm~270mm
Machine Structure
Double Sides, Single Layer, Thread Manually
Transport Package
Wooden Case
Specification
2048mm*1700mm
Trademark
KCGF
Origin
Zhejiang
HS Code
8445300000
Production Capacity
200 Sets Per Month

Product Description


Product Description

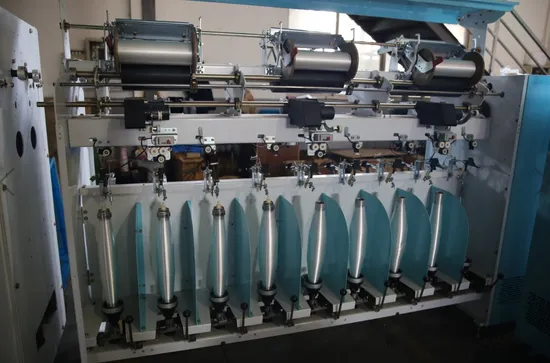

KC259-225 Initial Twisting Machine Yarn Twister Machine
Twister for initial twisting process
Working Principle
After the single-ply yarn is twisted on the two or three spindles by "S" direction. It is directly combined to wind on the same forming bobbin.

Product Parameters
KC259-225: make twisting of industrial yarns and carpet yarns;
Machine structure Double sides, single layer, thread manually
Twist direction S or Z
Twist range 35-1000T/M (need to be selected)
Rated power 26kw
Number of spindles 18n, 288 spindles/set is standard
Spindle drive Apron belt circulation drive
Spindle gauge 225mm

Traverse: 190mm-270mm (optional according to actual situation)
Winding speed: max. 120m/min ( according to the twist);
Start-up mode: frequency conversion slow start;
Take-up package: max. 6kg;
Spindle speed range: 2500-13000r/min (according to different yarns);
Spindle tensioner: ball type;
Winding motor: 1.1KW or 3KW;
After Sales Service
For demo machine set:
18 spindles/set+Machine head;
Wooden case packing;
*provide the spare parts;
*Gurantee: one year;
*Provide remote installation or door-to-door installation service;
*Provide after sales service;
*Welcome to visit our factory;
Certifications
ISO9001; ISO14001; ISO45001; CE;
Company Profile
Zhejiang Kaicheng lntelligent Machinery Co., Ltd. is a national high-tech enterprise dedicated to manufacturing intelligent winders and twisters, and also researching, developing automation control software for high-end textile machinery. Kaicheng insists on technological innovation as its core competitiveness of the enterprise. We focus on researches in the field of twisting and winding technology, and keep up with international level especially some famous brands from Europe. We are the best choice and replacement for European brands. Kaicheng products are being sold not only in China but are exported to Southeast Asia, West Asia and North-America, Central and South America, as well as Europe. Kaicheng has set up full set of advanced processing equipment and technology research centers to take its research activities. Moreover, Kaicheng has established long-term cooperation relations with Donghua University, Wuhan Textile University and other universities; "Modern Textile Machinery Research Institute" and "Postgraduate Training Base" was co-established by Zhejiang Kaicheng Intelligent Machinery Co., Ltd.& Zhejiang Sci-tech University in year of 2020.
