Wayne CNC Dual Spindle Power Turret Turn Mill Lathe Machine

Product Description

Product Description
Introducing our Precision Metal Cutting Horizontal Lathe with 210mm Swing for Automatic Use - a masterpiece of engineering from Liaocheng Wayne New Materials Co., Ltd. This remarkable series of machines is designed with a sleek, compact build that not only enhances its aesthetic appeal but also ensures it fits seamlessly into any workspace. The robust spindle is a powerhouse, generating substantial torque to handle even the most demanding tasks with ease. Its unparalleled rigidity guarantees stability and reliability, maintaining its exceptional accuracy over prolonged periods of operation. With high positional precision and efficient chip evacuation, this machine is your perfect partner for high-speed, high-precision machining applications. Whether it's the automatic processing of inner and outer cylindrical surfaces, cone surfaces, circular arc surfaces, or end faces, this lathe excels with agility and precision. Furthermore, its capacity to efficiently handle single and multiple threads across metric, inch, and various other standards showcases its versatility and efficiency, making it an indispensable tool in your manufacturing arsenal.
Detailed Photos
Product Parameters

SPECIFICATIONS	UNIT	CK6140
Max swingoverbed	mm	∅400
Max swingover cross slide	mm	∅180
Max processing length	mm	750/1000/1500
X/Zaxi;tra-1	mm	x:240 z:750/1000/1500
Spindle speed	rpm	L:70-560 H:200-1600
Spindle nose		C6
Spindle bore	mm	∅52
Spindle taper		MT6
Spindle motor	kw	5.5
Chuck size	mm	∅200
Ball screw dia and pitch		2505/4006
X/Zaxis feed motor torque	N.m	5/7.5
X/Zaxis rapid traverse	m/min	X:6 Z:8
X/Zaxis repeatabilty	mm	±0.005
Processing accuracy		IT6-IT7
Workpiece surface roughness		Ral.6
Tailstock sleeve dia	mm	∅65
Quill traverse	mm	140
Quill taper		MT4

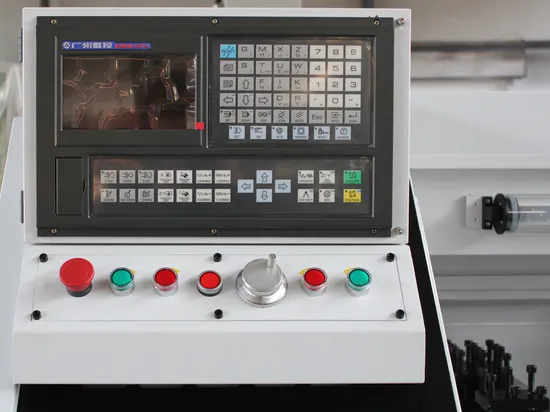

System		GSK
Tool postform		Electric six station
Voltage	v	3 PHASE 380V 50HZ
Machine dimension (L*W*H)	mm	2300*1500*1700
Gross weight	kg	1900

Product description:
1. Experience the synergy of sleek sheet metal design aesthetics and user-friendly operation, delivering an unparalleled user experience.
2. Crafted with meticulous attention, the bed frame utilizes premium resin sand and undergoes aging rail super audio quenching to deliver outstanding wear resistance.
3. An advanced rail laminating process not only enhances wear resistance but also significantly prolongs the lifespan of the equipment.
4. Engineered with precision, the high-precision rolling screw vice transmission features innovative three-point positioning double support, ensuring unmatched accuracy.
5. The centralized lubrication unit is expertly designed to provide comprehensive lubrication to all moving parts, dramatically extending the equipment's lifespan.
6. Versatile clamping options are available to accommodate a wide variety of operational requirements, offering flexibility like never before.
Fit Range
1. Masterfully capable of executing precise turning, whether it be cylindrical, taper, arc, externality, cut-through, boring, reaming, or crafting diverse screw threads.
2. Perfect for a spectrum of industries, including automotive and mobile parts, valves, electric tools, and hardware meters, all meticulously ensuring surface roughness adheres to the highest standards.
