Different Color Polyground Combination Rope 6X8 with Fiber Core and Steel Core

Product Description

Different Color Polyground Combination Rope 6X8 With Fiber Core and Steel Core
Part 1 :
Material: PP & polyester & nylon + steel wire
Construction : playground combination ropes are manufactured with 4 or 6 strand closed around a core which either can be
a fiber core(FC) or a steel core(IWRC)
The center of the strand is made up of extra galvanized steel wires to give excellent corrosion protection and
strength. The steel part is tightly covered with synthetic fibers/ yarns.
All combination ropes are preformed as standard.
Right hand regular lay - preformed.
Steel wire strands covered with fibers.
Galvanized.
Diameter : 20MM - 24MM
Packing : Coil packing & according to customer's request.
Colors: we can producescombination rope in any color. standard color are red,blue, yellow, green,beige and black.

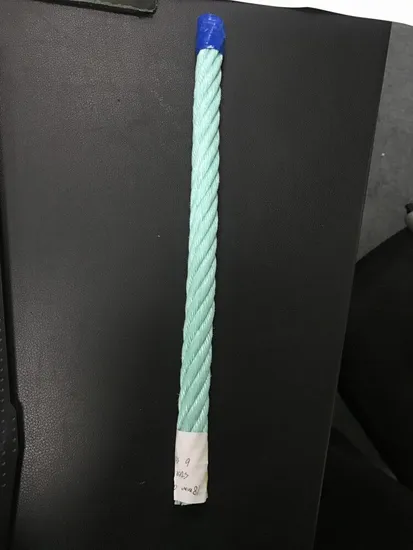

Rope picture:
Part 2 :
Application :
Kuralon Rope / Wire rope replacement polyground rope
climbing rope safety net & shipping
part 3 : Technical Parameters

PP Parameter Table
DIAMETER	CONSTRUCTION	STEEL STRAND DIAMETER	TKTEX	BREAKING STRENGTH
(MM)		(MM)		(TON)	(KN)
14	6 * 8	2	210	1.92	18.9
16	6 * 8	2.5	310	2.44	24
18	6 * 8	2.8	390	2.65	26
20	6 * 8	3	462	3.30	32.2
22	6 * 8	3.5	560	4.00	39.3
24	6 * 8	4.0	770	5.00	49.3
26	6 * 8	4.5	958	6.35	62.3
28	6 * 8	5.0	1160	7.83	76.8
30	6 * 8	5.0	1212	8.10	79.2
32	6 * 8	5.5	1440	9.50	93.2
34	6 * 8	5.5	1500	98.00	95.7
36	6 * 8	6.0	1720	10.00	98.5
40	6 * 8	6.0	1850	11.31	111
44	6 * 8	6.5	2205	13.30	130
Nylon Parameter Table
DIAMETER	CONSTRUCTION	STEEL STRAND DIAMETER	TKTEX	BREAKING STRENGTH
(MM)		(MM)		(TON)	(KN)
14	6 * 8	2	250	2	19.8
16	6 * 8	2.8	400	3.3	32.4
18	6 * 8	3	480	4.3	42.2
20	6 * 8	3.5	630	5.2	51
22	6 * 8	4	805	7.6	74.6
24	6 * 8	4.5	990	9.5	93.2
28	6 * 8	5	1280	13.1	128.5
