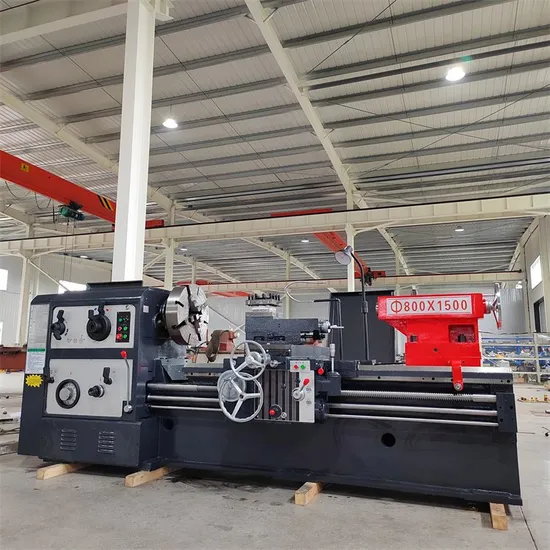

Newest Good Price Manual Lathe for Metal Manual Lathe Horizontal Lathe

Newest Good Price Manual Lathe for Metal Manual Lathe Horizontal Lathe

US$9,800.00
1-2 SET
US$9,500.00
3-4 SET
US$8,900.00
5+ SET

Basic Info.

Model NO.
CW6180
Type
Horizontal Lathe
Processing Accessory
Metals etc.
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Positions
Power Source
Electric
Controlling Mode
Electrical
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Max. Swing Over Bed
800mm
Max. Swing Over Carriage
520mm
Width of Guide Rail
400mm
Main Motor
11kw
Chuck
Manual Chunk
Spindle Bore
52mm
Tool Turret
4 Positions
Tailstock Diameter
75mm
Taper of Tailstock
Mt5
Max. Stroke of Tailstock
150
Size of Tool Shank
25*25mm
Machine Weight
8700kgs
Machine Size
1550*1630*1800mm
Transport Package
Metal Base with Plywood Case
Trademark
ROWDAI
Origin
China
HS Code
8458190000
Production Capacity
1000

Product Description

Product Description
CA6140/6240/6150/6250 Horizontal Manual Lathe Metal Turing Lathe Machine
These lathes are suitable for kinds of turning, such as internal and external cylindrical surface turning, cutting of various metric, Whitworth, module diametrical pitch threads as well as taper turning, facing, drilling broaching for oil grooves and keyways, etc. The workpiece produced on the machine can achieve the working accuracy of grade IT6-7 and surface roughness Ra 1.6um.
Gap-bed lathes are especially suitable for flat and odd workpieces.
Owing to increasing the bore of the spindle the lathes are more convenient to machining shaft parts and suitable for kinds of mechanical working shops.
Product Parameters
Specification Unit CA6140 CA6240 CA6150 CA6250
Max. swing over bed mm 400 400 500 500
Max. length of workpiece mm 650/750/900/1000/1400/1500/1900/2000
Max. Swing over carriage mm 210 210 300 300
Distance from spindle center to bed plane guide rail mm 205 205 250 250
Spindle Bore mm 52
Spindle taper Mohs 6 / A6
No. of longitudinal feed kind 64
Longitudinal feed range - normal mm/rev 0.08-1.59
Longitudinal feed range - fine mm/rev 0.028-0.054
Longitudinal feed rang - coarse mm/rev 1.71-6.33
No. of cross traverse feed kind 64
cross traverse feed - normal mm/rev 0.04-0.79
cross traverse feed - fine mm/rev 0.014-0.027
cross traverse feed - coarse mm/rev 0.86-3.16
Longitudinal rapid movement speed of tool post m/min 4
Rapid traverse speed of tool post m/min 2
Max. stroke of upper tool holder mm 140 140 140 140
Max. horizontal stroke of tool holder mm 320 320 320 420
Turret turntable rotation angle - ±90°
Size of tool shank mm 25×25
Vertical distance between center line of spindle and button of tool mm 26
Tailstock spindle diameter mm 75
Taper of tailstock spindle center hole - Mohs 5
Max. stroke of tailstock spindle mm 150
Screw pitch mm 12
Range of metric threads mm 44 kinds, 1-192
Range of Inch threads TPI 20 kinds, 2-24
Range of moudle threads mm 39 kinds,0.25-48
Range of diametral threads DP DP 37 kinds,1-96
Bed rail width mm 400
Bed rail hardness RC RC52
Main motor kW 7.5
Net weight(MM) 750 1990 2060
1000 2070 2140
1500 2220 2290
2000 2570 2640
Size(length*width*height)MM 750 2418*1000*1267 2418*1037*1312
1000 2668*1000*1267 2668*1037*1312
1500 3168*1000*1267 3168*1037*1312
2000 3668*1000*1267 3668*1037*1312

Detailed Photos

Packaging & Shipping
The lathe machine will be packed with a metal base and plywood case, suitable for all kinds of international transportation, such as by sea, air, etc.
Delivery time:7-15 days, fast to deliver
After Sales Service
1. The Operation Manual will be sent with the machine.
2. The spare parts will be provided freely during the warranty period.
3. The 24-hour online Service Team will help you solve the problems that you meet!
4. we also provide the after-service with video calls, videos, phone calls, online meetings, etc., to ensure you can use the machine better.
Related products
Company Profile
Henan Rowdai Machinery Equipment Co., LTD we are located in Zhengzhou city, Henan Province. We are specialized in the manufacture of CNC machine center, Lathe machine,CNC Lathe Machine, Milling Machine, CNC Milling Machine, Grinding Machine, Band Saw. Our products are widely used in the auto,mould,construction machinery, aviation, high speed railway and energy industry. We have our own share in many markets, and the products have been widely exported to Europe, America, Australia, Middle East, Southeast Asia, and Africa and so on.
Our workers are all have over 10 years working experience with Machine tools, we have professional inspector team, Focusing on addressing customers' needs, we aim at quality machines and perfect after-sales services to the customers.What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
FAQ
1:How can I choose the most suitable machines?A: Please tell me your specifications, we can choose the best model for you, or you choose the exact model. You can also send us the product drawing, we will choose the most suitable machines for you.2: What about the quality of the machine? And after-sales service?A: Our machine warranty period is 1-2 years, and we provide free technical service.3: What are your trade terms?A: EXW, FCA, FOB, CFR, CIF, DDP etc. are all acceptable.4: What are the Payment Terms?A: T/T, 30% initial payment when ordering, 70% balance payment before shipment;5: What's the MOQ?A: 1 set
