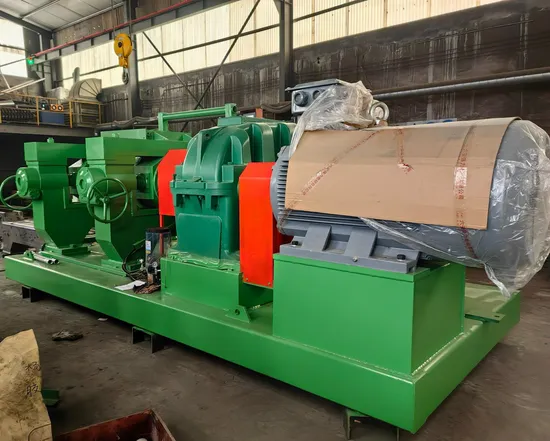

Automatic Xkp-560 Tire Cracker Mill Rubber Crusher Mill Rubber Powder Making Machine

Product Description

Product Description Introduction Rubber Cracker mill is used for the breaking process from used tire scape to rubber powder. It is used for waste tire recycling industry. Assistant Equipments: * Power assembly* Big conveyor belt: 8700mm*1000mm(3.0kw)* Big vibrating screen: 8800mm*1000mm (7.5kw)* Small vibrating screen: 2600mm*900mm(1.5Kw) , with 5 sets magnetic separators (0.75kw / set)* Small conveyor belt : 3800mm*700mm(1.5kw)* Wind-Induced system 1 set (4.75kw)
Main Feature: This kind of machine consists of seat, Rack, two rollers,motor,cooling system,heating system etc.
1.Rollers are made of chilled cast iron ,which are abrasion resistant with long service life.
2.Rear roller is equipped with distance adjustment device,easy operation and convenience,turn the turbine to adjust the distance.
3.Perfect emergency stop device can ensure the safety of personnel and equipment.
4.the seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
5.Human nature designed operating system reduces labor intensity.
6.This machine is used for breaking, plasticating and mixing of rubber materials. 7.The rollers are made of chilled cast iron or casted steel(surfacing hard alloy) with wear-resistant hard surface.
8.The two rollers are grooved.
9.The bored rolls can be cooled homogeneously through inputting steam and cooling water.10.The two rollers rotate reversely with different speed, so that rubber material can be processed. Product Parameters

Type	XKP-560	XKP-610	XKP-680	XKP-710
Grooved roller dia.	560mm	610mm	680mm	710mm
Smooth roller dia.	510mm	560mm	610mm	610mm
Working length of rollers	800mm	1000mm	1000mm	1100mm
Motor power	132KW/160KW	185KW/200KW	250KW	280KW
Speed reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer
Roller support type	Bearings	Bearings	Bearings	Bearings
Lubricating method	Grease pump automatic lubricating	Grease pump automatic lubricating	Grease pump automatic lubricating	Grease pump automatic lubricating
Machine weight	Around 20 ton	Around 25ton	Around 30ton	Around 32ton
Production capacity(24mesh)	Around 900kg/h	Around 1000kg-1300kg/h	Around 1200-1500kg/h	Around 1300-1600kg/h

Packaging & Shipping Company Profile Qingdao Libang Industry Products Co.,Ltd is a professional manufacturer of rubber machines for over 20 years.

Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, tire reclaim rubberr machine, butyl reclaim rubber machine, EPDM rerclaim rubber machine, rubber powder machine, rubber mixing production line,etc.

We enjoy good repuation with reasonable price, best quality and good delivery. And we sincerely welcome clients from home and abroad to establish long and steady business realtions and develop domestic and international market jointly on the base of equality and mutual benefits.

Our Main Products:
Rubber mixing equipment: Bale cutter, Kneader, Bucket elevator, Mixing mill Rubber vulcanizing machine: Four-column press, Frame press, Tire & tube press,etc Automatic & Semi-automatic waste tire recycling machine Rubber calender machine: 3 roll & 4 roll calender Rubber extruding machine: cold feed extruder & hot feed extruder Reclaimed rubber production line: Dynamic devulcanizer, Cracker mill, Rubber refiner,etc FAQ Q1. WHO ARE YOU?
A: We are Professional Provider of Rubber Machine in China for many years.
Q2. ARE YOU AN COMPREHENSIVE SUPPLIER FOR RUBBER&PLASTIC MACHINE?
A: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3. HOW ABOUT THE QUALITY CONTROL IN YOUR FACTORY?
A: We have the SOP (Standard Operation Procedure) and all the production steps must follow this SOP.
Q4. WHAT ABOUT THE AFTER-SERVICE? WILL YOU SEND YOUR ENGINEER TO MY COUNTRY TO HELP COMMISSION AND INSTALL THE MACHINE?
A: Surely, we have many experienced technical engineers for overseas service, they would help you install the machine and support training to workers.
Q5. WHAT IS THE DELIVERY TIME OF THE MACHINE?
A: Actually, the delivery time of the machines depends on the machine options. Normally, the delivery time of standard machines could be within 10-60 days.
Q6. WHAT IS THE WARRANTY OF THE MACHINE?
A: The whole machine's warranty period is 12 months and spare parts will be depended.
