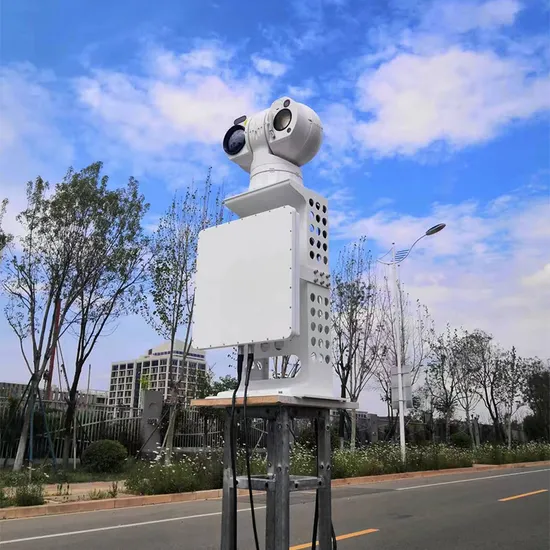

High-Performance PTZ Thermal Imaging Sentry and Radar Detector/Perimeter Intrusion Detection System

Product Description

Basic Information

Operating Frequency	24GHz
Directional scanning range	±45°
Pitch coverage range	15°
Maximum number of detectable targets	100
Operating distance	For personnel: ≥ 1km (maximum distance of 1.3km), for vehicles and ships: ≥ 2km (maximum distance of 2.4km)
minimum range	≤5m
Target speed range	0.5m/s~35m/s(1.8km/h~126km/h)
resolution ratio	Distance ≤ 5m; Azimuth angle ≤ 3.7 °; Speed ≤ 0.08m/s

Photoelectric load
High definition visible light

Operating distance	Under the conditions of visibility not less than 10km, air humidity not exceeding 60%, and normal temperature visibility, the detection distance for medium-sized vehicles (4.6m × 2.4m) shall not be less than 5000m, and the recognition distance shall not be less than 2000m; Detection of standing personnel (1.8m × 0.5m) shall not be less than 1500m, and identification shall not be less than 1200m
sensor	Back illuminated starlight grade CMOS
resolution ratio	1920×1080
illuminance	Color 0.01Lux, Black and White 0.001Lux
focal length	4.7mm~141mm, 30x optical zoom, 16x digital zoom
Video Coding	H.265/H.264/MJPEG, Support multiple streams
image processing	Support white balance, electronic shutter, backlight compensation, strong light suppression, digital noise reduction, electronic image stabilization, wide dynamic range, etc

Infrared thermal imaging

Operating distance	Under the conditions of visibility not less than 10km, air humidity not exceeding 60%, and normal temperature visibility, the detection distance for medium-sized vehicles (4.6m × 2.4m) shall not be less than 3600m, and the recognition distance shall not be less than 1200m; Detect standing personnel (1.8m × 0.5m) at a distance of not less than 1000m and identify them at a distance of not less than 600m
detector	Uncooled VOx infrared focal plane array
Array size	640×512
spectral range	8μm~14μm
NETD	40mK(@25ºC F1.0)
focal length	50mm, fixed focus, optional non thermal or electric focusing
field	8.8°×7.0°
Video Coding	H.265/H.264/MJPEG, Support multiple streams
image enhancement	SDE digital image enhancement technology, supporting 255 level thermal imaging image enhancement adjustment
Pseudo color polarity	16 types of pseudo color images, with two polarities of hot black/hot white
Image adjustment	AGC automatic gain control, brightness and contrast adjustment
Electronic magnification	12..0 ×~8.0 × continuous zoom (step size 0.1), supporting global eagle eye display

LED lighting

Laser type	New infrared GHT-III high-definition floodlight source with no speckle particles
illumination angle	3°~65°
Irradiation distance	300 meters (under clear weather)

Sound and light warning
Internally integrated high pitched speaker+flashing light, supports custom alarm sound, supports replacement of green laser glare
Optoelectronic gimbal

Speed	Horizontal: 0.01 °/s to 180 °/s; Pitch: 0.01 °/s to 120 °/s, supporting adaptive focus and rotation speed
Rotation angle	Horizontal: 360 ° continuous rotation; Pitch: -90 ° to+90 °
Structural materials	Quasi spherical design, integrated 5-window multi-channel, precision cast high-strength aluminum alloy material
Surface spraying	PTA three proof coating, corrosion-resistant
windshield wiper	5. Support intelligent automatic wipers
defrost	Visible light window defrosting

Packaging & Deliver

Package Size	≤20kg
Package Gross Weight	312mm×200mm×660mm

System working diagram overview
The intelligent unmanned sentry system detects suspicious targets through phased array radar and integrates the detected target information with the optoelectronic system for processing. Replacing the human eye with phased array radar/infrared thermal imaging and laser camera equipment, and replacing the human brain with intelligent algorithms and deep learning, has the characteristics of wide application, flexible deployment, stability and reliability, unmanned operation, high level of intelligence, and strong environmental adaptability. By combining satellite communication, fiber optic communication, and self-organizing network communication technologies, intelligent unmanned sentinels can achieve communication and networking. The system can be widely used for security prevention in key areas such as border defense, financial centers, prisons, oil fields, and nuclear, biological, and chemical bases.
The system deeply integrates composite detection modules such as phased array radar, infrared camera, laser camera, etc., fully utilizing the advantages of phased array radar/thermal imaging for large-scale search, multi-target monitoring, and all-weather work. With the clear and intuitive, precise tracking, and accurate recognition characteristics of laser camera, a new intelligent prevention system for border defense, key security and other areas is constructed through efficient linkage, multi-source information fusion, artificial intelligence algorithms, GIS situation display and control technologies.
main features
Based on phased array radar technology and optoelectronic monitoring technology,
the global reliable monitoring system uses phased array radar combined with intelligent optoelectronic devices to comprehensively monitor the area, locate and track moving targets within the area, continuously monitor target trajectories, and achieve reliable defense without blind spots worldwide.
All equipment in the system adopts high-quality standards and is not affected by weather. It can track and detect targets in the area 24/7, ensuring that the area is under control in any situation.
Linkage of various devices, control upon discovery
In the system, radar and electro-optical linkage work to overcome the shortcomings of individual use of each device, effectively detect and discover illegal targets, and carry out strikes. At the same time, communication equipment can transmit monitoring information in real time to the higher-level command center, achieving instantaneous linkage between reconnaissance and counterattack.
Modular design, easy installation and maintenance
The system adopts modular and miniaturized design for each functional device, and selects equipment according to actual functions. The equipment is lightweight, requires minimal installation work, and is easy to maintain.
system networking
In the application, multiple intelligent unmanned sentinels can be networked through different communication methods to transmit monitoring images back to the higher-level command center. At the same time, the higher-level command center can issue control commands to each intelligent unmanned sentinels according to their needs, achieving unified management of all intelligent unmanned sentinels.
The communication between various intelligent unmanned sentinels and higher-level command centers can be achieved through various communication methods such as satellite, fiber optic, self-organizing network microwave, etc. According to the actual situation, different communication methods can be combined and used:
In areas that are close to the command center and have the conditions for deploying fiber optic cables, fiber optic communication can be chosen;
For remote sites where fiber optic cables are not suitable for construction or the cost of deployment is high, network microwave communication can be chosen;
For individual and remote sites, satellite communication can be used to solve communication problems. Schematic diagram of communication mode of the system
