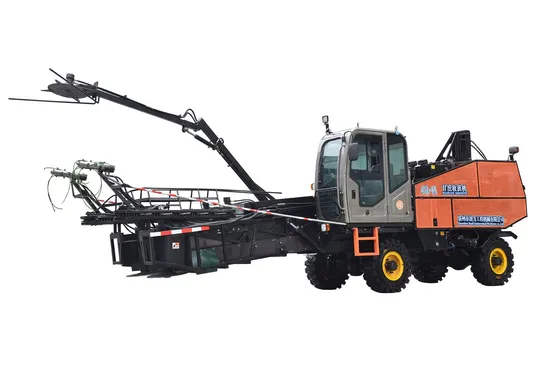

Jg-4gl-1 Wheel Sugarcane Harvester Excavator Machine
| US$75,000.00-80,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JG-4GL-1
Application
Sugarcane
Power Source
Hydraulic Turbine
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Whole Stalk Sugarcane Harvester
Certification
ISO9001:2008, CE
Color
Orange and Black
Condition
New
Application Field
Agriculture
Warranty
1 Year
Engine
Yn4e008-30cr4
Rated Power
74kw
Transport Package
Nude Packing
Specification
12700*2250*3000mm
Trademark
JingGong
Origin
China
HS Code
8433510090
Production Capacity
3000 Units/ Year
Packaging & Delivery
Package Size
1270.00cm * 225.00cm * 300.00cm
Package Gross Weight
9000.000kg
Product Description
This machine, especially designed for the harvesting of sugarcanes, is featured by compact design, small size and easy operation.
The sugarcane harvester cuts and collects sugarcanes in a high efficient fashion.
What's more, it achieves perfect cutting and does no harm to the sugarcanes of neighboring row, ensuring little crops loss and high
germination rate of next year. Generally, it works on sugar fields with a spacing of 0.85-1.3m and the expected collecting speed is 10-15 tons per hour.
| SPECIFICATIONS | ||||||||||
| TECHNICAL PARAMETERS | Engine | YN4E008-30CR4 | ||||||||
| Rated Power | 74KW | |||||||||
| Rated Speed | 2400r/min | |||||||||
| operation model | GPS,hydraulic guide control | |||||||||
| Undercarriage Style | Wheel Type | |||||||||
| (Length×Width×Height) | 12700*2250*3000mm | |||||||||
| Machine Weight | 9000KG | |||||||||
| Wheel base | 2600mm | |||||||||
| Track(front/rear) | 1580mm/1480mm | |||||||||
| Productivity | 3.0-4.5kg/s | |||||||||
| Total Loss of Combine(%) | ≤5 | |||||||||
| Breakage Rate(%) | ≤10 | |||||||||
| Dirt Percentage(%) | ≤2-3 | |||||||||
| Fqt Fuel Quantity | 17L/h | |||||||||
| Grade Climbing Ability | ≤18° | |||||||||
| Row Spacing for Harvest | ≥850mm | |||||||||
| Max. Walking Speed | ≥26km/h | |||||||||
| Hydraulic Tank Capacity | 230L | |||||||||
| Fuel Tank Capacity | 20L | |||||||||
Outstanding Properties:
1. This machine achieves quick and fast cutting of sugarcanes.
2. The sugarcane harvester collects the cut sugarcanes in an orderly manner.
3. Leaves on the sugarcanes will be cleaned by the harvest.
4. An automatic hydraulic control system provides stable working performance.
5. The intelligent security system effectively avoids damages and accidents resulted from overload.
6. High efficiency and excellent durability has been gained by the leaf peeling brush.
