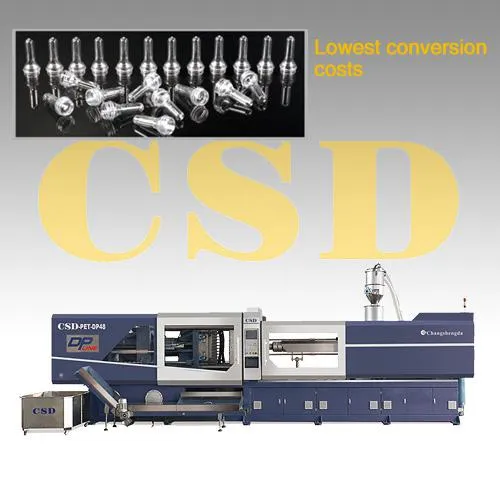

High Precision, High Capacity, Direct Pressure Pet Injection Molding Machine (CSD-PET-DP Series)

Product Description

Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) specializes in research and development in Injection Molding Machines for medical and food industry, PET two stage Automatic Stretch Blow Molding Machines, Automatic Extrusion Blow Molding Machines and various types of Plastic Moulds and other hi-tech products.
High Precision, High Capacity, Direct Pressure Pet Injection Molding Machine (CSD-PET-DP Series)
1) High speed: Nitrogen assisted injection system, injection rate of 380 cm3/s
2) Features: Direct pressure mold clamping system, the most stable mold clamping system
3) Environmental protection: No contact between 4 tie bars and moving template, lubricating oil free
4) Precise: Servo valve injection system, 100% accurate in repeated injection
5) Performance: Double differential circuit, mold clamping speed is increased
6) Energy-saving: Double closed-loop servo system
7) Control: European brand is applied in temperature control, temperature control ±0.5 degree centigrade.
8) Advantage:One station manufacturing for the preform mold and injection molding machine,
48 cavity production cycles reaches 12.5s.

CSD-DP SPECIFICATIONS OF CONVENTIONAL INJECTION MOLDING MACHINE
				CSD-PET-DP18		CSD-PET-DP26		CSD-PET-DP32		CSD-PET-DP48	CSD-PET-DP64	CSD-PET-DP72
INJECTION UNIT	SCREW DIAMETER		mm	55		60		70		82	95	110
	SCREW L/D RATIO		L/D	22		23		25		25	25	25
	SHOT VOLUME(THEORETICAL)		cm 3	570		762		1286		1848	2692	4616
	SHOT WEIGHT		g	655		876		1480		2125	3096	5309
	INJECTION PRESSURE		Mpa	167		163		175		175	162	158
	INJECTION RATE		g/s	320		320		300		300	280	250
	SCREW SPEED		rpm	0~200		0~200		0~180		0~180	0~160	0~150
	PLASTICIZING CAPACITY		g/s	35.3		52		72.5		103	151	190
CLAMPING UNIT	CLAMPING FORCE		KN	1700		2100		2500		3000	4200	5500
	OPEN STROKE		mm	660		720		770		820	700	750
	SPACE BETWEEN TIE BARS(W×H)		mm	480×480		540×540		600×600		690×690	750×820	940×870
	MOULD THICKNESS		mm	220~880		260~980		280~1050		430~1250	600~1500	600~1550
	EJECTOR FORCE		KN	50		60		70		85	130	160
	EJECTOR STROKE		mm	180		200		200		230	250	260
	EJECTOR NUMBER		n	9		13		13		13	13	13
OTHERS	HEATER POWER		KW	18		26		26		35	52	68
	PUMP MOTOR POWER		KW	33		50		55		64	93	114
	MAX PUMP PRESSURE		Mpa	16		16		16		16	16	16
	MACHINE DIMESION(L×W×H)		m	5.76×1.48×1.8		6.48×1.6×1.85		7.23×1.68×2.0		8.5×1.95×2.3	8.2×2.25×2.48	8.9×2.43×2.52
	MACHINE WEIGHT		t	6.6		8.5		12.5		16.8	19.8	22.3
	OIL BOX CAPACITY		L	600		700		800		900	1000	1100

About us Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) was established in 1992 with a registered capital of $5.2 million USD from Australian sole-ownership enterprises, and boasts a 72, 000 square meter factory zone. The company specializes in research and development in environmental protection, high-precision energy saving injection molding machines for medical and food industry, PET two stage automatic injection stretch blow molding machines, automatic extrusion blow molding machines and various types of plastic moulds and other hi-tech products. Its produce a wide range of goods such as food and beverages packing, plastic goods, pharmaceuticals packing, cleaning products, auto parts, toiletries, home appliances, construction materials, electronics, and so on. CSD's products achieved exceptional sales in South East Asia, the Americas, Eastern Europe, the Middle East, Europe and Africa. Currently the company is working in conjunction with ten of China's most famous brands. CSD's products have gained recognition both inside and outside China as a highly precise, energy-efficient and incredibly streamlined manufacturing company. CSD boasts a standardized and streamlined production and operations system which has received ISO9001 quality authentication. The company has also been giving the following honorary titles: "Provincial Hi-tech Enterprise R&D Centre", "Zhejiang Province Hi-tech Enterprise", "Zhejiang patent demonstration enterprise", among others. CSD's business ethic primarily focuses on three aspects - one, acting in good faith at all times; Two, making science and technology a priority; And three, thriving on producing superior quality products. The company makes use of advanced design concepts, sophisticated processing equipment and incredibly precise manufacturing methods to meet the needs of high-end clients both inside and outside China. CSD's products are continuously being innovated in a bib to ensure product quality and secure a reputable corporate image. The company also promotes the service commitment of one station service. The establishment of CSD after-sales centers all around the world not only demonstrates the company's dedication to thorough after-sales support, but also shows a commitment to providing excellent goods at reasonable prices to both new and existing clients. CSD's employees are driven towards pluralism, standardization and the industrialized development of new technologies, and the company is committed to being an industry leader in plastic goods manufacturing.
