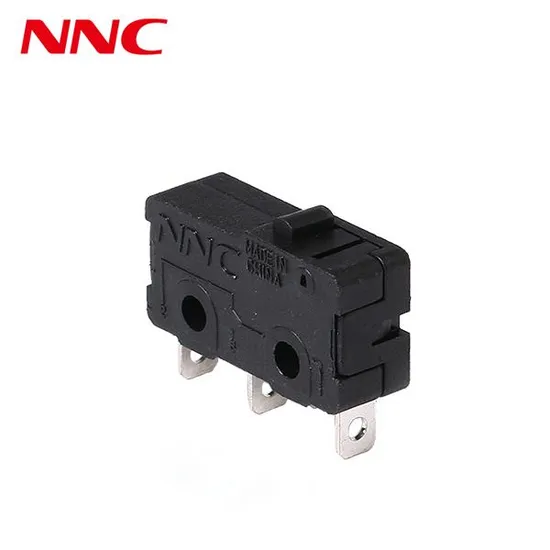

Pin Plunger Electrical Micro switch NL-5 NL-10 SPDT SPST
| US$0.139-0.52 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
NL-5
Protection
Dust-Proof
Size
Small-Sized
Environment
﹤250℃
Application
Microwave Oven
Brand
NNC
Certification
CE, ENEC,KC,CB,CQC
Contact Rating
5A 10A
Degree of Protection
IEC IP40
Certificate
UL,ENEC,KC,CB,CQC
Proof Tracking Index(Pti)
175
Protection Grade of Electric Shock
Cliass I
Transport Package
Carton
Specification
19.8mm*6.4mm*10.2mm
Trademark
NNC
Origin
China
HS Code
8536500090
Production Capacity
500000PCS/Week
Product Description
Specification
| Model | NL-5 | NL-10 | |||||
| Contact appearance | Rivet | ||||||
| Contact material | AgSnO2 | ||||||
| Contact gap(Standard value) | 0.5mm | ||||||
| Inrush current | NC | 15A Max. | 10A Max. | ||||
| NO | |||||||
| Min applicable load | DC5V 160mA | ||||||
| Operating speed | 0.1mm~1m/s | ||||||
| Permissible operating frequency | Mechanical:200 operations/min Electrical:30 operations/min | ||||||
| Contact resistance | 30mΩ max. (Initial value) | ||||||
| Insulation resistance | 100mΩ min.(at DC500V) | ||||||
| Dielectric strength | 1000V, 50/60Hz 1min between terminals of the same polarity | ||||||
| 1500V, 50/60Hz 1min between each terminal and no-current-carrying metal parts | |||||||
| 1500V, 50/60Hz 1min between current-carrying metal parts and ground | |||||||
| Degree of protection | IEC IP40 | ||||||
| Proof tracking index(PTI) | 175 | ||||||
| Protection grade of electric shock | Class I | ||||||
| Operating ambient | Temperature: -25°C ~ 125°C(with no icing or condensation) Humidity: 60% RH max. | ||||||
| Endurance | Mechanical: 1,000,000 operations min. Electrical: 50,000 operations min. | ||||||
Wiring Diagram
| Operation chatacteristics | NL-5(10) | NL-5(10)F1 | NL-5(10)F2 | NL-5(10)F3 | |
| Operating force | OF Max. | 0.8±0.3N | 1.5±0.4N | 2.3±0.4N | 3.2±0.5N |
| Releasing force | RF Min. | 0.15N | 0.35N | 0.55N | 0.55N |
| Pre-travel | PT Max. | 0.6mm | 0.6mm | 0.6mm | 0.6mm |
| Over-travel | OT Min. | 0.5mm | 0.5mm | 0.5mm | 0.5mm |
| Movement differential | MD Max. | 0.2mm | 0.2mm | 0.2mm | 0.2mm |
| Operating position | OP | 8.55±0.2N | |||
