Coal Mines Surveying Directional Sensor Instruments

Product Description

Product Description

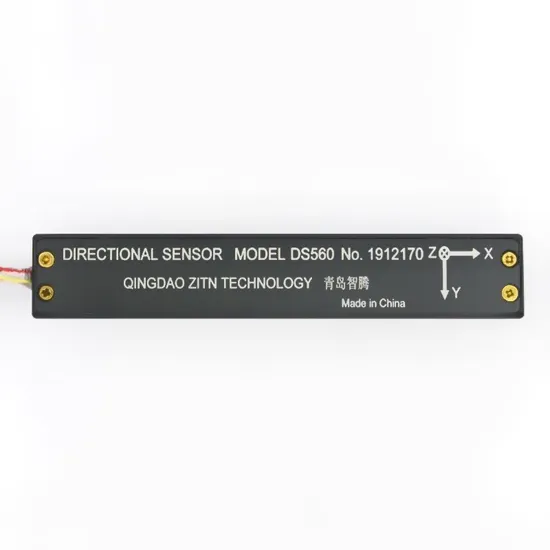

Miniature Directional Sensor DS560/ DS580 The DS560 directional module is designed to enable high accuracy measurement of the roll, axis alignment and azimuth orientation angles in borehole logging and drilling applications.
Using 4.9-12V DC voltage power supply and adopting UART asynchronous transmitter for digital transmission. It consists of 3-axis fluxgate magnetometers and 3-axis MEMS accelerometers.
The DS560 communicates with the outside world over a UART interface. It is compatible with TTL through logic level, and the baud rate is normally set at 9600~115200 to operate. The user can change baud rate by setting data bits in E2PROM. Logic level 5V(customization), data update rate once per second. Product Parameters

SN	Items		Value
1	Input Voltage Range		+5~+12V
2	Input Current		30mA
3	Temperature Range (temperature compensation)		-40ºC~135ºC
4	Inclination Range		0°~180°
5	Azimuth Range		0°~360°
6	Roll (Toolface) Range		0°~360°
7	Inclination (Drift)		±0.1°
8	Azimuth	Inclination≥5°	±2°
		Inclination≥10°	±1°
		Inclination=90°	±0.3°
9	Roll (Toolface)		±0.2°
10	Logic Level		TTL/CMOS(+5V)
11	Baud Rate		9600~115200
12	Leads		20"×4
13	Data output speed		16 Samples/sec(Baud rate is 115200)

Pin Name	Wire Color	Function
VIN	Red	+5~+12VDC
GND	Black	Ground
RX	Orange	Serial In
TX	Yellow	Serial Out

Product Details:Applications
Product applications
Borehole Deviation Measurement;
Wireline Logging;
Platform testing;
Electronic compass;
Drillied well measurement;
Geological surveying.
Telecom communication testing system etc...
High accuracy, cost-effective price, stable performance.
We're the trusted name in the orientation technology company.

Our Advantages
a. Experience in the hybrid thick film IC &high end sensors development and manufacture fields more than 18 years.
b. Invention patents more than 40 projects.
c. Scientific institution, production base more than 20000 square meters.
d. More than 40% of employees are from R&D team.
e. New cooperating customers more than1000 in recently 3 years.
f. Production capacity more than 100000/year;
g. Professional pre-sales, after-sales guide, solutions can be provided based on customers inquiries.
h. Customized Service.
Company Profile
ZITN is a national high-tech enterprise, it was established in 2002 by many high tech engineers who have vast experience in microelectronic Industry. With 19 years' development, ZITN became a recognized industry leader in China, and we have total 170 employees, more than 40% of them are from R&D team. We mainly design, develop and manufacture high accuracy inclinometer, quartz based accelerometers, inertial measurement unit systems, IF Circuit products and Nand flash memory which widely used for aerospace, oil and gas drilling, geological exploration fields.
FEEL FREE TO CONTACT US FOR MORE DETAILS!
Related Products
Packaging & Shipping
Customized anti-static box.Delivery via express (DHL, Fedex, UPS etc...)Delivery date within 7-10 days after the shipment from our factory.
FAQ
Q.What kind of service can you provide?
A: Except the stanadrd model, we also can provide the products accorded with customers' detailed requirments, such as calibration, repair, upgrade and customized etc...
Q.What kind of test of the product will be done before shipping?
A: We have a strict quality control system to guarantee the product performance, such as Non-magnetic turntable calibration system, Shock&Vibration test system, temperature cycle test system etc...
Q.Can I get a sample for evaluation?
A: Yes, we're willing to provide the sample for evaluation and guide you for any techical questions in the whole process.
Q.What's the delivery options can I choose?
A: We can provide the airline express delivery service , such as DHL/Fedex/TNT express, normally 7- 10 days for transportation needed.Q.Can I visit your company?
A: Yes, our company locate at Qingdao city, we have over 150 employees here, included the R&D, production, Financial, Marketing, etc...
