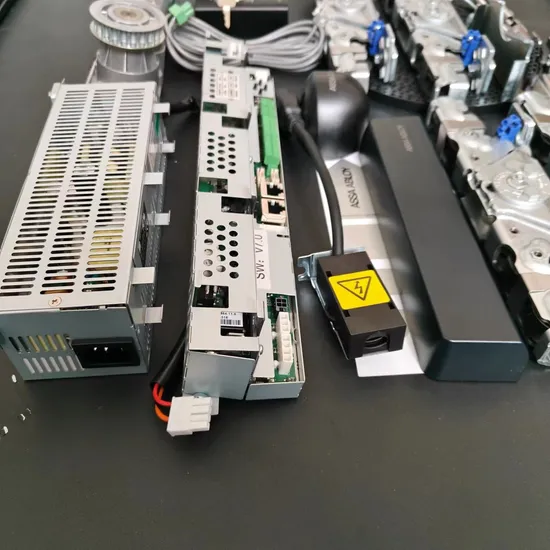

SL500 Automatic Sliding Glass Door Operator

Product Description

SL500 Standard Straight Sliding Automatic Door Operator(EN16005 standards)
SL500 Sliding Door Operator is an electromechanic sliding door operator suitable for internal and external doors. The operator is fully approved for all possible installation environments such as escape routes. It can be installed with single or double sliding doors with a max. clear opening width of 3000 mm and a max. weight of 240kg (single) and 200kg (double) per door leaf. Convenience,
The pre-programmed control system includes a variety of settings and functions to optimize the operation for your unique automatic entrance. The prolonged hold open time (HOT) is an adjustable setting to prevent the door from closing and directly start opening at high traffic situations. When two doors are operating in an "air lock", the interlock function prevents the second door to open until the first door is closed and can thereby save energy and prevent draft.The configurable settings for hold force in closed position, maximum openingand closing force are ideal to ensure proper operation also under tough and windy weather conditions.
Safety and Security,
SL500 is designed with safety and security in mind. Being available in three different safety versions, It comply with all major safety standards for a wide range of door applications including escape routes.The basic version of door system is applicable and compliant with e.g. EN16005 for all applications except escape routes. For escape routes, the system brings additional safety features such as redundant motor power supply and optional back-up batteries. To comply with specific national standards and regulations, It takes safety to the highest level.
Sectional View, Technical Datas

Performance Level	Single Open	Double Open
Gearmotor	Heavy Duty
Power Supply Input	100/240 Vac 50-60Hz
Power Supply Output	150 W
Carriage Assembly	4x Steel wheels per carriage
Clear passage	800-3000mm	1000-3000mm
Max. loading capacity per leaf.	240 kg	200 kg
Automation size	150 x 123 x L mm x (max 5760mm)
Number of opening cycles	Tested to 1,000,000 cycles (4,000 cycles per day)
Opening speed	Max. 1.7 m/sec
I/O Board	Optional
Emergency battery	12 / 24 Vdc Optional
Protection rating	IP20
Operating temtemperature	-20°C to +50°C
Accessories power output	24 Vdc 1A

Parts Identification,

No.	Description	No.	Description
1	Mains connection	11	Belt clamp
2	Power supply unit (PSU 50/PSU 75/PSU 150)	12	Tooth belt
3	Drive unit (NDD/HDD/DD)	13	Tension pulley
4	Main control unit (MCU/MCU-ER)	14	Door stop
5	I/O Unit (IOU)	15	Cover
6	Battery (EEU 12/EEU 24)	16	Operation mode selector
7	Door carriage	17	Support beam
8	Door adapter	18	Lock
9	Transmission bracket (high)	19	Cover lock
10	Transmission bracket (low)	20	Cable inlet
