Cost-Efficient RF Electron Tubes Triode RS3080cj for Enhanced Textile Production

Product Description

Company Profile
We, Beijing Jenerator Electronic Co., Ltd is a sincere leader supplying the electronic components/ power triode/ electron tubes, magnetron, etc. since 2006.
We have supplied our goods in 80+ countries and the quality is completey trusted!
Supplying high quality, reasonable price and good after-service are some of our concepts all of the time.
The technology is mature and parameter is so stable now.
Product Description

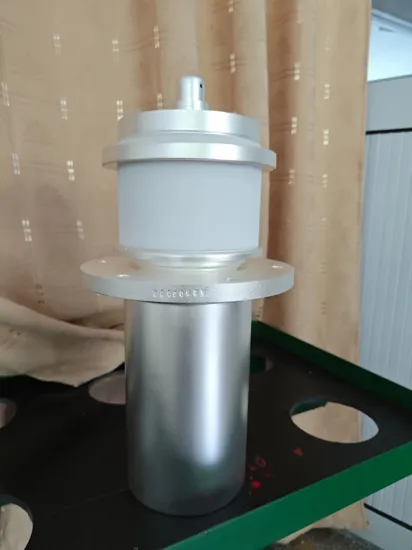

The RS3080CJ is a power high-power triode designed mainly for industrial RF heating applications. It is water-cooled, coaxial structure, ceramic-metal triode. Output power is 130kW. Max. anode dissipation power is 60kW and max. working frequency is 100MHz.
GENERAL CHARACTERISTICS
Electrical

Filament voltage	11 V
Filament current	205 A
Capacitances
grid-anode	46 pF
grid-cathode	106 pF
cathode-anode	3 pF
Amplification factor	19
Transconductance	60 mA/V
Max. Working frequency	100MHz

Mechanical

Operating position	Vertical
Weight	8.7 kg approx.
Height	391mm max.
Diameter	φ185mm max

Packaging & Shipping

Customers

4CX150F 4CX250B/FG 4CX300A 4CX350A/F
4CX1000A 4CX1500A/B 4CX3000A 4CX5000A
4CX10000D 4CX15000A 4CPX150K 6T51 7T62R
E3062 7T69RB 7T84RB 7T85RB 8T25RA 8T85RB
8T87RB 3CX800A7 3CX1500A7 3CX2500A3/F3/H3
3CX3000A1/A7/F1/F7 3CX4500F3(YU-108)
3CX6000A7(YU-148) 3CX10000A3/A7/H3
3CX15000A3/A7/H3 3CX20000H3 3CW30000H3
3CW40000H3 3CW45000H3
6T51 7T62R(E3062C) 8T25RA8T85RB 8T87RB
7T69RB 7T84RB 7T85RB 3CX800A7 3CX1500A7
3CX2500A3/F3/H33CX3000A3/F7/A7 3CX4500/F3
YU-108 3CX6000A7(YU-148) 3CX10000A3/F3/H3
3CX15000A3/F3/H3 3CX20000H3 3CW30000H3
33CW40000H3 3CX45000H3 BW1184J2 BW1185J2
BW1608F RS3060CJ RS3500C TH382 TH347 TH5-6
ITL5-1 TH6-3A
Microwave CW Magnetrons:
2450MHz 850W 950W 1000W 5KW 10KW,
915MHZ 5KW 30Kw,
At the same time, please be kindly to provide us your type needed, and then we can give you our similar products to replace it!
