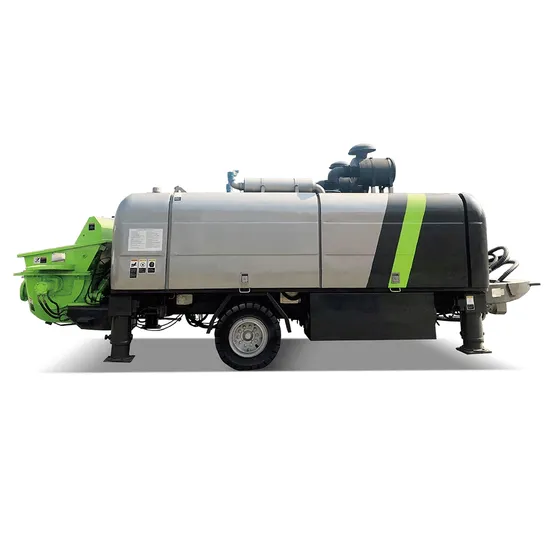

90 M3/H Output Hbt110.26.372RS Portable Trailer Diesel Concrete Pump Truck
Basic Info.
Model NO.
HBT110.26.372RS
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
90m²/h
Feeding Height
1410mm
Vibrating Amplitude
1.4mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Green
Maximum Theorical Output
112/73m3/H
Maximum Theorical Pressure on Concrete
160/260bar
Strokes/Minute
26.5/16.6min -1
Concrete Cylinder
800L
Filling Height
1410mm
Hydraulic System Type
Open
Power
2*186kw
Weight
13000kg
Transport Package
Comply with Export Packaging Requirements
Specification
7700*2430*2800mm
Trademark
Zoomlion
Origin
China
HS Code
8413400000
Production Capacity
50000
Packaging & Delivery
Package Size
770.00cm * 243.00cm * 280.00cm
Package Gross Weight
13000.000kg
Product Description
| Product Description |
90 m3/h Output HBT110.26.372RS
Portable Trailer Diesel Concrete Pump
MAIN DATA Maximum theorical output: 112/73 m3/h
Maximum theorical pressure on concrete: 160/260 bar
Power: 2×186 kW
FEATURE
Energy Saving
Self-adaptive variable power distribution control technology.High-Reliability: Key parts and components, after 100,000 m³ concrete assessment.
High-Reliability
Working condition adaptive pumping mode switch, the chance of pump block reduced by more than 50%.
| Product Parameters |
| Maximum theorical output | 112/73m3/h |
| Maximum theorical pressure on concrete | 160/260bar |
| Strokes/minute | 26.5/16.6Min -1 |
| Concrete cylinder(diameter*stroke) | Φ200mm*2100mm |
| Hopper capacity | 800L |
| Filling height | 1410mm |
| Maximum aggregate diameter | 50/Φ150mm |
| Inside diameter of delivering pipe | 40/Φ125mm |
| Inside diameter of pipe | Φ125/Φ150mm |
| Hydraulic system type | Open |
| Power | 2*186kW |
| Length*width*height | 7700mm*2430mm*2800mm |
| Weight | 13000kg |
