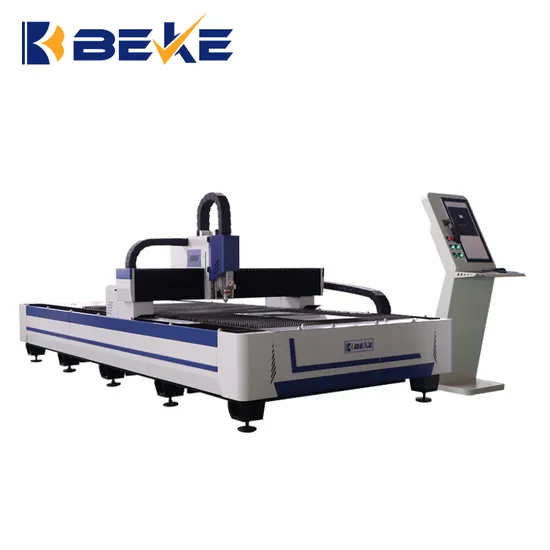

Beke 3015 Single Table 2000W Laser Cutting Machine for Metal
Basic Info.
Model NO.
BK-3015-2000W
Application
Agriculture Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Fiber Laser
Laser Technology
Fiber Laser Cutting
Laser Type
Fiber Laser
Cooling Method
Water-Cooling
Standard Output Power
2000W
Effective Cutting Range
3000mm*1500mm
Rated Power Consumption
2kw
Cuttable Material
Stainless Steel, Carbon Steel, Aluminum, Copper
Workbench Mechanical Precision
+/- 0.03mm/M
Repeatability
+/- 0.02mm/M
Laser Repetition Rate
Cw
Laser Wavelength
1070nm
Transport Package
Container Directly
Specification
4800*2200*1800
Trademark
BEKE
Origin
China
HS Code
8456110090
Production Capacity
50 Set/Month
Packaging & Delivery
Package Size
4800.00cm * 2200.00cm * 1800.00cm
Package Gross Weight
2800.000kg
Product Description
Product DescriptionProduct Parameters
| ITEMS | VALUE |
| Model | BK-2000W-3015 |
| Laser Type | Fiber Laser |
| Laser working medium | YVO4 |
| Laser wavelength | 1070nm |
| Rated output power | 2000W |
| Beam quality | <0.373mrad |
| Effective cutting range | 3000×1500mm |
| Axial positioning accuracy of workbench | ≤±0.03mm/m |
| Table repeat positioning accuracy | ±0.02mm |
| Maximum positioning speed | 120m/min |
| The maximum load of the workbench | ≥1500KG |
| Number of phases | 3 |
| Power supply rated voltage | 380V |
| Frequency | 50Hz |
| Overall power protection level | IP54 |
Main Configuration
| No. | Item | Model | Brand |
| 1 | Fiber laser cutting machine | BK-3015/2000W | BEKE technology |
| 2 | Cutting head | OSPR | China |
| 3 | Laser | MAX | Shenzhen, China |
| 4 | Servo drive and motor | Fuji | Taiwan/Shenzhen |
| 5 | Special CNC cutting system | BEKE customized | China |
| 6 | Laser specific chiller | Hanli/Tongfei | China |
| 7 | Pneumatic components | SMC | Taiwan, Japan, etc |
| 8 | Proximity switch, etc | Schneder | France/Japan/China |
| 9 | Precision rack | ROR | Germany |
| 10 | Reducer | Modori | France |
