M250y Hydraulic Precision Magnet Surface Grinder, Grinding Machine
| US$3,300.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M250
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Surface Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table
Magnet
Hydraulic
X Axis
Transport Package
Pallet
Specification
1800*1400*1980
Trademark
Hercules
Origin
China
HS Code
8460191000
Production Capacity
20000 Sets/Year
Product Description
Main Features:The machine can grind various planes and complex molding surfaces.
It is suitable for grinding without motorized feed.
The spindle adopts P4 precision rolling bearing and labyrinth seal.
It has good waterproof and dustproof performance, stable movement and high precision.
The ball steel guide rail is used longitudinally, the operation is light and flexible, and the column adopts a large-span guide rail, which has good rigidity and high stability.
The whole machine is manually lubricated by a manual oil pump.
Standard Accessories
1.Oil tank
2.Standard work magnetic disk
3.Electric magnetic chuck
4.wheel dresser
5.Wheel adoptor
6.Wheel equilibrium
7.Grinding wheel
8.Wheel equilibrium stalk
| Specification | unit | M200 | M250 |
| Table size | mm | 350×160 | 460×200 |
| Maximum grinding length | mm | 380 | 540 |
| Maximum grinding width | mm | 200 | 240 |
| Distance Spindle to table | mm | 445 | 475 |
| Maximum table bear the weight (including desk) | kgs | 100 | 150 |
| T-slot table | mm*N | 14*1 | |
| Table speed | m/min | 5-13 | 5-23 |
| Front and rear handwheel feed | mm | 0.02 | |
| Front and rear automatic feed | mm | 4 | |
| Front and rear fast-moving | mm | 0.1-8 | |
| Grinding size | mm | 820 | |
| Wheel size | mm | 950 | 980 |
| Spindle speed | R.pm | 200×(6-20)×31.75 | |
| The vertical structure | mm | 2850 | |
| The maximum amount of movement | mm | 3420 | |
| On the wheel infeed | mm | 980 | |
| Automatic feed rate | mm | 0.002 | 0.01/0.01/0.01/0.002 |
| Fast moving up and dowm volume | mm/min | 0.2 | 2/2/2/0.2 |
| Motor | |||
| Spindle motor | HP | 2*2 | |
| Vertical drive motor | HP | Servo 400w | 90w/6N.m servo 400w |
| Hydraulic motor | HP | 1.4 | |
| Vaccum motor | HP | 1/2*2 | |
| Motor flush | HP | 1/8*2 | |
| Backward driving motor | HP | 4N.m | 60w/60w/6N.m |
| Pack size | |||
| Net weight | kg | 890 | 1300 |
| Machine height | mm | 1645 | 1775 |
| Dimensions | mm | 1610×1120 | 1800×1400 |

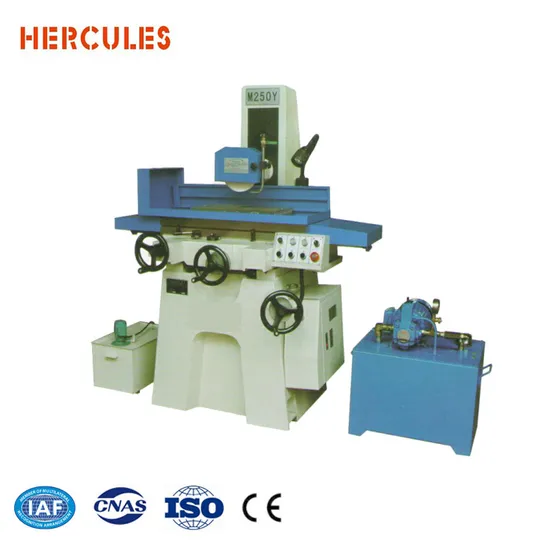

Machine Images
