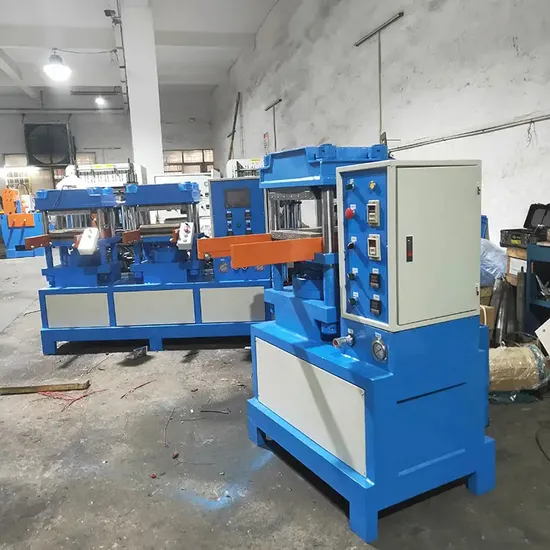

50 Tons Single Head Hydraulic Rubber Product Making Making Machinery
Basic Info.
Model NO.
YX-DJ50T-1
Automatic Grade
Semiautomatic
Structure
Vertical
Model No.
Yx-DJ50t-1
Maximum Pressure
50 Ton
Hot Plate Specification
350*350mm
Hot Plate Spacing
150mm
Cylinder Diameter
Cp150mm
Main Motor Power
3.75kw
Total Power
11kw
Temperature Range
Normal Temperature to -350ºC
Power Suppliy
380V / 50Hz
Transport Package
Polywood Case
Specification
1000*1300*1500mm
Trademark
Yunxin
Origin
China
HS Code
8477590000
Production Capacity
20sets/Month
Product Description
YX-DJ50T-1 Touch Screen Vulcanizing Machine Specifications
1. Device model: JY-DJ50T-1
2. Power supply specification: three-car four-wire 380V
3. Total power :11KW
4. Motor power :3.75KW
5. Work surface :350*350mm
6. Maximum temperature: room temperature ~350ºC
7. Main cylinder diameter: 180mm
8. Main cylinder stroke: 160mm
9. Machine weight: ≈1000KG
10. Machine weight: ≈1400*1200*1500mm
Our company has turned from initiatively a small processing plant to a huge integrated high - tech entity . Mass production ,
assembly line operation and outstanding sales performance enable our customers to enjoy comprehensive quality and technical
support . Yunxin staff adhere to the policy of " enterprising , realistic , rigorous unity ", and constantly develop and innovate .
With technology as the core , quality as the first , and users as the supreme , Yunxin staff will wholeheartedly provide you with
high - quality service , high - quality equipment , and work hand in hand for common prosperity and win - win cooperation .
