1212 Mini Round 1kgs/10n Holding Force DC 12V 24V Lifting Electromagnet
Basic Info.
Model NO.
JSP-1212
Shape
Round
Color
Silver
MOQ
2PCS
Material
Carbon Steel
Coating
Zn Coating
Working Temperature
-30ºC to 80ºC
Insulation& Protection Class
B Class. IP 65(Option)
Work Type
Energized to Hold
Transport Package
Brown Box/Pallet
Specification
JSP Serial
Trademark
JINSUN
Origin
China
HS Code
8505909090
Production Capacity
1000PCS / Day
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.500kg
Product Description
| PRODUCT FEATURES |

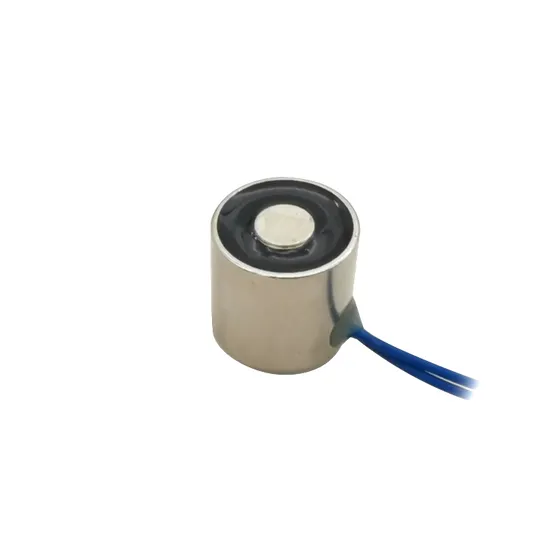

JSP-1212 Mini Round 1Kgs/10N Holding Force Dc 12v 24v Lifting Electromagnet
- Size: D12 x 12mm
- Power: 12V or 24VDC, 1.0W
- Holding force> 1kgs,
- Duty cycle: 100%
- Engerized to hold and release when power off
- Electroplating anti-corrosive
- Epoxy filled Waterproof
- Different models are available, holding force: 1kgs - 200kgs.
- Application: electronic machine, printing machines, robot arm,
vending Machine,storage cabinet, sharing bicycle,subway gate etc.
- 20 years of design and produce experience
- OEM/ODM is welcomed
| TECHINCAL DATA |
| Products Data Sheet | |||
| Product name: | Electromagnet | Insulation Class: | B |
| Model: | JSP-1212-12V | Hi-Pot test: | AC750V/2S |
| Size: | Ø12 x H12 | Service Life: | >500 Thousand |
| Force: | 1Kg/10N | Lead time: | 3~5 days if have stock |
| Voltage: | DC 12V/24V | Sample Order: | Acceptable |
| Power: | 1 W | MOQ: | 2 PCS |
| Duty Cycle: | 100% | Warranty: | 2 Year |
| Lead Wire: | Side out 25cm or customized | Origin: | Ningbo, Zhejiang |
| Action Form: | Energise to hold | Surface: | Electroplating(Zn Coating) |
| Install Thread size: | M3 x H6 | Material: | steel & enameled wire |
| N.W.: | 6 g | Certificate: | CE/ROHS |
| PRODUCT PHOTOS |
| PRODUCT DRAWING |
Customized design is welcomed.
| PRODUCT SERIES |
| Model | Size | Install Thread | Power | Install | Min thickness of contact plate | Weight |
| JSP-0820 | Ø8*20 | 3 N | 1.6 W | _ | 1 | 6.5 g |
| JSP-1010 | Ø10*10 | 3 N | 1 W | M2_4 | 1 | 6 g |
| JSP-1025 | Ø10*25 | 8 N | 1.6 W | _ | 1 | 12 g |
| JSP-1212 | Ø12*12 | 10 N | 1 W | M3_6 | 1 | 8 g |
| JSP-1327 | Ø13*27 | 15 N | 1.6 W | _ | 1 | 8 g |
| JSP-1515 | Ø15*15 | 20 N | 1.4 W | M4_6 | 2 | 12 g |
| JSP-1625 | Ø16*25 | 30 N | 1.7 W | M4_8 | 1.5 | 27.5 g |
| JSP-1811 | Ø18*11 | 45 N | 1.4 W | M3_6 | 2 | 16 g |
| JSP-2012 | Ø20*12 | 35 N | 1.4 W | M3_5 | 1.8 | 22 g |
| JSP-2015 | Ø20*15 | 50 N | 1.8 W | M3_5 | 2 | 28 g |
| JSP-2020 | Ø20*20 | 40 N | 1.6 W | M4_6 | 2.5 | 37 g |
| JSP-2025 | Ø20*25 | 50 N | 2.4 W | M4_6 | 2.5 | 37 g |
| JSP-2520 | Ø25*20 | 140 N | 3.6 W | M4_6 | 2.5 | 58 g |
| JSP-2525 | Ø25*25 | 100 N | 2.4 W | M6 | 2.5 | 71.5 g |
| JSP-3022 | Ø30*22 | 200 N | 4.3 W | M4_8 | 3 | 92 g |
| JSP-3025 | Ø30*25 | 250 N | 4.3 W | M6_12 | 3 | 110 g |
| JSP-3219 | Ø32*19 | 250 N | 3.6 W | M6_12 | 3 | 95 g |
| JSP-3229 | Ø32*29 | 150 N | 2.4 W | M6_ | 3.5 | 168 g |
| JSP-3231 | Ø32*31 | 200 N | 9.6 W | M6_15 | 2.8 | 136 g |
| JSP-3425 | Ø34*25 | 250 N | 9.6 W | M6_ | 3 | 126 g |
| JSP-3530 | Ø35*30 | 300 N | 4.8 W | M6_10 | 3.5 | 170 g |
| JSP-4026 | Ø40*26 | 300 N | 5.6 W | M5_10 | 5 | 194 g |
| JSP-4040 | Ø40*40 | 400 N | 4.8 W | M6_12 | 5 | 300 g |
| JSP-4530 | Ø45*30 | 450 N | 4.8 W | M6_12 | 5 | 287 g |
| JSP-4542 | Ø45*42 | 500 N | 5.8 W | M6_12 | 5 | 360 g |
| JSP-5030 | Ø50*30 | 700 N | 6 W | M5_10 | 6 | 331 g |
| JSP-5050 | Ø50*50 | 700 N | 9.6 W | M8_15 | 5 | 580 g |
| JSP-5227 | Ø52*27 | 600 N | 5 W | 2-M5_5 | 5 | 337 g |
| JSP-6037 | Ø60*37 | 800 N | 14.4 W | M8_8 | 7 | 650 g |
| JSP-6060 | Ø60*60 | 1000 N | 17.1 W | M6_12 | 6 | 1000 g |
| JSP-6330 | Ø63*30 | 1000 N | 9.6 W | M8_ | 8 | 550 g |
| JSP-7035 | Ø70*35 | 2000 N | 12 W | M8_12 | 10 | 800 g |
| JSP-7045 | Ø70*45 | 1800 N | 15 W | M8_16 | 10 | 1000 g |
| JSP-7060 | Ø70*60 | 1400 N | 21.3 W | M8_12 | 8 | 1360 g |
| JSP-8038 | Ø80*38 | 2200 N | 15 W | M8_16 | 10 | 1120 g |
| JSP-8055 | Ø80*55 | 2500 N | 14.4 W | M8_16 | 12 | 1620 g |
| JSP-8060 | Ø80*60 | 2400 N | 23.5 W | M10_20 | 10 | 1780 g |
| JSP-9060 | Ø90*60 | 3000 N | 14.4 W | M10_20 | 12 | 2250 g |
| JSP-10043 | Ø100*43 | 3200 N | 21 W | M10_20 | 15 | 2000 g |
| JSP-10060 | Ø100*60 | 3600 N | 38 W | M12_20 | 12 | 2780 g |
| JSP-12060 | Ø120*60 | 4000 N | 41.3 W | M12_20 | 15 | 4300 g |
| JSP-15056 | Ø150*56 | 9300 N | 37 W | M16_24 | 25 | 5800 g |
| JSP-18063 | Ø180*63 | 15000 N | 50 W | M24_36 | 30 | 9500 g |
| JSP-25080 | Ø250*80 | 30000 N | 90 W | M24_48 | 40 | 23000 g |
| JSP-275110 | Ø275*110 | 40000 N | 140 W | M24_40 | 50 | 38000 g |
| FIVE STAR REVIEW |
| CERTIFICATE |
| OUR WORKSHOP |
| COOPERATION CLIENTS |
| WIDELY APPLICATOIN |
FAQ:
Q: Are you trading company or manufacturer? And where is your factory located?
A: We are factory. Our factory is located in Ningbo City, 2 hours from Shanghai Airport by car.
Q: Do you have CE approved?
A: Yes, we have CE and ROHS certificate
Q: How to choose a suitable electromagnet quickly?
A: Please provided us following parameters:
Act form: energized to hold or energized to release?
Holding force(Kg/N)?
Shape (circular or rectangular),
Dimension limited (diameter and height).
Duty cycle,
Cable length and connector,
Waterproof? Yes/No need
Residual force(Kg/N)?
-------------------------------
For example: You can say I want purchase electromagnet as below:
Circular holding electromagnet,
Action Form: Energized to hold
Force: 5Kg/50N
Size: Ø20 x H15
Voltage: DC 12V
Power: 1.8 W
Duty Cycle: 100%
Lead Wire: side out 25cm, no need connector.
Waterproof: Yes.
Install Thread size: M3
---------------------------------------
Q: How long is your delivery time?
A: Samples ready for delivery in 3 days if the goods are in stock, or in 7-10 days for for customized product. It is according to quantity.
Normally, you will get our samples in 7-10 days after payment.
Q: Can you customized electromagnet?
A: Yes, you are welcome.
Q: Can I print my Brand/Logo on the product?
A: Yes, free of charge.
We are looking forward to your inquiry.
