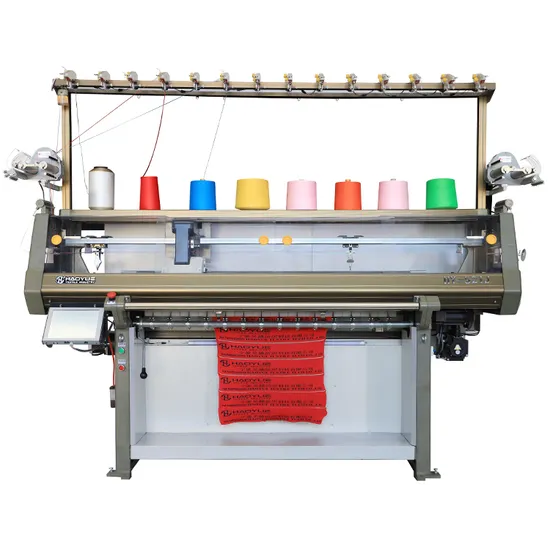

Computerized Professional Fully Jacuard Single System Knitting Machine Hy-421j

Product Description

Product Description

NINGBO HAOYUE PROFESSIONAL FULLY JACQUARD COLLAR KNITTING MACHINE Specially designed for knitting collar and rib; through the extreme requirements in straightness, flatness and precision of machine parts such as bed- base, guide rail, needle-bed, cam-board and cams. We solved these problems that fabric lines grain is not clear, two edges of collar are different and flatness is not enough.This series with milling type needle bed. This series adopts digital technology, which can realize the functions of transfer, tuck, hole picking, jacquard, needle narrowing, and other regular pattern knitting functions of the flat knitting machine. This series can weave basic knitting patterns (full needle, single side, Etc.), multi-color irregular jacquard, and twisted weft knitting. This series is suitable for knitting collar and clothing accessories. This series used DAHAO control system.

DOUBLE CARRIAGES FULLY JACQUARD COLLAR KNITTING MACHINE
Single carriage without transfer	Single carriage with transfer

DAHAO CONTROL SYSTEM The machine system can be customized according to your requirements.

DAHAO CONTROL SYSTEM The machine system can be customized according to your requirements.

DAHAO CONTROL SYSTEM The machine system can be customized according to your requirements.

SINGLE CARRIAGE Linear velocity of the head can reach 1.6m/s. Each system is equipped with five functions as rib transfer, weaving, non-weave and pin. In addition, it is secured by short-circuited electromagnetism, motor overcurrent. Locked-Rotor, etc...

NEEDLE BED Insert part fits with the needle are made of imported steel through fine blanking and grinding, which reduces the wear and tear of the stitches, decreases the resistance of the stitches, and effectively improves the knitting efficiency.

DOUBLE CARRIAGE Linear velocity of the head can reach 1.6m/s. Each system is equipped with five functions as rib transfer, weaving, hangging head, non-weave and pin. Can work separately or in combination with double system.

YARN GUIDE RAIL 4/3 pcs yarn guide rail, can 8/6 yarns can be used by any weaving system and can be switched at any position.

SERVO MOTOR Using cani control, can achieve the rapid return and direction changing of the machine carriage, accurate positioning, smooth conmutation .

8/6 PCS YARN FEEDER The 8/6 yarns can be switched at any position. According to different knitting speed the control program can automatically adjust the position.

AUTOMATIC RESET PROBE Automatic reset function, which ensures any deviation of the probe can be reset automatically regardless of the area.

POSITIVE YARN FEEDER Positive yarn providing, successfully reduce yarn resistance, increase knitting efficiency.

LYCRAYARN DEVICE In order to make the machine work better, we have developed 24-hours intelligent system for automatic refueling.

Machine Paramenters

Gauge	12G,14G,16G,18G
Knitting width	36,42,52,60,68, 80,100inch
Knitting system	Single carriage Double carriage
Knitting speed	Maximum 1.6m/s. (depending on knitting wide and knitting material)
Knitting function	Fully jacquard, Knitting, line jacquard and plain design etc.
Needle-bed	Milling type needle bed; Insert type needle bed(optional) , with 8 sets of solenoid needle selection structure.
Racking	Controlled by servo-motor racking within 2 inches and with fine adjusting function.
Stitch density	Controlled by stepping motor, 32 section stitch select-able adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
Take-down system	Infrared alarm,Computer programs instruction, stepper motor control,32-stagetension selection with an adjustable range between 0-100.
Color-changing system	2×3 yarn feeders on each side of 3 guide rails, shift able on any needle position.
Protection system	The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device.
Control system	1. LCD industrial display, Can display various parameters, which can be adjustable during operation. 2. USB memory interface,System memory 2G. 3. Free design system is visual and easy to understand and software upgrade free of charge. 4. Support multi-language operation as Chinese and English, Spanish, Russian etc.
Network function	Has network interface,enable remote-monitoring via network,and connecting with ERP system.
Power supply	Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop.
Volume and weight	2200*900*1700mm,600kgs(42inch) 2400*900*1700mm,650kgs(52inch) 3500*900*1700mm,900kgs(80inch double carriages)

Product packaging

Model	Knitting Width	Package Machine Size(MM)		Gross Weight(KGS)
HY-421J	42 inch	2300*1050*1800mm		Around 600kgs
HY-521J	52 inch	2500*1050*1800mm		Around 650kgs
HY-802J	80 inch	3500*1050*1800mm		Around 900kgs
