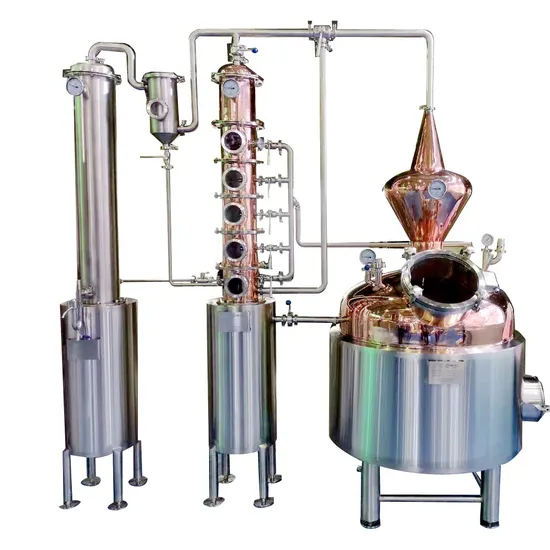

100L -2000L Alcohol Distillation Moonshine Pot Still Reflux Column for Whisky Rum Gin Vodka Brandy Spirit Distiller

Product Description

Product Description
Distilled alcohol is a kind of alcoholic beverage with higher ethanol concentration than the original fermentation product.
Brandy, whisky, rum and Chinese liquor are all distilled spirits, most of which are spirits with high degree. The production
process is first brewing, then distilling, then cooling, and finally obtaining the alcohol solution drinks with high degree.
Specification

Product Name	METO Distiller Equipment
Material	Red copper &SUS 304 Stainless Steel
Size	50L-5000L
Application	Whiskey, Brandy Gin, Rum, Vodka, Baijiu
Certificate	CE/ UKCA / ISO9001
Heating	Electric/ Steam/ Direct fire
Parts	Still pot, Column, Gin basket, Condenser, CIP, Pipe system
Options	-Voltage :110V/208V/220V/230V/240V/380V/400V/415V/460V/600V/.3 phase 50/60HZ -Copper pot/ Stainless steel pot -Copper dephlegmator /condenser -CIP pump and CIP pipe -Bottom with spirit collection tank for head heart and tail.

Spirit type	Capacity	components
Whiskey distiller	50-5000L	Still pot, Swan neck, condenser, CIP, pipe system
Vodka distiller	50-5000L	Still pot,onion head, column , dephlegmator, condenser, CIP, pipe system
Brandy distiller	50-5000L	Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Rum distillery	50-5000L	Still pot, onion head, column, dephlegmator,condenser, CIP, Pipe system
Gin distillery	50-5000L	Still pot, onion head, column, dephlegmator,condenser, CIP, Pipe system
Multi-spirits distiler	50-5000L	Still pot, onion head, column, dephlegmator,condenser, CIP, Pipe system

Detailed Photos




Features
All parts can be customized !!! 1. red copper, stainless steel 304/ 316 2. Mash tun, steam generator,Pot still, top, copper head, column,dephlegmator, condenser, parrot outlet, alcohol collecting tank,CIP, connecting pipes. Fermentation tank, control system. 3. Sight glasses, Temp sensor, analog temp gauge 4. Electric heating (with heating elements)/steam heating/ gas heating 5. CE, ISO, TUV Certificate 6. One year warranty 7. Semi-automatic control panel (The first batch you got can reach 65 degrees, and the maximum is 90 degrees. One batch duration is 1.5-3 hours, and the total distillation time depends on your expected alcohol purity.Take Whiskey for example) Customer case
Company Profile

Packaging & Shipping

Our Advantages
1. Free consultation service. Technical support by phone, email or MSN/Skype around the clock 2. Layout plan in 3D or CAD drawings of your brewery; 3. Professional engineers available to going abroad for the installation,debugging,and training. 4. Assisting purchased Facilities by seller including bottling system, steam boiler, water treatment, etc. 5. Brewing technology,brewing formula,can be offered available 6. More spare parts are available to offered freely. FAQ
Q1: Can your brewery system make both wine,gin,whiskey and vodka? A1 :Yes. Our distillation system can do this. Q2 :How to do temperature control? A2 :The digital display meter can control the temperature via connecting with the PT100 sensor. Insulation keep the temperature. Q3: Is it possible to supply installation in my country? A3 Yes, our engineers can go to your place and teach your person installation and brewing.
