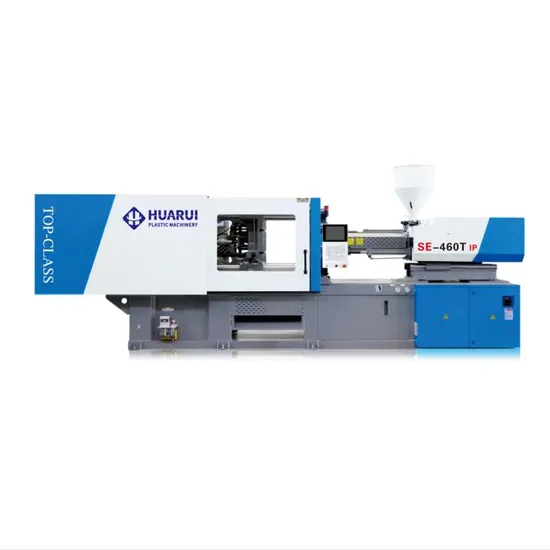

460ton Horizontal Energy Efficient Plastic Injection Molding Machine Special Pet Preform Production Full Automatic Servo Motor

460ton Horizontal Energy Efficient Plastic Injection Molding Machine Special Pet Preform Production Full Automatic Servo Motor

US$70,000.00-75,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-460T IP
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
910cm³/Sec
Weight
20000kg
Motor Power
52kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
9.2*2.0*2.9m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

High Precision Disposable Plastic Cup Bowl Meal Plate Making Injection Molding Machine
Product Parameters
Se-460T/IP Plastic Injection Molding Machine Information
Item Unit A
B
C
Screw diameter mm 90
Theoretical shot volume cm³ 2640
Shot weight (PET) g 3062
Shot weight (PET) oz 108
Length/Diameter ratio L/D 25
Injection pressure Bar 1283
Injection rate cm³/sec 910
Max.screw speed rpm 133
Clamping force KN 4600
Max.daylight mm 1180*1130
Open stroke mm 810
Space Between Tie-bars mm 820*770
Min mould dimension mm 300
Mould thickness range mm 830
Ejector force KN 150
Ejector stroke mm 220
No.of ejector pins unit 13
Max.motor power KW 36+36
System pressure MPa 175
Heater input power KW 52
Oil filling capacity L 600
Machine size M 9.2*2.0*2.9
Net weight KG 20000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
