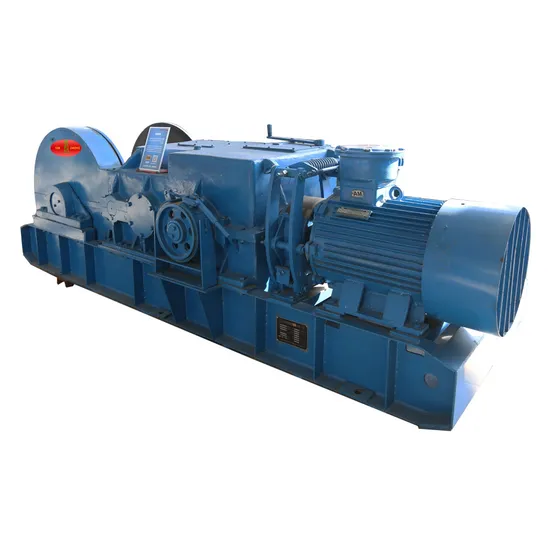

Jsdb-12 Durable Mining Two Speed Winderes Electric Double Drum Hoist Winder

Product Description

Product Description
Introduction of Factory Directly Supply 3 Ton 5 Ton 10 Ton 16 Ton 20 Ton Lift Winches Electric Double Speed WinchThe winch is a compact and durable winch. Mainly used in construction, water conservancy projects, forestry, mines, docks, etc. for lifting or flat towing of materials. The winch has the following characteristics: high versatility, compact structure, small size, light weight, heavy lifting capacity, easy to use and transfer, and is widely used in construction, water conservancy projects, forestry, mines, docks, etc. for lifting or hauling materials, and can also be used as supporting equipment for modern electronically controlled automatic work lines. There are 0.5t~350t, divided into two kinds of fast and slow speed. The winch can be used alone or as a component part of machinery for lifting, road construction and mine hoisting, and is widely used because of its simple operation, large rope winding capacity and convenient displacement. The main technical indicators of the winch are rated load, support load, rope speed, rope capacity, etc.zmwm21
Product Parameters
Parameter of Factory Directly Supply 3 Ton 5 Ton 10 Ton 16 Ton 20 Ton Lift Winches Electric Double Speed Winch

Model		JSDB-10		JSDB-12		JSDB-13		JSDB-15		JSDB-16		JSDB-19		JSDB-25		JSDB-30
		Fast	Slow	Fast	Slow	Fast	Slow	Fast	Slow	Fast	Slow	Fast	Slow	Fast	Slow	Fast	Slow
Wire rope static tension KN	Outer layer Max.	14.5	100	15	120	15	130	18	150	25.4	160	27.8	190	30	250	38	300
	Inner layer Max.	22.1	140	22.1	160	29.1	200	30	250	36.6	280	43.4	320	56	390	56	470
	Average	18.3	120	18.3	140	22.05	165	23	200	30.5	220	35.6	255	43	320	43	380
Wire Rope speed m/s	Max.	1.3	0.2	1.3	0.2	1.3	0.2	1.39	0.2	1.39	0.2	1.6	0.2	1.51	0.2	1.66	0.2
	Outer layer
	Average	1.075	0.18	1.075	0.18	1.11	0.18	1.235	0.17	1.235	0.17	1.31	0.18	4.145	0.16	1.145	0.174
Drum Size	Wire Rope Length m	120		180		180		300		300		500		500		800
	Drum Dia.*Width	ф430*430		ф430*443		ф435*530		ф470*530		ф510*530		ф545*570		ф545*760		ф650*800
Wire Rope size	Dia.	20		22		24		28		28		30		30		30
	Structure	6*19
	Nominal tensile strength kn	1670
Motor	Type	YBK2-200L1-6		YBK2-200L2-6		YBK2-200L2-6		YBK2-200L2-6		YBK2-250M-6		YBK2-280S-6		YBK2-280M-6		YBK3-315S-6
	Power KW	18.5		18.5		22		22		37		45		55		75
	Revolution rpm	970		970		970		980		980		980		980		980
	Voltage V	660/1140		660/1140		660/1140		660/1140		660/1140		660/1140		660/1140		660/1140
Dimension	L*W*H	2540*785*800		2540*785*800		3182*968*987		3260*1060*1060		3260*1060*1060		3825*1214*1470		3875*1274*1187		4750*1516*1512
	MM
Weight		2340		2600		3900		4400		5000		5480		7800		8200
(with motor)(kg)

Detailed Photos
Photos of Factory Directly Supply 3 Ton 5 Ton 10 Ton 16 Ton 20 Ton Lift Winches Electric Double Speed Winch
