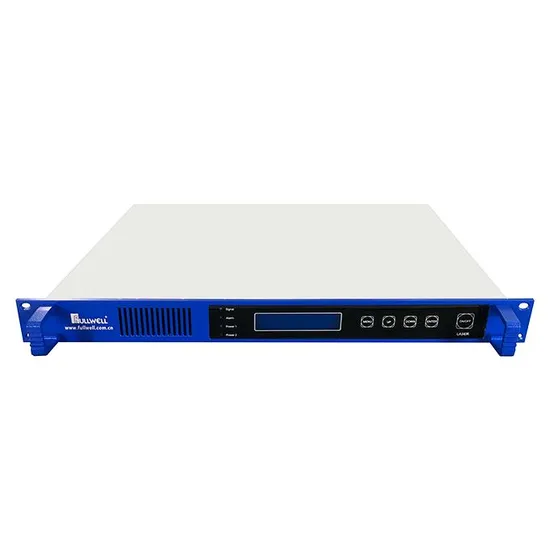

1550nm Direct Modulation Optical Transmitter with Aoi Laser
| US$500.00-800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FWT-1550DT-X
Certification
CE, ISO, RoHS
Condition
New
Laser Type
Aoi Brand
Wavelength
1550±10
Optical Output Power
2-10MW
Optical Connector Type
Sc/APC or FC/APC
Frequency Range
47-1000MHz
Cnr
≥52dB
Flatness
±0.75
RF Input Level
18-28dbmv
Nm Interface
RJ45
C/CTB
≥65.0
C/Cso
≥65
RF Input Impedance
75Ω
Size
19′′*11′′*1.75′′
Transport Package
1PC/Carton
Specification
CE, RoHs, ISO
Trademark
Fullwell (can be customized)
Origin
Zhejiang Hangzhou
HS Code
8517622990
Production Capacity
200-500PCS/Month
Product Description
| Item | Unit | Performance Parameter | Note |
| Laser Model | DFB | ORTEL | |
| Wavelength | nm | 1550±10 | |
| Optical Modulation Method | Directly Modulated | ||
| Optical Output Power | mW | 7~10 | |
| Channel Number (Analog) | N | 59 | |
| Optical Connector | FC/APC or SC/APC | Specified Before Ordering | |
| Frequency Range | MHz | 47~750(862) | |
| CNR | dB | ≥52.0 | |
| Flatness | dB | ±0.83 | |
| RF Input Signal Level | dBuV | 78±5 | |
| C/CTB | dB | ≥65.0 | |
| C/CSO | dB | ≥65.0 | |
| RF Input Impedance | Ω | 75 | |
| RF Input Reflection Loss | dB | >16(47~550)MHz >14(550~862)MHz | |
| Power Supply | V | 90~265VAC | |
| Power Consumption | W | ≤50 | Hot-pluggable Dual Power Supply |
| Working Temperature | ºC | 0~50 | Automatic Temperature Control |
| Storage Temperature | ºC | -20~85 | |
| Operating Relative Humidity | % | 20%~85% | |
| Dimension | ″ | 19"x15"x1.83" | (W)x(D)x(H) |
| Network Management Interface | RJ45 | Supporting Web Browser and SNMP |
