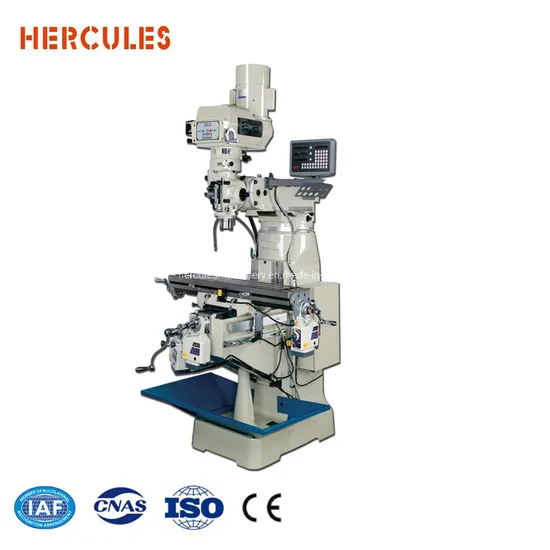

M2V Taiwan Spindle Fresadora Bridgeport Vertical Turret Milling Cutting Machine
| US$3,150.00-3,600.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
M2V
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1270*254
X Axis
Dovetail
Y Axis
Square
Z Axis
Dovetail
Motor
3HP
Spindle
R8/Nt30
Transport Package
Pallet
Specification
1750*1500*2100
Trademark
Hercules
Origin
China
HS Code
8459699000
Production Capacity
20000 Sets/Year
Product Description
Advantage!!1. High-frequency heat treatment for working table: hardness is over HRC48 and the harden thickness is up to 3mm.
2. All slide with high quality imported Turcite B, and well hand scraping with perfect match and oil containing , and the well lubrication ensure the long lasted for the machine and accuracy resistance.
3. HT250 grain casting with Meehanited standard processing .And materials strictly added with Nickel, brass, Chrome and Rare-earth , and the physical performance and rigidity of casting is well improved.
4. For the important parts like working table and saddle, we tempered twice during the machining.
5. Key parts(for high speed driving) for the head are imported from Taiwan , and the accuracy , rigidity and DB voice of the head with well performance .
| Model | M2V |
| Precision High Accuracy Series | |
| Table size(L*W)(mm) | 1067x230 |
| Max.load of table (kg) | 300 |
| X axis(mm) | 720 660 with power feed |
| Y axis(mm) | 330 |
| Z axis (mm) | 360 |
| Work table T slot (No.-size*pitch) (mm) | 3-15.88x63.5 |
| Distance between spindle and table(mm) | 50-410 |
| Ram travel (mm) | 380 |
| Travel of spindle quill (mm) | 127 |
| Auto crossward feed(mm/rev) | 0.04/0.08/0.15 |
| Spindle speed(rpm) | 80-5440 rpm 16steps |
| Spindle hole taper | R8 / NT30(optional) |
| Main Motor | 3HP |
| Tilt angle for milling head | left and right±45º forward and backward±45º |
| Guiding tracks(X.Y.Z) | △△△ |
| Dimension(L*W*H)(mm) | 1550x1500x2100 |
| Milling head | Round step milling head |
| Weight (kg) | 950 |
| Hercules Machinery Equipment Ltd. | |
Optional Accessories:
1. Square head with side brake milling head;
2. Variable stepless milling head;
3. Frequency conversion head;
