High Pressure Double-Drive Double Action Gas Drive Nitrogen Automatic Booster Pump

Product Description

Product Description
The Terek gas booster equipment uses pure compressed air as the driving power source, and uses gas booster pump as the pressure source, hydroge, nitrogen, oxygen, helium, N2O, argon, CO2 and other gases as the pressurized medium. The output pressure is proportional to the driving gas pressure.

By adjusting the pressure of the driving gas source, the corresponding pressure of the pressurized gas can be obtained. When the pressure of the driving gas source is balanced with that of the pressurized gas, the pneumatic booster pump will be automatically stops and the output gas pressure is stabilized at the preset pressure. Therefore, it has the features of explosion-proof, energy saving, environmental protection, adjustable output pressure, small volume, light weight, simple operation, reliable performance and wide application range.
To operate this system, the drive gas from the air compressor is required to start the Terek booster pump. The pressure of the drive gas can be adjusted by valves and pressure gauges, and the output gas pressure can be adjusted.

The expected working pressure can be achieved by adjusting the pressure of the drive inlet. When the driving air pressure and the output pressure are balance, the pump stops filling pressure and the output pressure remains at the preset value.

TEREK gas booster pump uses compressed air to drive large area end piston to small area end to get high pressure gas output. It can be used for compressed air and other gas. The output pressure can be adjusted by inlet valve. The output valve can ensure gas is not contaminated. Automatic pressure maintaining. Driven by gas, no spark or flame and no generating heat. It can be used in dangerous places.

Product Parameters
Basically the principle of operation is similar to a reciprocating amplifier where control of the piston at the end position is reciprocating. The automatic reciprocating motion of the piston is controlled by a built-in four-way valve. TEREK pumps are air driven at a drive air pressure of 3 to 8 bar (29 to 116 psi) by the normal air compressor.
Refer to Model Technical Parameters:

Product Name	Pneumatic Air driven gas booster pump Pressurized transfer and filling equipment.
Model	GU-GTB-40
Pressure Ratio	40:1
Drive Air source Pressure	3-8 bar
Maximum Outlet Pressure	320 bar (46400 psi)
When the Driven Air Pressure is 5.0bar	High pressure outlet pressure is 200bar.
When the Driven Air Pressure is 6.0bar	High pressure outlet pressure is 240bar.
Min Gas Inlet Pressure	15 bar
Max Gas Inlet Pressure	320 bar
Outlet Pressure Control Unit	Drive air regulator valve
Power Source	TEREK gas booster pump
Pressure Control Accuracy	Less than 1%F.S;
Pressure Measurement Accuracy	0.4 pressure gauge
Valves and Piping	High pressure needle valve and stainless steel piping
Weight	38 KG
Export Wooden Case Weight	45 KG
Equipment Dimension	580*450*570 mm
Packing Size	610*500*600 mm
Packing Specifications	Standard export wooden case
Connection Size(Inch) Gas Inlet	NPT1/4
Connection Size(Inch) Gas Outlet	NPT1/4
Production Time	12-15 days.

System Configuration:
TEREK gas booster pump uses compressed air to drive large area end piston to small area end to get high pressure gas output. It can be used for compressed air and other gas. The output pressure can be adjusted by inlet valve. The output valve can ensure gas is not contaminated. Automatic pressure maintaining. Driven by gas, no spark or flame and no generating heat. You can use it in dangerous places.

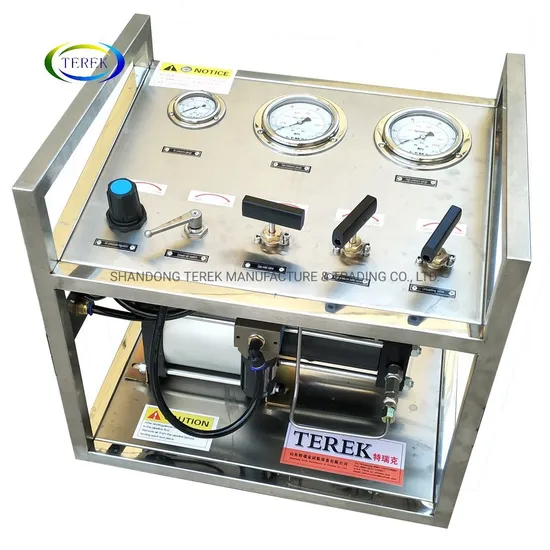

GU-GTB series gas booster unit control cabinet mainly includes one sets of GTB series air-driven gas booster pump, pressure gauges, air filter, gas inlet filter, control valves, air regulating valve, pipelines, cabinet, and pressure release valve etc.
In order to ensure the long-term use and stable working efficiency of the equipment, we provide a set of sealing accessories, repair kit, sealing tape, etc.

Detailed Images
Product Advantages

1. All pipes and fittings are made of stainless steel to ensure a long life.
2. The pump will stop working automatically when the output pressure reaches the preset value.
3. Maintain long working hours with no energy expenditure.
4. No dissipated heat during the pressure holding phase.
5. No risk for explosion and spark in oil and gas field.
6. The pump will start automatically when the outlet pressure drops slightly or the air drive pressure increases.
7. The working pressure can be adjusted by adjusting the pressure of the driven air.
8. Easy to install, move, use and maintain.
Application Fields
1. Pressure test with gas
2. Gas transfer and filling(Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO2/NO2/CH4/LNG/LPG/CNG/FM200 etc.)
3. Charging of gas cylinder and accumulator with nitrogen
4. Supply for isolating gas systems
5. High pressure gas injection system for various industries
6. Transfer of oxygen cylinders
7. Charging of breathing air bottles
8. Leak test
9. Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, gas bottles and air craft components
