Source Factory Granite Marble Stone Block Cutter for Cutting Quarry Curbstone Monument

Product Description

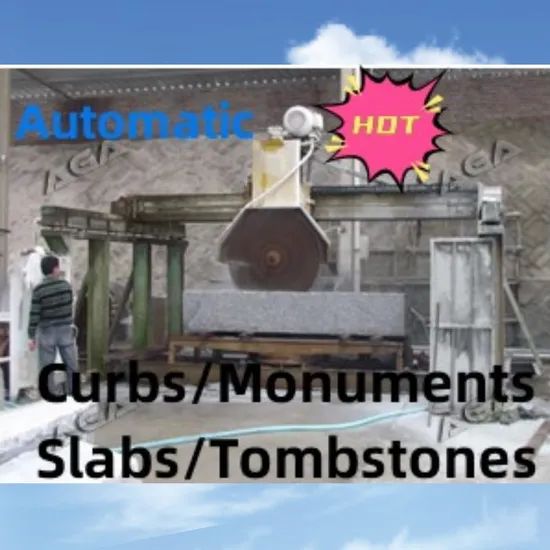

Automatic Stone Block Bridge Equipment
Stone Range of Application
Equipment applicable for cutting granite, marble, sandstone, limestone, etc.
Product Description
Automatic Stone Cutting Equipment
Cutting stone block into slabs
warranty: one year
Spindle Motor: 37/Kw
Max. blade diameter: 3000mm
Max. cutting length: 3400mm
Max. cutting depth: 1350mm
Max. cutting width: 2000mm
Longevity: at least 15 years

The single blade stone block cutting equipment is controlled by PLC system and cuts stone automatically.
It is used to cut big blocks into slabs and middle size blocks. The long crossbeam of the block cutter is made of strong iron cast which provide excellent balance and ensure uniform thickness of each slab.
The blade moves along with the crossbeam within left/right and up/down. Its movement (up/down) controlled by hydraulic system.
There are three different models of the cutter who mainly differ in max. cutting size.
DL2200 is suitable for cutting the block depth as large as 950mm, while 1100mm for DL2500 and 1350mm for DL3000.
The microcomputer controlled stone block cutting equipment which is featured by precise cutting, stable performance and easy operation has won trust and reputation from our customers.
Product Parameters

Model	Unit	DL2200	DL2500	DL3000
Max. blade size	mm	Φ2200	Φ2500	Φ3000
Max. cut length	mm	3000	3000	3400
Max. cut width	mm	2000	2000	2000
Max. cut depth	mm	950	1100	1350
Spindle motor	kw	37	37	37
Water consumption	cbm/h	6	6	6
Size (L×W×H)	m	6.6×6.1×4.9	6.6×6.1×4.9	7.1×4.8×6.1
Weight	kg	9000	9500	12000

Machine Images
Similar Multiblade Block Cutting Equipment for Your Option
Company Description

FAQ
1. Is the operation language on the machine English?
Yes, also the input size in mm or Inch.

2. When the machine will be ready for shipment if I place an order?
Machine will be ready in 10 - 35 days from time of ordering. It takes a little more for custom made orders.
Immediate delivery available when machine is in stock.

3. How long will I receive my machines?
It depends where you are. The ocean transport takes 10 - 40 days to arrive in your port.

4. Whether the machines fit the electricity power in our country?
Yes. The machines work with industrial electricity power of 3 phase and the voltage may be different in countries like 220v, 240v, 380v, 415v, 440v, 480v, 600v, etc. Please advise your voltage so we can make it fit your power.

5. How do you deliver the machines?
Big machines are transported in 20 ft or 40 ft box container.
Small machines available for LCL (Less than Container Load).

6. What is the warranty for the machine?
One year.

7. What is the lifetime of the machine?
Normally 15 years or more if properly maintained.
