V855 CNC Vertical Machining Center High Precision CNC Milling Machine CNC Machining Center Metal CNC Machine Tools

Product Description

Product Description

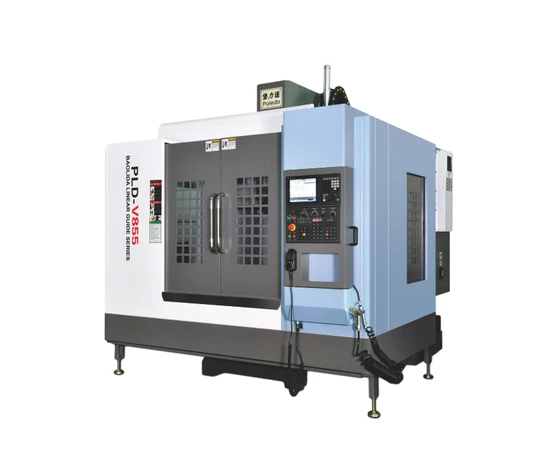

V855 This product X, Y, Z three-axis servo direct control semi-closed vertical machining center, three-axis linear ball guide, guide rail load, span wide, high precision, suitable for heavy load, compact structure and size reasonable, the spindle is servo motor driven by the timing belt. It can realize the clamping of various parts such as discs, boards, housings, cams, and molds at one time. It can be used for drilling, milling, boring, expanding, reaming, rigid tapping, etc. The production of medium and small batch products can satisfy the processing of complex and high-precision parts. The fourth rotary shaft can be equipped to meet the processing requirements of special parts.
CNC Control System
The system has complete and reliable interlock , safety protection and fault diagnosis and alarm functions,equipped with RS232 standard and network communication interface,and computer program control and storage,can achieve DNC processing.(according to the system has differences).
Product Parameters
Vertical machining center product introduction
The vertical machining center is a kind of highly automated multi-function CNC machine tool, which has a tool library and an automatic tool changing device. The spindle axis of this machine tool is set vertically with the workbench, which is mainly suitable for processing plate, plate, mold and small shell complex parts. Vertical machining center can complete milling, boring, drilling, tapping and cutting threads and other processes, through the digital control system, can control the machine tool according to different processes automatically select and replace the tool, automatically change the machine spindle speed, feed and tool relative to the Machined part trajectory and other auxiliary functions, in turn to complete the Machined part several faces of the multi-process processing. As a result, the vertical machining center significantly improves production efficiency.
Product features of vertical machining centers include:
Simple structure: Compared with the horizontal machining center, the vertical machining center has a simpler structure, a smaller footprint and a lower price.
Convenient Machined part clamping: The Machined part clamping and positioning of the vertical machining center is convenient, the cutting tool movement track is easy to observe, and the debugging program and inspection and measurement are easier.
The cooling conditions are easy to establish: the cutting fluid can directly reach the tool and the machining surface, which helps to improve the processing quality and efficiency.
Easy removal of chips: The three coordinate axes coincide with the Cartesian coordinate system, making the chips easy to remove and drop, to avoid scratching the processed surface.
Versatility: The vertical machining center is at least three-axis two-linkage, generally can achieve three-axis three-linkage, and some can carry out five-axis and six-axis control, which is suitable for a variety of complex processing needs.
Vertical machining centers are widely used in aerospace engine and structural parts manufacturing, automotive engine parts manufacturing, mold processing, information home appliance manufacturing, energy equipment manufacturing and other fields.

ITEM	TYPE	V650	V850	V855	V857	V1160
Axis travel	LEFT TO RIGHT(X)(mm)	650	800	800	800	1100
	FRONT TO BACK(Y)(mm)	400	500	550	550	600
	UP TO DOWN(Z)(mm)	500	500	550	700	600
WORKTABLE	DIMENSION(mm)	800×400	1000×500	1000×550	1000×550	1200×600
	MAX LOAD (kg)	350	500	600	600	800
	T TYPE(WIDTH×SLOT NO.)	3-18×125	5-18×80	5-18×90	5-18×90	5-18×100
DISTANCE	Spindle center to cloumn(mm)	460	560	613	613	645
	Spindle nose to work bench(mm)	100-600	120-670	150-700	150-850	175-775
SPINDLE	HOLE TAPER	BT40	BT40	BT40	BT40	BT40
	SPEED (rpm/min)	10000	direct connection12000	10000	10000	10000
	MOTOR POWER(kw)	5.5	5.5/7.5	7.5/11	7.5/11	7.5/11
FEED SPEED	X/Y/Z RAPID FEED SPEED(m/min)	48/48/48	48/48/48	36/36/30	36/36/30	36/36/30
	CUTTING FEED SPEED(mm/min)	1-10000	1-10000	1-10000	1-10000	1-10000
Tools	MAGAZINE CAPACITY(pcs)	20	24	24	24	24
	MAX.TOOLS ALLOWABLE WEIGHT(kg)	8	8	8	8	8
	MAX.TOOLS ALLOWABLE LENGTH(mm)	300	300	300	300	300
	TYPE	ARM	ARM	ARM	ARM	ARM
MACHINE	DIMENSION(mm)	2400×2150×2560	2600×2250×2660	2650×2300×2700	2650×2300×2900	3000×2400×2900
	WEIGHT(kg)	4000	4800	5500	5900	6800

Detailed Photos
Our Advantages
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .

4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.

5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.
