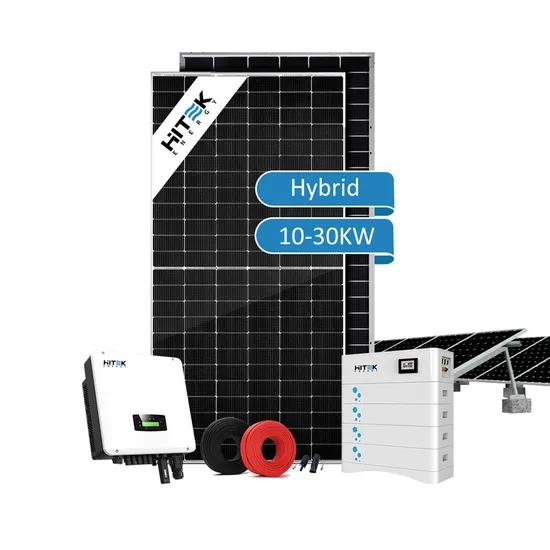

Complete Set 5kw 10kw 12kw 15kw off Grid Solar Power System with LiFePO4 Battery Backup 10000W Hybrid Solar Energy Storage System for Commercial Use

Product Description

Product Description
What is HITEK Residential Energy Storage Solution?HITEK residential solar energy storage solution includes battery system, battery storage inverter, PV components. Energy storage systems from HITEK can support your energy revolution.
Whether for the apartment, house, outdoor camp or emergency with our energy storage systems you will always find an ideal solution.
Warranty
How It Works
Hitek Hybrid Solar Power System is the best investment for your wallet and environment.
We make solar simple and energy smart.
Configuration Details

Model	HT10KW-HY	HT12KW-HY	HT15KW-HY
Mono Half Cell Solar Panel 560W	18PCS	24PCS	27PCS
DC Isolation Switch	3PCS	3PCS	4PCS
Hybrid Inverter	10KVA 1PC	12KVA 1PC	15KVA 1PC
LiFePO4 Battery	12.8KWH	15.36KWH	17.92KWH
DC Cable 1*4MM2	300 Meters	400 Meters	500 Meters
MC4 Connector	9 Pairs	12 Pairs	15 Pairs
Mounting System	Customized Designed Roof/ Ground Mounting Kits
Solar Installation Tool	1 Set	1 Set	1 Set

Model	HT20KW-HY	HT25KW-HY	HT30KW-HY
Mono Half Cell Solar Panel 560W	34PCS	45PCS	51PCS
DC Isolation Switch	6PCS	8PCS	9PCS
Hybrid Inverter	20KVA 1PC	25KVA 1PC	30KVA 1PC
LiFePO4 Battery	25.6KWH	30.72KWH	35.84KWH
DC Cable 1*4MM2	600 Meters	700 Meters	800 Meters
MC4 Connector	16 Pairs	18 Pairs	21 Pairs
Mounting System	Customized Designed Roof/ Ground Mounting Kits
Solar Installation Tool	1 Set	1 Set	1 Set

Save On your domestic and commercial utility bills with HITEK ENEERGY.
We use ONLY Reliable Approved Equipment.
System Components
Mono Solar Panel
Model: HT560M-72
Peak Power Watt: 560Wp
Open Circuit Voltage (Voc/V): 49.84V
Short Circuit Current (Isc./A): 14.14A
Voltage at Maximum Power (Vmp./V): 41.08V
Current at Maximum Power (Imp./A): 13.64A
Dimensions: 2279*1134*35mm
Weight: 28.0±3% kgAll-in-one Hybrid Solar Inverter
All-in-on hybrid solar inverter, which increases energy independence for homeowners and commerical users.
Smart Monitoring & Remote Firmware Upgrade
Built-in Anti-feed-in Function
AFCI (Optional) & Rapid Shutdown Ready
Support for Time-of-use OptimizationOnline Monitoring System
Open Station Supports one-click
Installation and registration Problem
Support one-click dispatch and navigation
Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure
data security and reliabilitySolar Battery Bank
Stackable Lithium Battery
Deep Cycle long lifespan
High discharge performance
Easy installation and Maintenance-free
AGM/GEL/Lithium Ion Battery Type
2V/12V/48V/High Voltage Battery
More than 6000 times, up to 90% DOD
Wide suitability of ambient temperature rangeDC & AC Disconnect Switch
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A, 20ADC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC /1000VDC (TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
Lifetime: ≤25 YearsPV MOUNTING SYSTEM
MOUNTING RAIL & RAIL SPLICE KIT: AI60O5 & SUS304 BOLT
MID&END CLAMPS: 30, 35, 40MM
L FOOT ASPHALT SHINGLE MOUNT & HANGER BOLTOPTIONAL
CABLE CLIPS &TIE OPTIONAL
GROUND CLIPS & LUGS OPTIONAL Packaging & Shipping
HiTEK Project Case
Company ProfileHITEK ENERGY gets founded in 2018. As superior photovoltaic manufacturer, HITEK ENERGY's dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses and factories.
We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to your unique power requirements.
At HITEK ENERGY, your satisfaction is our top priority. We use ONLY Reliable Approved Equipment.
Helping you save money on your electric bill is our responsibility. We take seriously.
We understand that you need more than just a solar system manufacturer, you need a brand that you can partner with for life.Let's work together for a better, brighter and greener future.
Our Advantages
