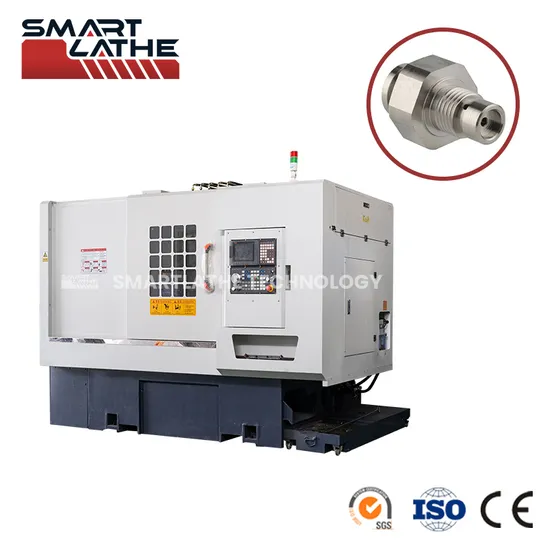

Lubrication System Dual-Spindle Flat Bed CNC Turning Machine with Bar Feeder for Aluminum Pipe Fitting (DS-36B)

Product Description

Product Description
Lubrication system Dual-spindle flat bed CNC turning machine
with bar feeder for Aluminum pipe fitting (DS-36B)
The DS-36B turning center combines dual-spindle turning with C axis, and live tooling to create a powerful "done-in-one" machining solution for any shop. Support for bar material supply is the most important feature of this machine. It provides convenience for continuous line generation.
Specification

CAPACITY
Swing Over Cross Bed	Φ350mm
Swing Over Carriage	Φ200mm
Max. length of workpiece	180mm
Turning Diameter	Single Workpiece up to φ100mm Bar Material up to φ35mm
Bed Type	Flat Bed

SPINDLE
Spindle Nose Taper	A2-4
Speed	5000 RPM
Spindle Motor Power	5.5kw Servo motor
Collet Type	Hydraulic Collet

TRAVELS
Z1-Axis/ Z2-Axis	250mm
X1-Axis/ X2-Axis	380mm/490mm
Guideway Type	32mm TAIWAN ball screw rod X1-Axis/X2-Axis 35mm TAIWAN linear guideway Z1-Axis/Z2-Axis 30mm TAIWAN linear guideway
Z/X Axis	Up to 24m/min
Machining Accuracy	±0.005mm
Surface roughness	≤Ra 1.6μm

TOOLS
Gang Type Tool	6 Gang Type Tool Holders
Outer diameter of cutting tool shank	20mm*20mm

CNC CONTROL
Controller	SYNTEC 22TB-E CNC

POWER SUPPLY
Total Power	14KW
Voltage	380VAC 50Hz

DIMENSIONS
Dimensions (L/W/H)	2670mm*1800mm*1900 mm
Weight	4000 kg

Standard Configuration

Fully enclosed splash guard with top roof	5.5KW spindle servo motor	Telescopic guards for X/Z axes
Spindle speed 5000 rpm, A2-4	Automatic lubrication system	Coolant system
Lubrication system	Hydraulic system	Coolant tank
Oil separator	LED working lamp	Electronic handwheel (MPG)
Coolant gun	Toolbox and user manuals	The tool holder (6 Sets)
Collet (2 Set)	C axis	CNC Simulation

Optional Accessories

3-Jaw Hydraulic Chuck With Soft Jaws(5"/6"/8")

Bar Feeder

Applications
This multi-tasking dual spindle turning center is an advanced model designed to process precision complex parts in one setup, which could operate the turning process of double-ended parts in a single setup with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with single workpieces up to φ100mm and Bar Material up to φ35mm. This DS-36B model is a Swiss-type CNC dual spindle lathe specialized for the highly efficient and automatic turning of bar materials.
Features
The Benefit of DS-36B Dual-spindle Bar Material CNC Lathe Machine
Manually moving the same part with two ends between machines for various processing can lengthen setup times, raise manpower costs, and decrease part accuracy.
Machine shops must raise output and accuracy to bolster their bottom line as the manufacturing sector deals with skilled labor scarcity and a slowing economy.
Double-ended parts can be turned on a single machine using the new Smartlathe DS-36B dual-spindle lathe, which is rather user-friendly for the bar materials.

Company Profile
FAQ
1:How can I choose machines?
A: for the model selection, please send us the drawing of the turning part and our engineer will evaluate it and provide the suitable configuration of the CNC lathe fit for your needs.
2: What are the main products of your company?
A: SmartLathe concentrated all its resources to develop successfully the SL series of the CNC slant bed lathes including the SL-07, SL-25, SL-36, SL-46, and the CNC Turning-Milling machines to help our customers in the field of prototyping, entry-level business, and the craftsman with a bootstrap budget.
3: Where is our factory located? How can I visit there?
A: Our factory is located in Foshan City, Guangdong Province, 528300 China. You are warmly welcome to visit our factory.
4: What are the Trade & Payment Terms?
A: FOB, CFR, and CIF are all acceptable. T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC at sight.
5: What's the MOQ?
A: 1 set. We will offer you a better price if you order more.
6. What is the delivery time?
A: The full series of standard models are in stock. For a customized one, it depends.
7. Do you have any certificates?
A: Yes, our machine is CE-compliant, and our factory is ISO 9001 accredited.
8. What is the warranty period?
A: The warranty period is generally 13 months after the B/L date.
9. Machine installation
A: SmartLathe could assign the technician to the place for the on-site installation if requested by the purchaser.
10. Technical Support
A: The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
11. Demo and Testing
A: SmartLathe built a training center for the clients and employees to study the operation of the machine. You are welcome to visit our factory anytime for the machines' demo. Furthermore, we could demo per your drawing of turning parts.
