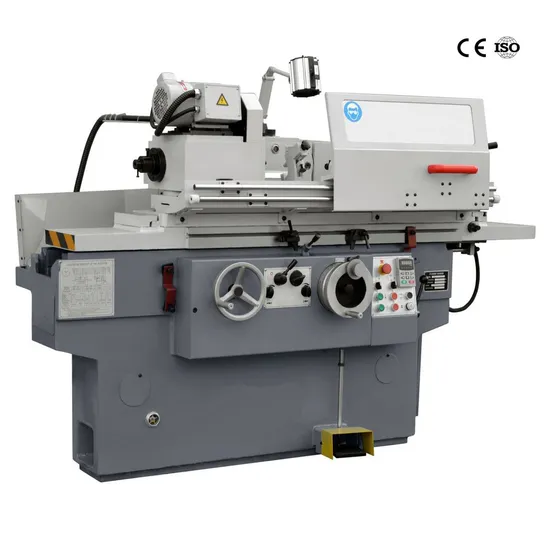

500/800mm Senmo Cylindrical Grinding Machine for External Grinding M1320h
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
M1320H
Type
External Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE
Condition
New
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84602911
Product Description
| Cylindrical Grinding Machine M1320H Feature |
| ·M1320H cylindrical grinder is drawn Cylindrical Grinding Machine, based on the advantages of the major grinder professional manufacturing units, to improve to improve new product with high performance and price ratio. ·This machine is used for grinding a variety of small parts cylinder, technical inside and outside the circle and outside the circle and the end surface. |
| Specifications | M1320HX500 | M1320HX800 |
| External grinding diameters | Φ8-200mm | Φ8-200mm |
| Center height | 135mm | 135mm |
| Max travel of table | 650mm | 950mm |
| Hydraulic traverse speeds | 0.1-4mm/min | 0.1-4mm/min |
| Max travel of worktable | 50kg | 50kg |
| Grinding length external | 500mm | 800mm |
| Swivel range of worktable | -12° | -10° |
| Max peripheral speed of grinding wheel | 38m/s | 38m/s |
| External wheel size | Φ400x50xΦ203mm | Φ280x50xΦ203mm |
| Workhead and tailstock center | MT4 | MT4 |
| Machine motor power | 5.625kw | 5.625kw |
| Overall dimensions(LxWxH) | 2500x1600x1500mm | 3000x1600x1500mm |
| Machine weight | 2500kg | 3000kg |
| Standard Accessories | Optional Accessories | |
| ·Coolant tank | ·Wheel balancing stand | |
| ·Grinding wheel dresser | ·End-face dresser | |
| ·Wheel flanges | ||
| ·Wheel balancing mandrel | ||
| ·Support | ||
| ·Open type steady rest | ||
| ·Driving dog | ||
| ·Carbide-tipped center | ||
| Working Accuracy | ||
| O.D.Roundness | 1.5μm | |
| Uniform of dia. in longitudinal section | 5μm | |
| Surface roughness | Ra 0.32μm |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
