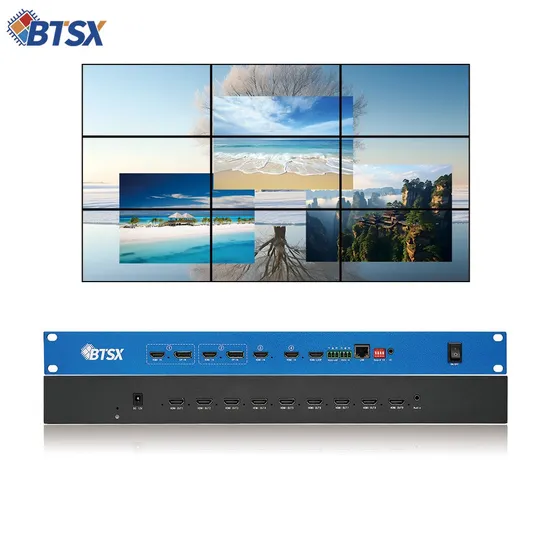

2X2, 2X3, 3X3, 2X4, and 4X2 Field-Type Splicing Modes Supports up to 4-Channel Signal Input Switching 4K60 UHD Video Processing Capability

Product Description

Product Description
4K60 Video Processor HDMI Matrix switcher •Support 4-channel 4Kx2K@60 input, support EDID management, (Extended Display Identification Data, Extended Display Identification Data);
•Support input and output rotation: input can be rotated 90°, 180°, 270°, output can be rotated 180° in the first line;
•Support multi-window control, which can realize picture-on-picture (POP) tiling mode, picture-in-picture (PIP) overlay mode, arbitrary picture overlay, roaming, cross-screen, zoom etc;
•Support signal cropping function, can remove the black edge of the input signal, local amplification of the signal;
•Support seamless real-time signal switching, no black screen, no lagging;
•Support image effect color, saturation and other parameters to adjust the function, to solve the front-end signal color reproduction;
•With screen freeze and screen mirror function, gamma mode and panel gamma mode;
•Support IR remote control, RS232, TCP/IP, host computer software control, with keyboard shortcuts, fast operation;
•Optional audio separation, audio with out support for HDMI OUT 1 or ALL ON or ALL OFF;
•Support 10 preset saving function;
•Support full-channel color depth 24bit, pixel format RGB444, high quality video image output;
•Low power consumption and environmental protection design, internal conduction heat dissipation, support for flexible installation (optional desktop/wall mounting);
Can be used with our self-developed window software, can realize any open more open window function.
Contact customers Welcome to consult the project function requirements! Product Details
Specification

Model Number	BIT-VP-IC409PRO
Brand Name	Bitvisus
Product features	1.Support EDID 2.Seamless switching 3.Supports signal cropping function 4.Supports functions such as hot swapping,power-off memory 5.Supports host computer readback,plan saving
Input interface type	HDMI 2.0x4,HDCP 2.2,DP 1.2X2
Output interface type	HDMI 1.3x9 (≤15m) HDMI 2.0x1 (ring out)
Resolution	4096x2160@60Hz
Accessories list	12V/5A power supply x1; IR receiver x1; Remote control x1; Certificate x1; Warranty card x1; USB to RS232 serial cable(optional)
Certification	CE,FCC,ROHS
Support	ODM,OEM
Control method	Infrared remote control,serial port RS232,PC host computer
Power supply	DC12V/5A
Power consumption	36W
Accessories list	12V/5A power supply x1; IR receiver x1; Remote control x1; Certificate x1; Warranty card x1; USB to RS232 serial cable (optional)
After-saleswarranty	After-sale sservice 3-year warranty
