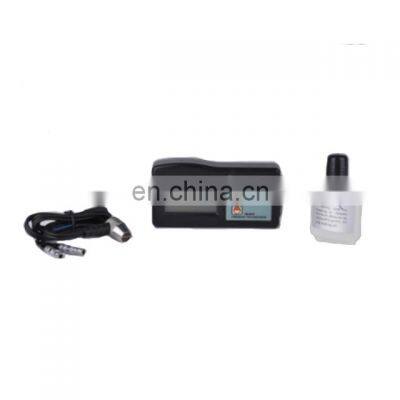

TM-8812 Ultrasonic Thickness Meter Measure Thickness Ultrasonic Thickness Gauging

Product Description

Product Description
Product DescriptionTM8812 ultrasonic thickness gauge is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Applicable to measure the thickness of many materials, e.g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.SpecificationModel TM-8812 Thickness GaugeMeasuring range(Metric Imperial) 1.0~225 mm 0.05~9 inchOperating principle ULTRASONICSound velocity 500~9000 m/sLower limit steel pipes Diameter 15 x2.0mm, Diameter 20 x3.0mm determined by the transducerCalibration block IncludedResolution 0.1 mmAccuracy ±(0.5%n+0.1)RS232C interface With RS232CPower supply 4 x1.5V AAA(UM-4)Battery indicator Low battery indicatorOperating conditions 10~90% RHDetails ImagesUltrasonic thickness meter’s ApplicationUsed for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.Standard delivery Main unit 1 5M Diameter 10 transducer 1 Instruction manual 1 Carrying case B04Optional Accessories 6M Diameter 6mm thin Material probe Measuring range (steel) :1.0~50.0mm 5M Diameter 12mm high Temperature probe Measuring range (steel):1.0~ 225.0mm (normal temperature) Measuring range (steel):4.0~100.0mm (high temperature) Cable & Software for RS232C interface AvailableRelated productsCompany ProfileAbout Us1. 18 Month's Warranty.2. MOQ:1 set.3.Ready to ship out within bysea,TNT,DHL,FedEX,as soon as we receive payment.4. We accept T/T,Western Union,PayPal & Secure Payment.DALIAN TAIJIA TECHNOLOGY CO.,LTDAddress:NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, ChinaWhatsapp/Wechat:+8618842866177E-mail：commercial(at)
