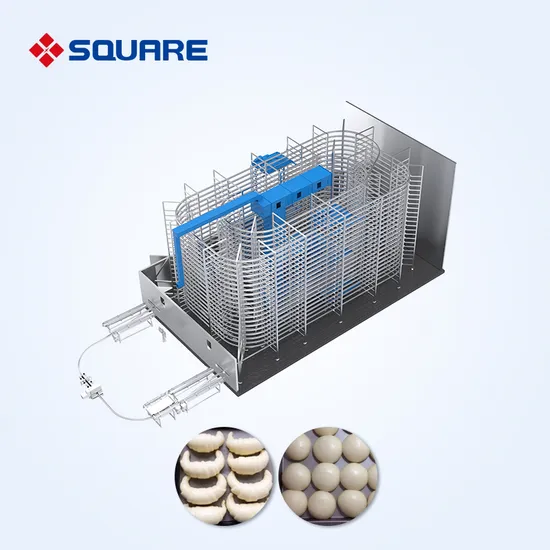

Square High Quality Reliable Performance Energy-Efficient Continuous Proofer

Product Description

Production Name	Continuous Proofer
Model: CP-2000	Insulated Enclosure Dimensions:15700*7850*5160
Model: CP-3000	Insulated Enclosure Dimensions:15700*7850*7320
Model: CP-4000	Insulated Enclosure Dimensions:17000*8400*6400
Model: CP-5000	Insulated Enclosure Dimensions:15700*7850*7465
Steam Pressure	0.3-0.5MPa
Operating Temperature	30-48(±1)
Operating Humidity	75-90(±1.5)
Advantage	PID Control High Automation Suitable For All Kinds Of Baked Goods And Pastries

Square's continuous proofer is suitable for the proofing of a variety of bakeries products and pastries.
Inside the insulated enclosure, our conveyor system facilitates seamless movement. Moisture and temperature regulation within the proofer are automated through PID-controlled valves.
This versatile proofer accommodates various bakery products and pastries, ensuring superior proofing quality with consistent moisture and temperature levels, surpassing traditional methods in automation and precision
1.Continuous transmissionContinuous transmission system will greatly enhance the output, reduce human resources, realize the overall continuity for mass production.

2.Rail designThe upward opening rail design perfectly avoids debris and dust falling into products on the lower tiers due to friction of the chain during operation, ensuring the hygiene of the products.

3.VFD Control and Easy AdjustmentThe duration time can be easily adjusted for product varieties, as proofing time varies as per different products.

4.PID controlUsing airflow regulation device and PID loop resistance/capacitance humidity controller, air is continuously circulated up and down through centrifugal fan and heat exchanger to ensure uniform temperature and humidity in the insulation enclosure; humidity control accuracy can be controlled within ±3%, temperature of ±2ºC.





Square Technology Group Co. Ltd is a listed company in Shanghai-stock Exchange. The company has been manufacturing freezing systems for over 39 years and is the largest industrial freezer manufacturer in the China.
Our manufacturing facility is located in Nantong, China, with some 1800 employees and 64 hectares' land. We serve a wide range of food processing industries and can draw from our extensive experience to provide our customers the best value and ensure maximum profitability.
The product line includes spiral freezer, plate freezer, tunnel IQF, refrigeration system, cold cooler, insulated panel, cooler, oven, ice machine, etc.
Our products have been exported to over 80 countries covering various applications, including seafood, protein, bakery, vegetable, fruits, etc. Square dedicate to deliver the superior quality freezing equipment to our client.
