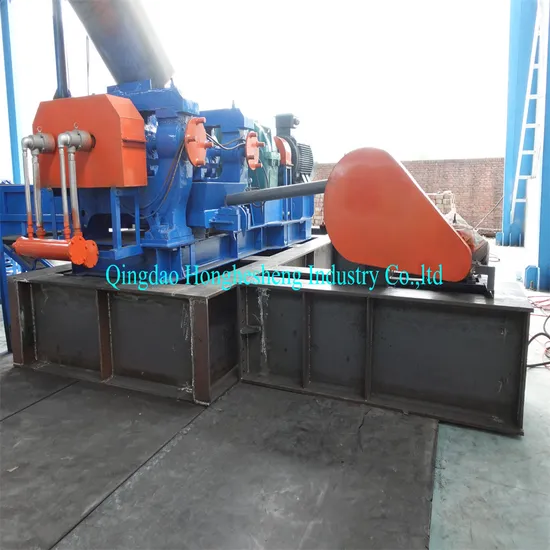

Waste Tyre Cracker Tire Crushing Machine Rubber Crusher Machine Two Roll Cracker Mill Machine

Product Description

Cracker Mill / Rubber Crusher / Rubber Breaker Application: Cracker mill is used for the breaking process from used tire scape to rubber powder.
Advantage: Strong Quality Machine & Higher Capacity
Features: The rollers are made of chilled cast iron or casted steel(surfacing hard alloy) with wear-resistant hard surface. The two rollers are grooved. The bored rolls can be cooled homogeneously through inputting steam and cooling water. The two rollers rotate reversely with different speed, so that rubber material can be processed.
This kind of machine consists of seat, Rack, two rollers,motor,cooling system,heating system etc.
1.Rollers are made of chilled cast iron ,which are abrasion resistant with long service life.
2.Rear roller is equipped with distance adjustment device,easy operation and convenience,turn the turbine to adjust the distance.
3.Perfect emergency stop device can ensure the safety of personnel and equipment.
4.the seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
5.Human nature designed operating system reduces labor intensity. 6.This machine is used for breaking, plasticating and mixing of rubber materials. 7.The rollers are made of chilled cast iron or casted steel(surfacing hard alloy) with wear-resistant hard surface.
8.The two rollers are grooved.
9.The bored rolls can be cooled homogeneously through inputting steam and cooling water.
10.The two rollers rotate reversely with different speed, so that rubber material can be processed.

Type	XKP-560	XKP-610	XKP-680	XKP-710
Grooved roller dia.	560mm	610mm	680mm	710mm
Smooth roller dia.	510mm	560mm	610mm	610mm
Working length of rollers	800mm	1000mm	1000mm	1100mm
Motor power	132KW/160KW	185KW/200KW	250KW	280KW
Speed reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer
Roller support type	Bearings	Bearings	Bearings	Bearings
Lubricating method	Grease pump automatic lubricating	Grease pump automatic lubricating	Grease pump automatic lubricating	Grease pump automatic lubricating
Machine weight	Around 20 ton	Around 25ton	Around 30ton	Around 32ton
Production capacity(24mesh)	Around 900kg/h	Around 1000kg-1300kg/h	Around 1200-1500kg/h	Around 1300-1600kg/h
