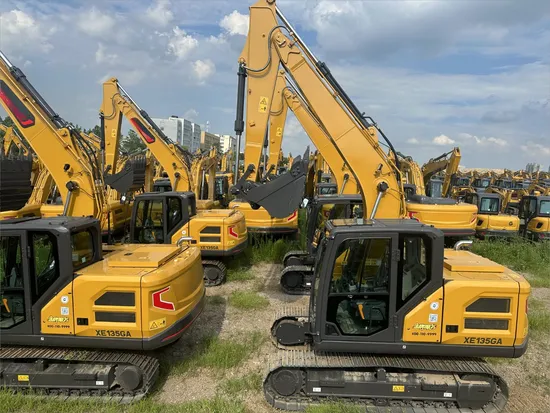

China Top Brand 13.5 Ton Crawler Excavator Xe135ga

Product Description

Introducing the China Top Brand 13.5 Ton Crawler Excavator XE135GA, a powerful and reliable machine designed for heavy-duty excavation tasks. This excavator is built to deliver superior performance and efficiency on the job site, making it a valuable asset for any construction or mining project.
The XE135GA features a robust crawler design that provides excellent stability and maneuverability, allowing operators to navigate rough terrain with ease. Its 13.5-ton operating weight ensures strong digging force and lifting capacity, making it ideal for handling large volumes of material.
Equipped with advanced technology and a fuel-efficient engine, this excavator offers low operating costs and reduced environmental impact. Its spacious cab provides a comfortable working environment for operators, enhancing productivity and reducing fatigue during long hours of operation.
Choose the China Top Brand 13.5 Ton Crawler Excavator XE135GA for your next excavation project and experience unmatched performance and durability. Contact us today to learn more about this top-of-the-line machine.

Sales model		Unit	XE135GA
Operating weight		Kg	13200
Bucket capacity		m³	0.32-0.61
Engine	Model	/	QSF3.8
	No. of cylinders	/	4
	Output power	kw/rpm	86/2200
	Maximum torque/speed	N.m/rpm	470/1300
	Displacement	L	3.8
Main performance	Travel speed	km/h	5.2/2.9
	Swing speed	r/min	11
	Gradeability	°	35
	Ground pressure	kPa	40.4
	Bucket digging force	kN	99.1
	Arm digging force	kN	68
	Maximum traction	kN	134
Hydraulic system	Rated flow of main pump	L/min	125.4*2
	Main safety valve pressure	MPa	31.4/34.3
	Travel system pressure	MPa	34.4
	Rotary system pressure	MPa	25
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	260
	Hydraulic tank capacity	L	105
	Engine oil capacity	L	11
Appearance size	A Overall length	mm	7795
	B Overall width	mm	2525
	C Overall height	mm	2880
	D Width of platform	mm	2490
	E Track length	mm	3648
	F Overall width of chassis	mm	2490
	G Track width	mm	500
	H Length to center of rollers	mm	2918
	I Track gauge	mm	1990
	J Counterweight clearance	mm	931
	K Min. ground clearance	mm	466
	L Min. tail swing radius	mm	2325
	M Track height	mm	802
Working scope	A Max. digging height	mm	8638
	B Max. dumping height	mm	6174
	C Max. digging depth	mm	5546
	D Maximum depth cut for 2240mm(8 ft) level bottom	mm	5335
	E Max. vertical wall digging depth	mm	4698
	F Max. digging radius	mm	8304
	G Min. swing radius	mm	2445
Standard configuration	Length of boom	mm	4600
	Length of arm	mm	2520
	Bucket capacity	m³	0.52
Optional configuration	Length of boom	m³	/
	Length of arm	m³	2100/3010
	Bucket capacity	m³	0.32/0.4/0.61

Company Profile
TELDA Construction Machinery Co., Ltd is the sales center for used construction machines that have signed with China top brand GUANGLIAN RENTAL. For the second hand truck crane, you can find the most official service and most suitable price here. In addition, the company also provided all series of the whole new machines such as excavators, loaders, road rollers and motor graders, and cranes(sale and rental). To effectively solve our customers' spare parts demand, we also provided related spare parts, such as transmission, engine, tire, gear, filter, bucket, and so on. With high quality and competitive prices, we have received great amount of positive feedback from customers.
Located in the city of heavy construction machinery--XUZHOU that brings great convenience to business people due to developed transport conditions and close to factories, we promise to update related information at a higher speed; Equipped with technological knowledge and experience of over 10 years in the construction machinery industry, we are confident to provide customers with a satisfying business guide; Corporate with many countries, we have enough experience to serve customers with various of trading approach.
As an enterprise, we will also undertake our social responsibilities and contribute our strength in the field of machinery manufacturing. Adhering to the management principles of "quality first, customer first, and credit-based", we always do our best to satisfy the requirements of customers to the greatest extent. Glad to corporate with friends all over the world to realize a win-win situation in used construction machines and spare parts.

Q&A
1.What is your advantage?
Compared with other trading companies, Telda is armed with experience that more than 10 years, and various sources of products that can satisfy different requirements about the whole machine and spare parts. In addition, the reply speed is faster than checking with the factory directly, we have 7*24 assistants to provide customers with any help including quoting and after-sale service, therefore you do not need to worry about any emergencies.
2. How long does it usually take to deliver?
For a normal model, we usually get the machine and spare parts ready within 4 days. For special specifications, we have more sources to buy for you and provide products at a higher speed.
3. Which kind of payment term do you accept?
We usually quote FOB, CIF, and CFR prices and use T/T, cash against the document, and D/P most often.
