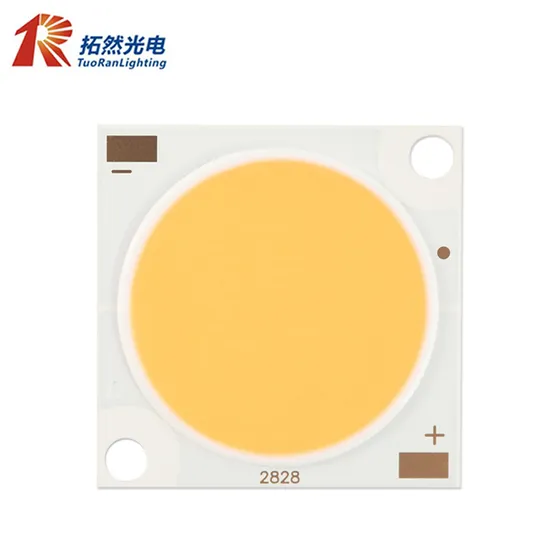

High Luminous Efficacy 2700-6000K 2828 40W 60W 50W 80W LED COB Chip for LED Floodlight

Product Description

Product Parameters

Model NO.	Power	Φ V(lm)	VF(V)	IF(mA)	CCT(K)	Whole Size	Emit Size	Ra	Material
TR-CO-2828	18W	1800-1980	54-57	300	3000 4000 6000	28*28*1.5mm	Φ23.2mm	80	Mirror aluminum substrate
	24W	2400-2640	36-39	600
	30W	3000-3300	36-39	750
	36W	3600-3960	36-39	900
	40W	4000-4400	36-39	1050
	50W	5000-5500	36-39	1350

The above parameters are in the general range. If you have special requirements, please contact the customer service,
and you can customize according to your parameters.
Detailed Photos Aluminum substrate
The thickness is 1.10mm. Good heat dissipation, high temperature resistance, not easy to deformation.
Application
It is widely used in COB bulb lamp, COB table lamp, COB street lamp, COB spot lamp, COB ceiling lamp, COB track lamp,
COB fluorescent lamp, indoor and outdoor commercial lighting, decoration and entertainment lighting, etc. Product Shows For more products, please click this link.
Company Profile Our factory introduces the most advanced machinery and equipment in the world at present, including advanced automatic production line and production technology, dust-free and anti-static workshop, superior performance testing equipment, etc., from fixed chip, welding line, potting, spectral color separation, packaging, inspection are automated in one step. Our products mainly include all kinds of light emitting diode (Lamp LED, Chip LED, TOP LED, etc. ), and can be widely used in electronic display screens, indicator lights, indoor and outdoor lighting and mobile phone backlight and other fields.
Certifications
Packaging & Shipping
FAQ Q1. Can I have a sample order of led lamp?
A: Yes, we welcome sample orders to test and check the quality. Mixed samples are acceptable.
Q2. How about the delivery cycle?
A: It takes 3-5 days for samples and 1-2 weeks for batch production.
Q3. How do I order LED lights?
A: First let us know your request or application.
Secondly, we will quote according to your requirements or suggestions.
Third, the customer confirms the sample and pays the deposit for the formal order.
Fourth, we arrange production.
Q4: Do you guarantee the products?
A: Yes, we provide a 1 year warranty for our products.
