Flexible Solar Panel Price Thin Film 300W 310W 320watt Solar PV Module
Basic Info.
Model NO.
FFXS-100W
Application
Industrial
Condition
New
Certification
ISO, CB, CE
Material
Monocrystalline Silicon
Type
Flexible
Power
100W
Length
1145mm
Width
535mm
Thickness
3mm
Efficiency
20.0%
Junction Box
IP67 Rated
ETFE
0.05 mm
OEM Order
Acceptable
Certificate
TUV/IEC61215/IEC61730/Cec/CE/Pid/ISO/Inmetro
Solar Cell
Mono 156.75*156.75
Connector
Mc4
Cable
900mm PV Cable
Transport Package
2PCS/Carton
Specification
FFXS-100W
Trademark
Flagsun
Origin
China
HS Code
8541402000
Production Capacity
100MW/Year
Packaging & Delivery
Package Size
120.00cm * 50.00cm * 1.00cm
Package Gross Weight
12.800kg
Product Description
Product Descriptiontem Number: | SUNPOWER-100W |
Solar Cell: | 125MONO |
Maximum Power(W): | 100W |
Optimum Power Voltage(Vmp): | 17.6V |
Optimum Operatige Current(Imp): | 5.7A |
Open Circuit Voltage(Voc): | 20.8V |
Short Circuit Current(Isc): | 6.67A |
Size of Module(mm): | 1145*535*2.6MM |
Temperature Coefficients of Isc(%)ºC: | 0.065+/-0.015%/°C |
Temperature Coefficients of Voc(%)ºC: | _(22.3+/0.1)mv°C |
Temperature Coefficients of Pm(%)ºC: | _(0.5+/-0.05)/°C |
Temperature Coefficients of Im(%)ºC: | +0.1/°C |
Temperature Coefficients of Vm(%)ºC: | -0.38/°C |
Temperature Range: | -40°C to +85°C |
Tolerance Wattage(e.g.+/-5%): | ±3% |
Weight Per Piece(KG): | 2.0KG |
Junction Box Type: | Pass the CE,FCC,IEC Certificate |
Cell Efficiency (%): | 20.8~22.8% |
FF (%): | 70-72% |
(1) It is lightweight, only 2kg including the cables, and thin, only 2.6mm thickness;
(2) Semi flexible, 30degree bending is no problem;
Advantage:
(1) High efficiency: It is Sunpower solar panel, with efficiency 22%-24%;
(2) Various applications such as: RV/Boat/Marine or Golf cart etc.
(3) High light transmittance 98%, and high temperature resistance range -40°C to +85°C;

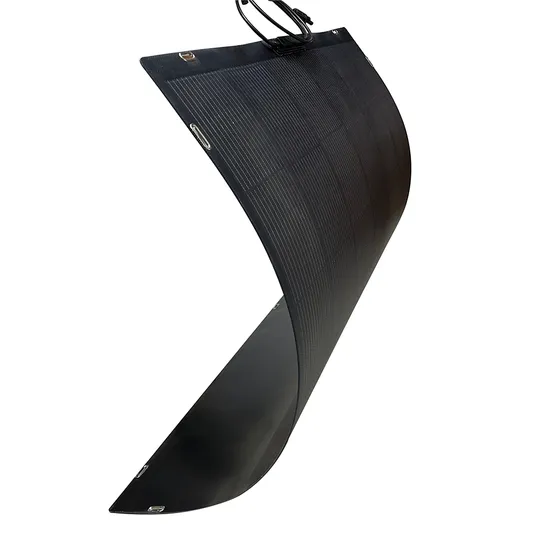

Flexible Panel Feature
1. semi flexible : bending angle up to 30 -90 degrees
2. Durable with TPT backsheet, no glass
3. Light weight for easy carrying
4. the thickness only 3mm, easy joint to your yacht or RV roof
5. Can be stepped on with soft soled shoses
6. High efficiency mono crystalline solar panel
7. Rounding corners to prevent from being scratched
8. From -20°C ~ +60°C Work temperate
9.Widely applied to RV, Golf car, Electric car, Yacht, boat, marine , Tent or backpack ect
Our Services
(1)All these products will be covered with 2years warranty;
(2) Within the warranty period, the products you found with defects, can be offered with new ones as replacements.
(3)Other service: Apart from these, we will also provide OEM/ODM service based on your requirements.
Production process
Application
Company Profile
Certifications
Packaging & Shipping
FAQ
