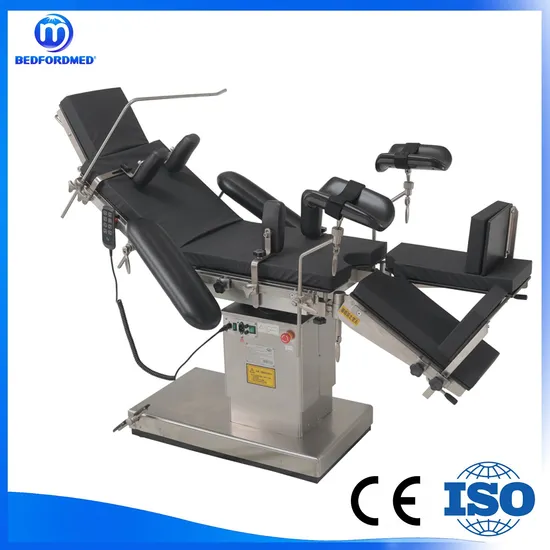

Multi-Function Hospital Electric Surgical Bed/Table 2000c (ECOH28)

Product Description

Electric Operation Table 2000C(ECOH28)
Length:2000mm
Width: 480mm
Max Height:800mm
Min Height:550mm This is special designed new product suitable for cerebral operation. It is suitable for surgical procedures of the neck, throax and abdomen, perineum and extremities as well as for gynaecological, oto-rhino-laryngological operations.
It is a multi purpose operating table. This operating table is feature is can be lowered to 550mm hight from floor for convenient doctors to seat operation. There is a special designed Head Rack. Its all movements are controlled electrically. It's noise is little, performance is reliable, adjustment is easy. Various positions of head section, back section, seat section, kidney bridge, bridge, leg section can be easy adjusted.
Range of movements:
Reversed Tendelenburg.......................................... ...≥200
Trendelenburg...............................................................≥150
Lateral tilt..........................................…..........................≥150
Adjustment of sections:
Head Section Raised from the horizontal....................... ≥450
Head Section lowered from the horizontal.......................≥900
Leg Section Lowered from the horizontal...............…......≥900
Leg Section opened....................................................….≥900
Back Section Raised from the horizontal..........................≥450
Back Section lowered from the horizontal.........................≥150
Kidney Bridge Elevated....................................................≥100mm
Safe Working Load..........................................................135kg
Lifting speed................................................................4~16mm/s
Foot and leg board board into a horizontal or vertical.

Structure:
Electric Operating Table is made up of the table top, the main part, the electric controlling part and the accessories, etc. It's raising, lowering, lateral tilt, trendelenburg and reversed trendelenburg movements ,back section bending are all drived by the motors.
The table top is made up of head section, back section, seat section, leg section and kidney bridge. The head section can be disassembled. The head section can be raised or lowered from the horizontal. The leg section can be lowered from the horizontal and opened. The back section can be raised or lowered from the horizontal. Table top is made of engineering plasties, thus X-ray examination of can be carried out on it.
The main part includes rotary frame, lateral tilt arrangements, trendelenburg and reversed trendelenburg arrangements, ascending and descending arrangements and the base.

Numberal order	Name of accessories	Number
1	Head section	1
2	Stand for anaesthetic bottle	1
3	Body support	Large 1.smart 1
4	Shoulder support	2
5	Arm rest	1
6	Knee crutch	2
7	Cushion	1
8	Foot Section	2
9	Body Restraint Strap	1	Optional
10	Handle	1
