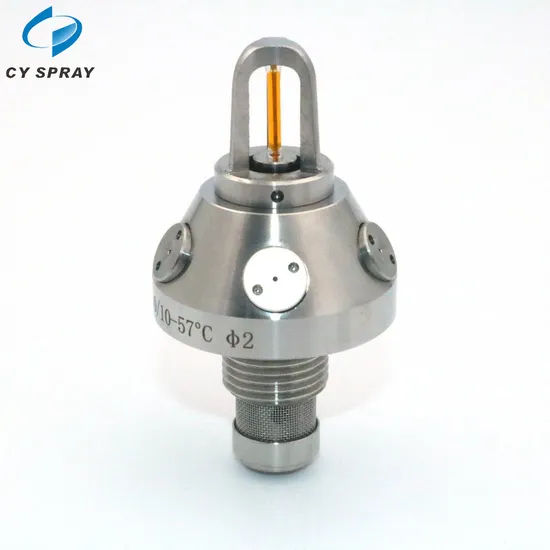

Water Mist Fire Fighting Nozzle High Pressure Fire Fighting Systems
Basic Info.
Model NO.
JW
Alarm Valve Type
Wet Alarm Valve
Automatically Opened and Closed Repeatedly
Can Automatically Opened and Closed
Open Fire Sprinkler System Type
Water Spray System
Closed Fire Sprinkler System
Wet Fire Sprinkler System
Dry Alarm Valve Type
Enclosed Type
Wet Alarm Valve Structure
Butterfly Valve Type
Nozzle Flow Coefficient
80
Deluge Valve Type
Diaphragm Type
Product Name
Fire Water Fogging Nozzle
Max. Working Pressure
140bar
Advantage
0-50um Drop Size,Finest Spray
Application
Fire-Fighting, Fire-Protection
Material
Ss
K Factor
0.5-3.5
Spray Shape
Flat Fan ,Round
Certificates
ISO 9001, ISO14001
Brand Name
Cy Spray
MOQ
20PCS
Trademark
CY
Origin
China
Product Description
Application:Water mist nozzles apply to extinguishing the hazardous solid surface fire in relatively confined space, combustible liquid fire and part of energized equipment fire. Mainly used in libraries, archives, high-rise buildings, production workshop, cable tunnel, oil immersed transformer, boiler room, electronic information system room, generator room and other places.
Performance data:
| Model Code | K factor | Working pressure | Flow rate(L/min) | Max. Distance between nozzles | Max fit height | Qty of Nozzles tips |
| CY--T1.0/10-57ºC2 | 1.0 | 10-14Mpa | 10-11.8 | 3m | 5m | 5/6/7 |
| CY--T1.5/10-57ºC2 | 1.5 | 10-14Mpa | 12-14.2 | 3m | 5m | 5/6/7 |
| CY--T1.7/10-57ºC2 | 1.7 | 10-14Mpa | 15-17.7 | 3m | 5m | 5/6/7 |
| CY--T2.0/10-57ºC2 | 2.0 | 10-14Mpa | 17-20.1 | 3m | 5m | 5/6/7 |
| CY--T2.5/10-57ºC2 | 2.5 | 10-14Mpa | 20-23.7 | 3m | 5m | 5/6/7 |
| CY--T1.0/10-57ºC2 | 1.0 | 5.0-10Mpa | 12.5-29.6 | 3m | 5m | 5/6/7 |
| Operating Temperature/Colour | Brand | Model Code | Diameter | RTI[sqrt(ms)] |
| 57ºC2/Orange 68ºC/Red | JOB | F2/S2 | 2 | 19 |
| 57ºC/Orange 68ºC/Red | JOB | F2.5 | 2.5 | 24 |
