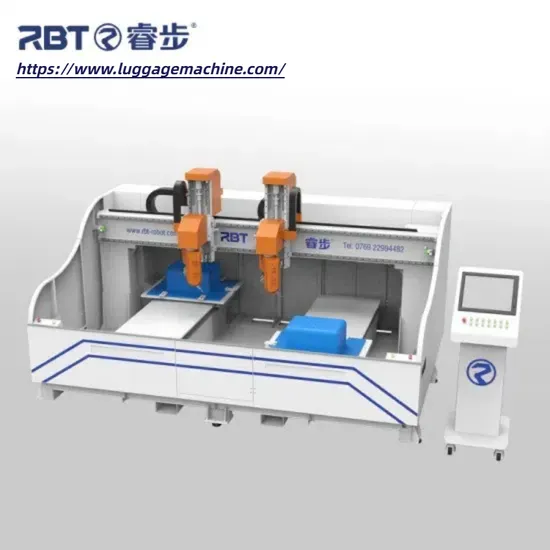

10 Axis CNC Cutting Machine for Special Fabric Plastic Luggage for Samsonite

Product Description

RBT Ten Axis Multi Axis CNC Cutting Machine for Luggage punching and trimming
Parameters

No.	Components/Specification	Brand/Parameter
1	Control System	Taiwan SYNTEC/HNC
2	Servo	Inovance/HCFA
3	Linear Guide	Taiwan SHAC
4	Screw	Taiwan TBI
5	Rack	LIANGCHI
6	Electrical components	France* Schneider
7	Pneumatic Components	Taiwan AirTAC
8	X/Y axis reducer	Japan* SHIMPO
9	C/B axis reducer	Japan* SHIMPO
10	Spindle	Customized by RBT company
11	Dimensions	L3400*W2290*H1870mm
12	Voltage	380V
13	Total power	14.2KW
14	Programming time	About 2 hours (depending on the programmer's proficiency)
15	Call the saved toolpath time again	About 10 minutes (depending on the programmer's operational proficiency)
16	Programming mode	,Manual teaching or offline programming, can be copied and applied
17	Storage path memory	512M/ expandable support U disk read processing
18	Processing mode	Can process all holes and any line of luggage
19	Lubrication system	Automatic refueling
20	X-axis effective stroke	2*1255mm /2*850mm
21	Y-axis effective stroke	1220mm /700mm
22	Z-axis effective stroke	485mm /210mm
23	C-axis effective stroke	±540°
24	B-axis effective stroke	±130°
25	Machine tool repeatability	±0.05mm
26	X/Y axis maximum speed	45000mm/min
27	Z axis maximum speed	28000mm/min

Cooperation customers: RIMOWA, Samsonite, American Tourister, Delsey, Antler, Tumi, VIP, IT,etc.,
Machine Features:
1. Computer controlled three dimension cutting, which can process all the luggage holes and any parts of luggage
2.Two separate cutting work platform, while replacing the processed products maintaining stable, security greatly enhanced and greatly reducing the labor intensity of workers .
3.The machine storing path can be copied and used in any machine.
4. Automatic door completely closed design ( optional ), keeping the site clean and effectively reducing noise at the scene. The machine has the upgraded connection of automatic loading and unloading material, to implementation of unmannded and automatic mode.
5. providing the manual instruction and off-line programme cutting way, easy learn and easy understand, we can reuse the cutting programme, changing different luggages just only need 10 mins.
Scope of application:
suitable for trimming and punching of trolley cases such as PC, PC/ABS, ABS, PE, etc.
Application industry:
Luggage industry
PACKING & DELIVERY
1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2.Shipping : Container transport.

FAQ
Q1. Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q2. Are you produce polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing which client want to produce or the spare parts.
Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How is your development ability?
A: We have a strong engineer team to support the drawing, technology proposal, test and certification; We can customize the machine per customer requirement.
Q7: How about your after sales service?
A:We will arrange our technical staffs to your factory to install machine and teach you how to operate it. During the current special period, we will offer all support online via video 24h per day. Before shipment, we will test machine from and then send all videos from installation to production for customers. Full set of manual and instruction in English will be sent with machine together.
