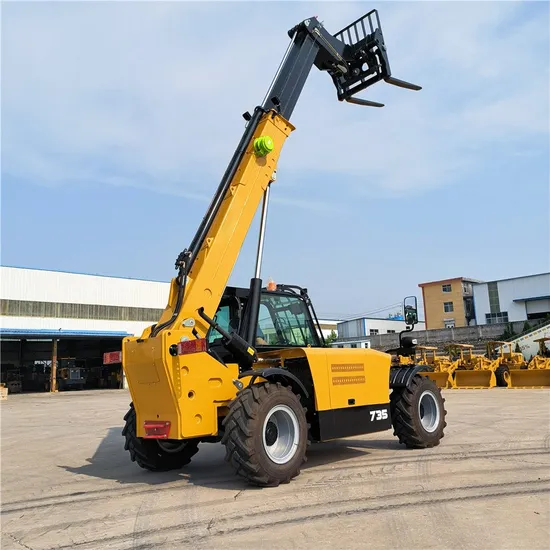

Hydraulic Telehandler Boom Forklift 4X4 All Terrain Telescopic Forklift Diesel
| US$8,000.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Load Capacity
1T - 5T
Fuel
Diesel
Load center
500mm
Lift height
3000~5000mm
Condition
New
Item
Rough Terrain Forklift
Item No
Yn735
Standard Lift Height
4000mm
Dimensions (Lxwxh)
5230X2200X2300
Voltage
24V
Capacity
100ah
Max. Torque N.M/
235/1600n.M/R/Min
Rated Power/Speed
53/2400
Ground Clearance
270mm
Service Weight
8300kg
Transport Package
Seaworthy Packing
Specification
CE, SGS, ISO
Trademark
SHYTGER
Origin
Shanghai, China
HS Code
84272090
Production Capacity
3000units/Year
Product Description
Hydraulic Telehandler Boom Forklift 4x4 All Terrain Telescopic Forklift Diesel| Product parameters | |
| ENGINE | |
| Model | YN735 |
| Rated power | 77.3kw |
| Type | Four stroke,diesel engine |
| Cooling type | water cooling |
| PERFORMANCE | |
| Max.lifting capacity | 3500kg |
| Max. Lifting Capacity at max reach | 3000kg |
| Capacity at max boom extension | 1250kg |
| Max lifting height | 7000mm |
| Max. Horizontal boom extension | 3380mm |
| Grade-ability | 30% |
| Machine weight | 8300kg |
| Max Speed | 36km/h |
| DIFFERENTIAL-AXLES | |
| Axle | |
| Driving model | 4WS;Crab steering;2WS |
| Front axle | Rigid |
| Rear axle | Oscillating |
| Moving Brake | Servise air brake on the 4 wheels with double hydraulic system |
| HYDRAULIC SYSTEM | |
| Parking Brake | Negative parking brake |
| Tires | 16/70-20 |
| DIMENSIONS | |
| Length | 5230mm |
| Height | 2300mm |
| Width | 2200mm |
| Shaft distance | 2800mm |
Shipment & Payment:
1.T/T(100% T/T,30% deposit for production, 70% balance of settlement for shipment)
2.L/C(100% L/C)
3.Shipment time:15-20 days after received the 70% balance.
FAQ:
1.Does the forklift engine can be changed?
Yes,Chinese or Japan brand engine are available here.
2.Does the color can be customized?
Yes,all color are available.
3.What kinds of forklift you can supply?
Diesel,gasoline,LPG dual fuel,electric power are available.
