5 Gallon Bottled Water Automatic Bottling Plant

Product Description

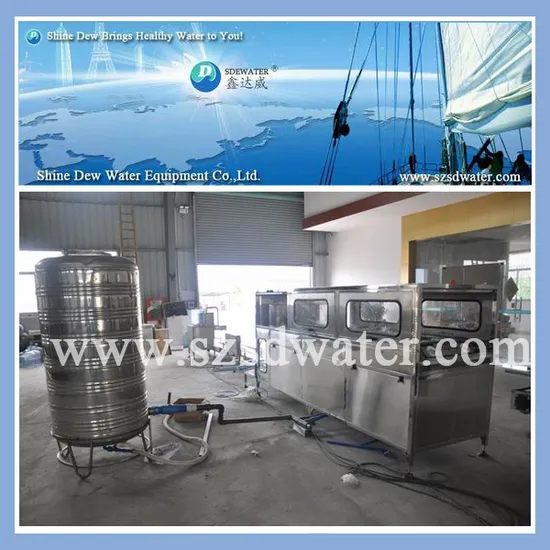

5 Gallon Bottled Water automatic Bottling Plant
5 gallon bottle water filling machine Description

This water bottling plant is designed for 5 gallon bottled water, with the capacity of 60-300 bottles per hour. It combines washing filling and capping function together. And totally realise the automatic production of 5 gallon bottled water. The water filling machine can be also called automatic filling plant line, water filling machines and water bottle manufacturer.

Washing process of packing machine:
This water filling machine makes bottles on conveyor controlled by counting sensor and delivered to rinsing seats. Stop cylinder, ratchet and bottle clip work to upturn bottles 1800 C into rinsing seats, water pump starts to spray inside and then bottles return through the circle.

Filling process of filling machinery:
This water filling machinery makes bottles on conveyor controlled by counting sensor and delivered to filling seats, then up-loading cylinder works to lift bottles from conveyor and bottle clips make bottles fixed. Filling valve falls by pressure cylinder and filling pump works. Filling time, volume are set by PLC and can be adjusted by touch screen.
Technical Parameter

Spec. of water filling machine

No.	Item				Unit	Specification					Remarks
1	Bottle spe.		Volume		Gallon	5 gallon
			mouth dia.		mm	58
			Bottle Dia.		mm	270
			Bottle height		mm	550
2	Cap Spe.		cap dia.		mm	58
			cap height		mm	40
3	Filling Spe.		washing pressure		Mpa	0.15-0.2mpa
			air consumption		Mpa	0.7mpa
			filling pressure		Mpa	0.3mpa
			filling temperature		degree	0-5
			filling type		N/M	Pneumatic telescopic and Isobaric type filling
			capping type		N/M	crawler-type capping
4	Power		power		KW	7KW
			Voltage		V	380V 3PH 50HZ
5	Dimension		washing part		mm	L5300×W1300×D1600
			filling capping part		mm	L2500×W700×D1600
6	production speed		5 gallon		bph	150

Before Design the Proposal of water filling machine

1. We need you to advise us what kind of drinking water that you want to manufacture. Is it pure water, mineral water or beverage?

2. We need you to tell us the kind of your source water, and you need to provide us Source Water Testing Analysis Report.

3. Please tell us the production capacity of the machine that you demand, so that we can recommend the suitable machine to you and present quotation solution for you.

4. Please tell us the type of electric Voltage, Frequency in your country.


Corollary Equipment or Service May Used to Water Filling Machine

1. Reverse osmosis water purification equipment
2. Ultra filtration systems for mineral water and spring water
3. Auto water filling machines for 3/5 gallon bucket and small bottle (0.35-1.5L)
4. Packaging machines, like labeling machines and date printing machines
5. Bottle blowing machines for small PET bottles
6. Make budget for customers; building water treatment factories as per clients' request
7. Factory layout design, machine installation and adjustment and operation technology training

Company Overview

Shine Dew Water Equipment Co., Ltd. is a specialized manufacturer of drinking water treatment equipment, auto bottling machines, labeling machines and other auxiliary equipment, with more than years of experience in China. We have exported our machines to Central and South America, Africa, the Middle East and Southeast Asia. Furthermore, we have completed many turnkey projects of water treatment factories for our customers from the above-mentioned regions. Moreover, we can also provide turnkey services for water bottling plants and beverage production plants.

Our goal is to assist our customers to provide healthy water for human beings. We sincerely hope to develop together with our customers in the field of water treatment industry. We welcome your contact via email, telephone and fax. We will always do our best to serve you.
