P4-P30 Indoor Outdoor Flexible Transparent Display Crystal Film Screen

Product Description

Crystal film screen features:
1. Thin and light
The screen is light in weight and does not put pressure on the glass.
Thickness: about 3mm , weight 3kg/ square meter
2. Transparency
The structure is extremely simple, with high transparency, which does not affect the lighting of the glass curtain wall, and the transparency is as high as over 90 %.
3. High flexibility
The maximum single box size can reach 1000mm*240mm, and the brightness can reach more than 4500CD/M2
The maximum length of a single glass piece is 3 meters, and it can be customized without a power box in the middle.
Can be bent and cut, not limited by size, can be flexibly designed according to customer needs Strong flexibility, can be attached to glass/wall of any curvature
4. Easy to install
Easy to install, just stick it on the glass surface and connect the signal and power.
5. Wide viewing angle
The field of view is up to 140 degrees, with no blind spots or color cast, and the image is always seamless.
6. Cost savings
The product installation does not require additional steel frame structure, does not need to change the appearance of the auxiliary building, and effectively reduces Transportation and installation
Compared with conventional transparent screens: Advantages of crystal film screens
Material PET conductive base film
Invisible line (transparent)
Visible line width 30 μm Light transmittance ≥ 95% ( P10 ) The thinnest lines on the market are generally 80 μm, and ordinary lines are generally 150 μm.

Product Specifications	P4	P4-8	P6	P8	P10
Pixel pitch	4mm*4mm ( x*y )	4mm*8mm ( x*y )	6mm*6mm ( x*y )	8mm*8mm ( x*y )	10mm*10mm ( x*y )
Pixels	62500 points / m2	31250 points /m2	27556 points / m2	15625 points / m2	10000 points / m2
Lamp beads specifications	SMD1010 (lamp driver integrated)	SMD1010 (lamp driver integrated)	SMD2121 (lamp driver in one)	SMD2121 (lamp driver in one)	SMD2121 (lamp driver in one)
Pixel composition	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Module size	800mm*240mm	1000mm*240mm	1000mm*240mm	1000mm*240mm	1000mm*240mm
Module resolution	200*60	250*30	166*40	125*30	100*24
Pixel resolution	250*250/ m2	250*125/ m2	166*166/ m2	125*125/ m2	100*100/ m2
Transmission rate	≥85%	≥85%	≥85%	≥85%	≥90%
Cabinet wiring method	Internal cable routing (clean back)	Internal cable routing (clean back)	Internal cable routing (clean back)	Internal cable routing (clean back)	Internal cable routing (clean back)
weight	≤3.5KG/ m2	≤3.5KG/ m2	≤3.5KG/ m2	≤3.5KG/ m2	≤3.5KG/ m2
White balance brightness	≥3000cd/ m2	≥3000cd/ m2	≥3000cd/ m2	≥3500cd/ m2	≥3500cd/ m2
Peak power consumption	400 W/ m2	400 W/ m2	400 W/ m2	400 W/ m2	400 W/ m2
Average power consumption	About 200 W/ (depending on the video source)
Refresh rate	IC CHN168 ≥8000
Grayscale	16Bit	16Bit	16Bit	16Bit	16Bit
Brightness control level	Level 0-255	Level 0-255	Level 0-255	Level 0-255	Level 0-255
Color Temperature	3200K-8500K (adjustable)	3200K-8500K (adjustable)	3200K-8500K (adjustable)	3200K-8500K (adjustable)	3200K-8500K (adjustable)
Frame rate	≥60Hz	≥60Hz	≥60Hz	≥60Hz	≥60Hz
Viewing Angle	H-H140 degrees V-V140 degrees	H-H140 degrees V-V140 degrees	H-H140 degrees V-V140 degrees	H-H140 degrees V-V140 degrees	H-H140 degrees V-V140 degrees
Input signal	DVI\VGA , composite video	DVI\VGA , composite video	DVI\VGA , composite video	DVI\VGA , composite video	DVI\VGA , composite video
Screen control method	Or synchronous box (computer control screen) or asynchronous box ( WiFi connection mobile phone APP control screen, U disk control screen)
Protection level	IP30	IP30	IP30	IP30	IP30
Power supply requirements	AC 220V ±10% , 50-60Hz , (optional wide voltage 110V and 9~36V )
Operating temperature	-20 to 50 degrees Celsius	-20 to 50 degrees Celsius	-20 to 50 degrees Celsius	-20 to 50 degrees Celsius	-20 to 50 degrees Celsius
Theoretical service life	100,000 hours	100,000 hours	100,000 hours	100,000 hours	100,000 hours

Crystal film screen products (point control)

	Common parameters	Our company features	Advantages	Control method
Lamp bead withstand voltage	5V	3.8V-15V	When the current is unstable, the lamp bead is stable	The tender document reflects the on-site preparation of 15v power supply test
Grayscale	8BIT to 16BIT	16BIT	Good video effect	Field testing of high grayscale photos and videos
Line Width	Visible line 150μm	Invisible Line 30 μm	Excellent light transmittance	On-site comparison
Lamp bead size	1515/2121	1010/2121	Small lamp beads with high light transmittance	Lamp bead size 1010 lamp bead
Connectors	Conventional connector	Imported FCI highdensity connectors	High stability Multiple plugging and unplugging without defects	Field testing
Lamp bead thrust	Under 1.5 kg	Over 3 kg	Solid pad High stability	Provide sample field test data On-site sampling test during inspection
Line Adhesion	Failed to pass the hundred grid test	Pass the hundred grid test	Install transportation maintain The line is not easily damaged	Data Detection

Key points of crystal film screen customization

	width	high	Cost increase
P4	Maximum 1000mm 3000CD	240mm Customization is not supported yet	Width customization 20% within 10m² 10% for 10m² and above No increase for more than 30m² Highly customizable A non-standard size increase 10000 NTD
P4-8	Maximum 1000mm 3000CD
P6	Maximum length: 1300mm 4000CD
P8	Maximum 1500mm 3000CD	240mm Can be customized in units of 48mm
P10 and above	Maximum 1500mm 3001CD	Can be customized in units of 60mm 240-60mm and 480-60mm can be combined 240-60 cannot be spelled alone

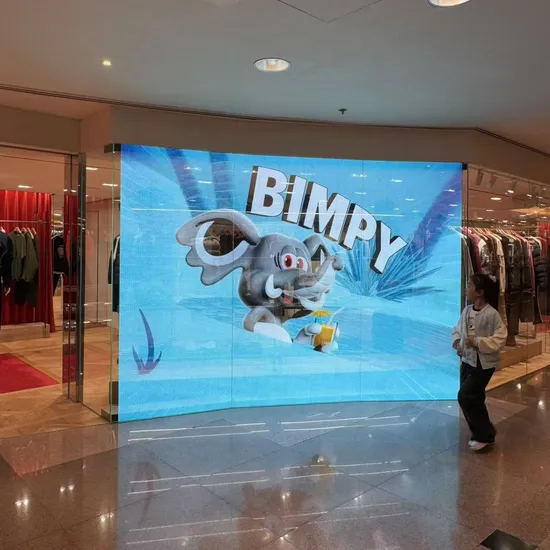

Application range of crystal film screen
Company profile:
We are an original factory in Shenzhen with 9 years experience. There are professional developed engineers, experienced sales engineers, and skillful workers. We can provide all the accessories and software for a whole project. Including, sending cards, video processor, software, flight case, power box, power cable, data cable, module mask, etc. We are professional in designing and manufacturing high-end LED display screen.
1. If you want to develop a new design LED screen, please contact us. We can help you.
2. If you have a new project/order but don't know how to process it, please contact us. We can help provide the best solutions/scheme, and guide you.
3. If you are searching for alternative suppliers, please contact us. We are professional.
FAQ
Q1. Are you a trading company or manufacturer?
A: We are an original LED display manufacturer.
Q2. Is the product customizable?
A: No, this series product only support 500mm*1000mm, 500mm*500mm.
Q3: How can you ensure your LED display product quality?
A: We have professional R&D team and skilled QC team with standard process to assure quality products, and we 100% do aging test and water-proof test before delivery. We also offer 2 years warranty for our products.
Q4. How about your delivery time?
A: Generally, it will take 20 to 28 days after receiving advance payment.
Q5. Is it OK to print my logo on LED screens?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. What are your payment terms and trade terms?
A: Paryment terms: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Trade terms: EXW, FOB, CIF, DDP, DDU, will follow your requiement.
Terms: 1. Production time for 0-200 m² LED screen is about 25 days. (Including aging test).
2. Payment term: T/T, 30% in advance and 70% before shipping.
3. Trade term: FOB Shenzhen, CIF, DDU, DDP.
4. Plywood case or flight case provided.
Our products have passed through CE, CE-EMC Class-A/B, RoHS, ETL, ISO9001:2015, FCC and BIS.
