CNC and Conventional Vertical Lathe Machine/Vtl Vertical Lathe
Basic Info.
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
Artificial
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Vertical Lathe
Vertical Lathe Machine/Vtl Vertical Lathe
Vtl
Vertical Lathe Machine
CNC Vertical Lathe
CNC Vertical Lathe Machine
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 1700*2100*2600
Trademark
DRC
Origin
China
Production Capacity
500
Product Description

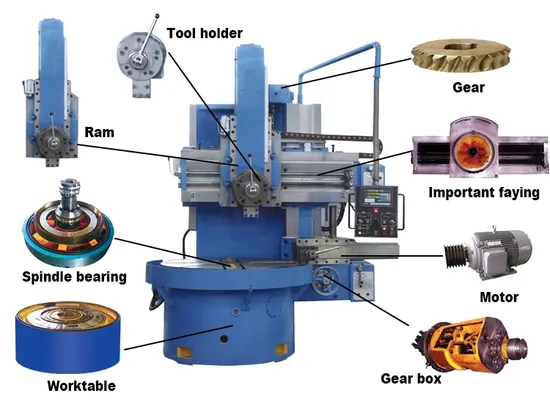

cnc and conventional vertical lathe machine/vtl vertical latheHeavy Duty large vertical turret lathe Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, cone surface and face, cutting, cutting, etc. Of coarse and fine turning processing. Workbench using hydrostatic guideway, main shaft adopt high precision NN30 type (D) double row cylindrical roller bearing, thus workbench large carrying capacity, high rotary precision. Machine tool electric using domestic brand-name products, high reliability. Machine is made of high qualified epc process, high quality, the annealing aging treatment, appearance beautiful, durable, good agreeableness, convenient operation and maintenance. High cost performance; hanging button station, electric cabinet and bed integrated design; quenched beam, quenched T-shaped ram (five-hole turret); beam closed protection, automatic lubrication of all lubrication parts. With constant line speed turning and threading.
| Name | Unit | CK518 |
| Max. turning diameter of vertical tool post | mm | 800 |
| Max. turning diameter of workpiece | mm | 700 |
| Diameter of worktable | mm | 800 |
| The artifact max. height | mm | 800 |
| Max. weight of the workpiece | T | 1.5T |
| Number of shift stages of work table | Stepless | Stepless |
| Variable speed range of work table | rpm | 30-260 |
| Feed level | Stepless | Stepless |
| Feed range | mm/min | 0.25-90 |
| Tool post stroke level | mm | 500 |
| Tool post stroke Vertical | mm | 450 |
| Beam tirp | mm | 500 |
| Lateral movement speed of tool post | mm/min | 2000 |
| Longitudinal moving speed of tool post | mm/min | 1500 |
| Max. turning angle of tool post | ° | ±30° |
| Tool square size (width×height) | mm | 30×40 |
| Main motor power | kw | 11 |
| Machine size (length×width×height) | mm | 1700×2100×2600 |
| Machine weight | (about)kg | 5000 |
