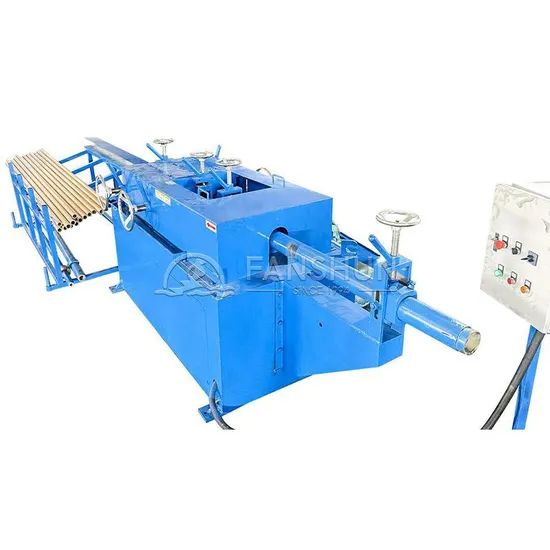

Wsl-60 Straightening Machine for Processing Brass/Bronze/Red Copper/Aluminum Pipe Bars and Metal Bars

Product Description

-- STRAIGHTENING MACHINE --
This machine is used for fine straightening of brass pipe rods, bronze pipe rods, aluminum pipe rods, copper pipe rods and other metal pipe rods.
-- STANDARD SIZES --
Detailed parameters of the equipment

Model	unit	WSL-20	WSL-40	WSL-60	WSL-100
Diameter	mm	Φ5-20	Φ10-40	Φ15-60	Φ30-100
Straighten length	m	1.5-5
Ruducer	/	JZQ200	JZQ250	JZQ350	JZQ400
Motor power	kw	4.5/5.5	6.5/8	9/11	18.5/22
Straighten speed	m/min	20-25	15-23	10-18	6-10
Host size(L*W*H)	mm	2150*1100*1000	2450*1400*1150	2175*1500*1200	2900*2340*1500
Host weight	kg	1000	1300	2100	3500
Unloading rack size(L*W*H)	mm	2000*1100*840	2000*1100*840	2000*1100*890	2800*1600*1600

-- EFFECT COMPARISON --
Product comparison before and after straightening

-- OPERATING PROCEDURES --
Slow gear test machine, Fast gear production
Press the switch, put the bar, adjust the pressure roller, adjust the unloading rack
-- EQUIPMENT DETAILS --
Detailed display of the product
Straightening machine is a device for straightening metal profiles, bars, pipes, wires, etc. The straightening machine presses the bar and the like through the straightening roller to change its straightness. Generally, there are two rows of straightening rollers, with varying numbers. There are also two roller straighteners that use the angle changes of two rollers (concave in the middle, hyperbolic roller) to straighten materials with different diameters
-- EQUIPMENT SHIPMENT --
Ships three or four times a week on average

-- INSTALLATION & COMMISSIONING --
Provide professional technicians for overseas debugging

-- SUCCESS CASE --
Complete production line

-- FANSHUN TEAM --
About Foshan Fanshun Machinery Co., Ltd.
FanShun Machinery Foshan Fanshun Machinery Co., Ltd (Original factory name: Fanshun Hardware Machinery Factory) was founded in 1994 and is located in Guangzhou Nanhai, Foshan City, the Pearl River Delta, Eastern Province Zone, the factory area of the enterprise is 6000 square meters
Mi, with various new mechanical processing equipment R&D and production of copper casting machinery More than twenty years of spare parts. The company has always been innovative Efficient, energy-saving, and safe use of machinery As an important indicator of mechanical equipment production Can provide professional services according to customer needs To provide customers with a comprehensive solution From plant resource allocation to machinery purchase and installation Installation, debugging, and equipment use production tutorial And other services.
