Chrome Plated Linear Motion Guide for 3D Printer Applications

Product Description

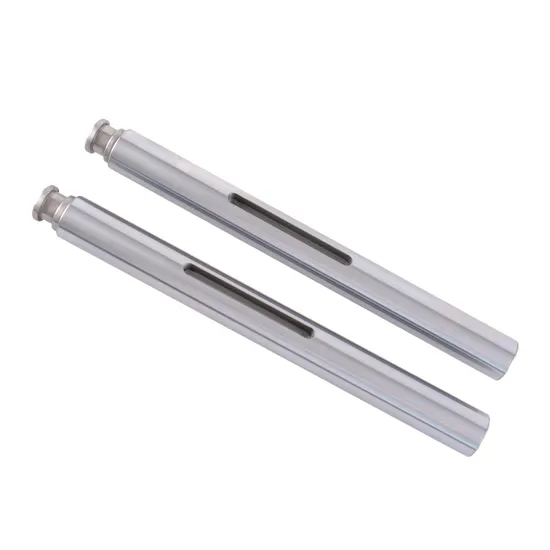

Product Description: Introducing the superior Cylinder Chrome Plated Linear Rail Round Rod Optical Axis, an indispensable element for CNC and 3D Printer Parts. This remarkable component boasts a meticulously crafted 6mm Linear Shaft, engineered to deliver unparalleled performance. Elevate your machinery with precision and reliability.
Material: Impeccably crafted from sturdy C45 Steel, adorned with a magnificent Chrome Plated finish, guaranteeing exceptional longevity and formidable resilience.
Shaft Diameter: A meticulous 6mm, ensuring optimal compatibility and seamless functionality.
Shaft Length: Available in an adaptable array of lengths: from 100mm to 1000mm, extending impressively to 2000mm and 3000mm, perfectly catering to a vast spectrum of application needs.
Product Description Our Linear shaft is not only chrome plated but alsoinduction hardened, precision ground, and polished to perfection, fulfilling the rigorous tolerances demanded by the linear motion industry. This shaft excels when paired with linear support blocks and closed-type slide units, ideal for linear motion applications. Crafted from high-carbon steel with superior chrome plating, it delivers unbeatable corrosion resistance. Case hardening enhances wear resistance, and precision grinding ensures consistent ball bushing radial clearance. Adapted to precise diameter and length specifications, it is perfect for measuring systems, printing equipment, and CNC tools.
Features 1. Exquisite Finish and Straightness: Achieves a breathtakingly flawless surface through specialized grinding and mirror polishing treatments, resulting in a smooth, crack-free finish.
2. Corrosion Resistance: Fortified with a luxurious surface chrome plating layer of 10um-20um.
3.Unmatched Durability and Resistance: Adopts high-grade C45 steel, renowned for its high-frequencyhardness degree of HRC60 ~ 64, ensuring extraordinary resilience and strength.
4. Precision Accuracy: G6 precision with a diameter tolerance from -0.005mm to -0.27mm; Length tolerance varies gracefully by size: +/-0.5mm (1M-3M); +/-1mm (3M-6M).
5. Seamless Installation: Chamfered ends offer effortless installation for linear bearings and ensure optimal user safety.
Product Description

Model	D10/12/13/16/20/25/30/35/40/50/60/80/100	characteristic	Corrosion prevention, heat resistance, and wear resistance
authentication	ISO9001	warranty	1year
maximum length	6M	Stroke	100mm-800mm
maximum speed	250mm/s-1000mm/s	repeatability	+/-0.02mm
Direction of movement	Exposed/Below/Right/Left	Operating mode	moving
sensor	Internal/External/No Sensors	Body size	75mm
Applicable industries:	CNC machinery, medical food machinery, fitness machinery, packaging machinery, printing machinery and other mechanical supporting equipment	trademark	Collaborative customization
producer	zhejiang china	HS Code	848640290

Production Machinery: Our state-of-the-art manufacturing facilities are equipped with cutting-edge machinery that ensures each Chrome Plated Linear Motion Guide is produced with the utmost precision and quality assurance, setting new standards in the industry.
Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition

Sawing Machine	Ningbo Feiyan	1	3	acceptable
CNC Lathe	Taizhou seismic ring	10	5	acceptable
CNC Machining Center	GFOSGCNC	12	4	acceptable
CNC punching center	MY137	2	4	acceptable
Grinding Machine	MW1420B	5	4	acceptable
Laser Marking Machine	DAPENG	1	3	acceptable

Testing Machinery: Rigorous testing processes are conducted using advanced testing machinery to validate the performance and durability of each guide, guaranteeing it meets the high expectations of our valued clients.
Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition

Three-coordinates measuring machine	Confidential	1	1	acceptable
Quadratic Element Projector	4025	1	3	acceptable
Surface Roughness Tester	Mitutoyo & SJ-28	1	3	acceptable
Yaw Measuring Instrument	N/A	2	4	acceptable
Thickness Tester	Mitutoyo	1	3	acceptable
Altimeter	Mitutoyo	1	3	acceptable
Digital caliper	Mitutoyo	15	3	acceptable
Micrometer	Mitutoyo	15	3	acceptable
Hardness Tester	WEIYI	1	3	acceptable

Material: Constructed from high-grade bearing steel, renowned for its exceptional durability and strength, our product promises long-lasting performance even under the most demanding conditions.
Structure: Meticulously engineered for optimal rotational motion, this structure is the cornerstone of efficient and smooth operations across a multitude of applications.
Characteristic: Our product stands out with its distinctive features, ensuring it remains a leader in the field of linear motion technology.
Lightweight yet cost-effective: By balancing lightweight design with cost efficiency, our guides offer an attractive proposition without compromising on quality or performance.
Simplified system installation and maintenance: Designed for ease of use, our guides simplify both installation and ongoing maintenance, allowing for seamless integration and sustained operation.
Superior dust prevention for enhanced performance: Enhanced dust prevention mechanisms are integrated to maintain superior performance, ensuring reliable operation in various environments.
Featuring high precision, efficiency, and reliability for diverse applications: Our guides are synonymous with high precision, efficiency, and unmatched reliability, making them the ideal choice for a wide range of applications.
Applicable to: Our Chrome Plated Linear Motion Guide is versatile and can be effectively utilized in a variety of sophisticated and industrial applications.
1. Automatic control systems: Perfectly suited for seamless integration into advanced automatic control systems, enhancing functionality and performance.
2. Semiconductor industry: An essential component for the semiconductor industry, facilitating precision and high-performance operations.
3. General industrial machinery: Offers robustness and reliability for a wide array of general industrial machinery applications.
4. Medical equipment: Ensures precision and reliability essential for the demanding standards of medical equipment.
5. Solar technology equipment: Integrates efficiently within solar technology systems, contributing to sustainable energy solutions.
6. Machine tools: Enhances the functionality of machine tools, providing stability and precision for high-quality manufacturing.
7. Advanced parking systems: Supports the development and efficiency of advanced parking systems, contributing to modern infrastructure.
8. High-speed railway and air transportation equipment, among others: Ideal for integration into high-speed railway and air transportation systems, as well as a host of other advanced applications.
