Pet Blowing Machine 6cavity with Low Power, High Speed, New Design

Product Description

New Generation PET Bottle Blowing Machine
I. Each Year, We Guarantee Your Bottle Making Factory:
1) Output increased by 50%
2) Waste bottle rate below 0.3%
3) 20,000USD saved by power consumption
4) blowing machine maintain cost below 800USD
High speed 6cavity 9000-10000BPH PET bottle blow molding machine
Specifications
1.Model: FG-6
2.Capacity:9000-10000B/H
3.Bottle type:200ml-2000ml
FG-6 PET bottle blowing machine

Main Parameter
Model		FG-6
Capacity		Depend on bottle design	9000-10000PCS/H(@500ml, 17g bottles)
Applicable Preform		Height	<330mm
		Neck	20mm-38mm
Applicable Bottle		Neck	20-25mm
		Volume	Max. 2Liter
		Height	Max. 328mm
		Diameter	Max. 105mm
Electric consumption		Install power	51kw
		Operating power	30kw
Air consumption		Pressure	3.0MPa
		Capacity	6m3/min
Mold Chiller		Pressure	4-6Bar
		Temperature	6-13ºC
		Flow	45L/min
Oven Chiller		Pressure	4-6Bar
		Temperature	6-13ºC
		Flow	26L/min
Machine Dimension		L*W*H	4300*1000*2300mm
		Weight	4000kg
Main electrics
Pneumatic part& Cylinder	Valve			Germany FESTO
Electric part	PLC			Japan Mitsubishi
	Servo System			Japan Panasonic
	Frequency inverter			Japan Mitsubishi
	Operating system			Japan Mitsubishi
	Touch screen			Japan Mitsubishi
Blowing	Valve			Japan Parker
One-way Valve				German FESTO
Throttle Valve				German FESTO
Reducing Valve				German DURAY
Note: All the electrical components adopts CE, UL, CCC approved international Advanced high-tech product

I. Brief Introduction:
FG4 is the new generation of linear blowing machine. Comnpared with traditional blowing machine, It has 3 improvement:
1)High speed: China first blowing machine whose single mold speed can reach 1800 BPH. FG4 has 4 cavities, production speed is 6500-7200BPH. FG6 has 6cavity, speed is 9000-10000bph. FG8 is 8cavity, speed is 12000-13000bph
2) Energy saving: It has only 2 lamp boxes( based on 4cavity), at least 20000USD can be saved per year, electrical ammeter is equipped, you can know how much every single bottle costs you.
3) High Reliability: Machine adopts modularized design principle, the movement is integrated in 3 sets servo motor, which promises this machine will have good condition under full load operation.

II. Technical Features:
1. Servo driving and cam linking movement blowing section:
The unique cam linking system integrates mold-opening, mold-locking and bottom mold-evevating in one movement, equipped with high speed servo motor, which greatly shortens the blowing cycle and accelerates the spped.

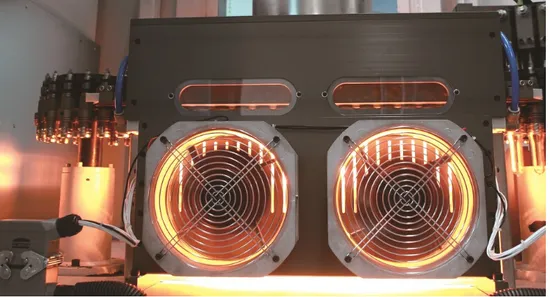

2. Minimize distance of heating heads,maximize the heating efficiency.
Heater distance in the heating oven is minimized to 38.1mm, compared with the conventional heating oven it can save more than 30% consumption.Equipped with the air cycling system and redundant heating discharge system it ensures constant temperature in the heating zone.
3. Efficient and soft perform inlet system,ensure the spped and preform protction.
By rotary and soft preform loading system, the speed of preform feeding is ensured, meanwhile, the preform neck is well protected.
4. Modularized design conception, convenient for maintenance and changing changeovers
The machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing changeovers.

III.After sale Services
1) Stand-by engineers team to provide overseas installation and commissioning service.
2) 1 year warranty. During warranty, we provide free of charge for repairing cost.
3) Lifetime maintenance. After-sales department can provide life long maintenance service.
Welcome to visit our factory !
