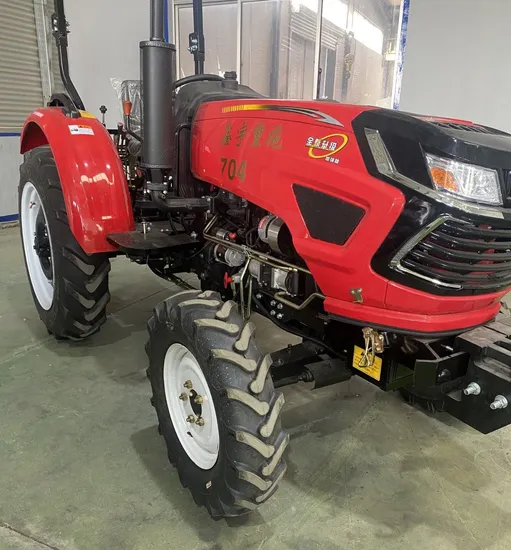

ODM 70HP 4WD Agricultural Wheel Tractor with Accessories

Product Description

4WD tractor configuration table
704 Middle drag	External dimension3.1*1.5*2.05 (length*width*height) wheel pitch is adjustable
The underlying configuration	8+8 Power output special gearbox, with shuttle shift
The engine	70 Horsepower
Tires	Rear wheel 11.2-28 front wheel 750-16
	rear two sets of hydraulic fast joint multi-way valve, with strong up and down
	After output 540-720
Weight of the whole machine	1600KG
	Height above ground 300

We have many models about the machine, if you are interested, we will send the catalogue and details for you, please send the enquiry.thanks.
YANTAI XINYU TRACTOR
#50HP #60HP #70HP #80HP #90HP #100HP #110HP #120HP #130HP ,
multifunction, reliable quality, affordable
Can be equipped with variety of agricultural tools for different farming works
Famous and high-quality engine, strengthen chassis, strong power
Power emission upgrade, more advanced performance, low fuel consumption, high reliability
Easy operation, few maintenance
Can design and produce the tractors in OEM

MODEL	XY- Middle tractor 50hp
Horsepower&Drive Type	50hp, 4×4
ENGINE
Engine Model	50HP
Type	Vertical, Water-Cooled, Four Strokes, Direct in Injection
Rated Output(kW)	36.8
TRACTOR PARAMETER
Dimension L*W*H (mm)	3100*1500*1970
Wheel Base (mm)	1900
Wheel Tread F/R(mm)	1060/1100
Min Ground Clearance(mm)	300
TRANSMISSION
Gear Shift	8F+2R
Clutch Type	Dry Single-stage
RUNNING SYSTEM
Tire F/R	600-12/9.5-16
Steering	Hydraulic Steering
Brake	Toe Type
Park Brake	Latch Pedal
WORKING SYSTEM
Hitch	Partial Separated Type, 3-Point hydraulic hitch,Category 1
Max. Lift Force(N)	≥6300
Rear PTO	Rear Rectangle Spline, 6 Teeth, 540/720rpm

Farm tractor diesel engine has simple and compact structure, manipulate, light weight, can be widely used for various field. like small farmland, vineyards, flower garden, greenhouse particularly ideal for mountainous field.
